Shure P3TR112GR PSM300 Wireless In-Ear Monitor System (G20 Band - 488-512 MHz)


  • Dale #:

    SHUR-P3TR112GRG20
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The P3TR112GR is part of the PSM 300 wireless systems family. Includes P3R receiver, P3T transmitter, and SE112 earphones. PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ul... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

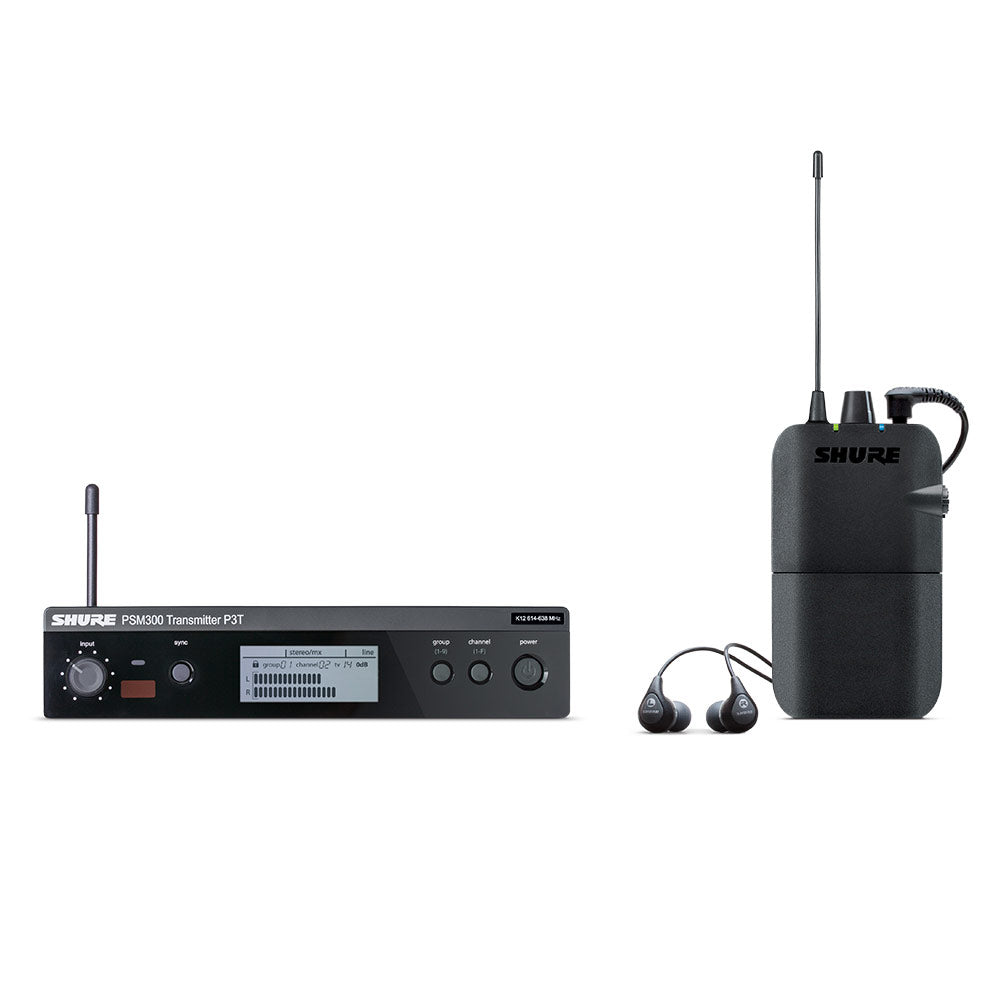

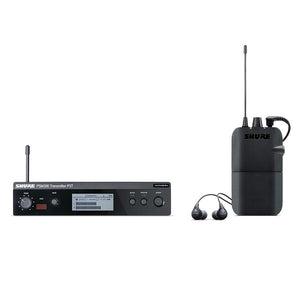

The P3TR112GR is part of the PSM 300 wireless systems family. Includes P3R receiver, P3T transmitter, and SE112 earphones.

PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.

Features:

  • 24-Bit digital audio provides clear, detailed sound
  • Up to 90 dB signal-to-noise ratio
  • Exceptionally wide stereo separation
  • Solid analog RF connection over a 300 ft (90 m) range
  • Half-rack, single-channel transmitter includes rackmount kit
  • P3R bodypack systems available with SE112 Sound Isolating Earphones

PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.

More +

Product Specs

RF Carrier Range 488–937.5 MHz
(Varies by region, see frequency range and output power table)
Compatible Frequencies Per band up to 15
Tuning Bandwidth 24 MHz maximum (Note: varies by region)
Operating Range
Environment dependent
90 m (300 ft)
Audio Frequency Response 38 Hz–15 kHz
Signal-to-Noise Ratio
A-weighted
90 dB (typical)
Total Harmonic Distortion
ref. ±34 kHz deviation @1 kHz
<0.5% (typical)
Companding Patented Shure Audio Reference Companding
Spurious Rejection
ref. 12 dB SINAD
>80 dB (typical)
Frequency Stability ±2.5 ppm
MPX Pilot Tone 19 kHz (±1 Hz)
Modulation FM*, MPX Stereo
(ref. ±34 kHz deviation @ 1 kHz)
Operating Temperature -18 °C (0 °F) to +63 °C (145 °F)
