Shure P3TR112GR PSM300 Wireless In-Ear Monitor System (H20 Band - 518-542 MHz)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SHUR-P3TR112GRH20

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

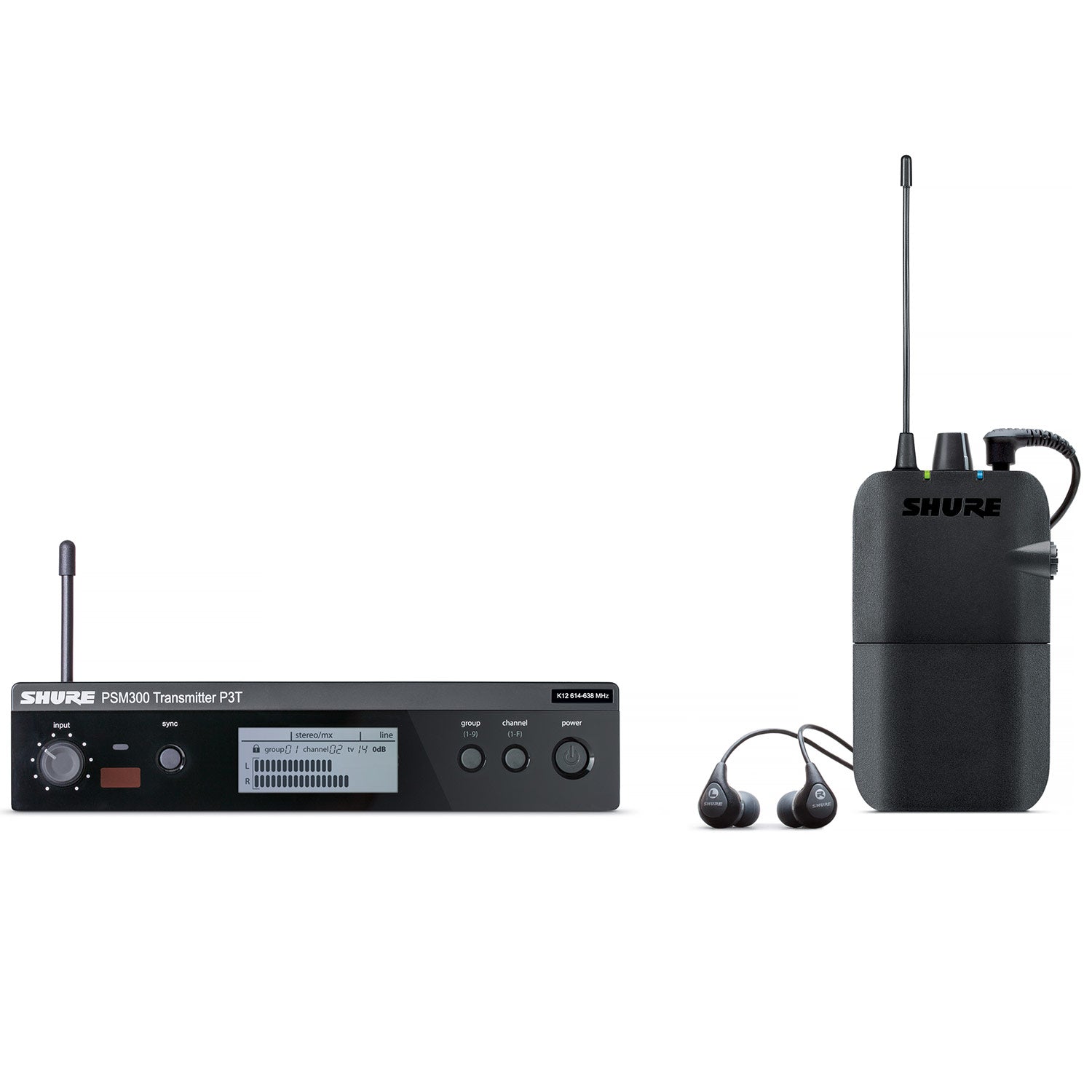

  • The P3TR112GR is part of the PSM 300 wireless systems family. Includes P3R receiver, P3T transmitter, and SE112 earphones.

    PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.

    Features:

    • 24-Bit digital audio provides clear, detailed sound
    • Up to 90 dB signal-to-noise ratio
    • Exceptionally wide stereo separation
    • Solid analog RF connection over a 300 ft (90 m) range
    • Half-rack, single-channel transmitter includes rackmount kit
    • P3R bodypack systems available with SE112 Sound Isolating Earphones

    PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.

  • RF Carrier Range 488–937.5 MHz
    (Varies by region, see frequency range and output power table)
    Compatible Frequencies Per band up to 15
    Tuning Bandwidth 24 MHz maximum (Note: varies by region)
    Operating Range
    Environment dependent
    90 m (300 ft)
    Audio Frequency Response 38 Hz–15 kHz
    Signal-to-Noise Ratio
    A-weighted
    90 dB (typical)
    Total Harmonic Distortion
    ref. ±34 kHz deviation @1 kHz
    <0.5% (typical)
    Companding Patented Shure Audio Reference Companding
    Spurious Rejection
    ref. 12 dB SINAD
    >80 dB (typical)
    Frequency Stability ±2.5 ppm
    MPX Pilot Tone 19 kHz (±1 Hz)
    Modulation FM*, MPX Stereo
    (ref. ±34 kHz deviation @ 1 kHz)
    Operating Temperature -18 °C (0 °F) to +63 °C (145 °F)
