Shure P3TRA215CL PSM300 Wireless In-Ear Monitor System (G20 Band - 488-512 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

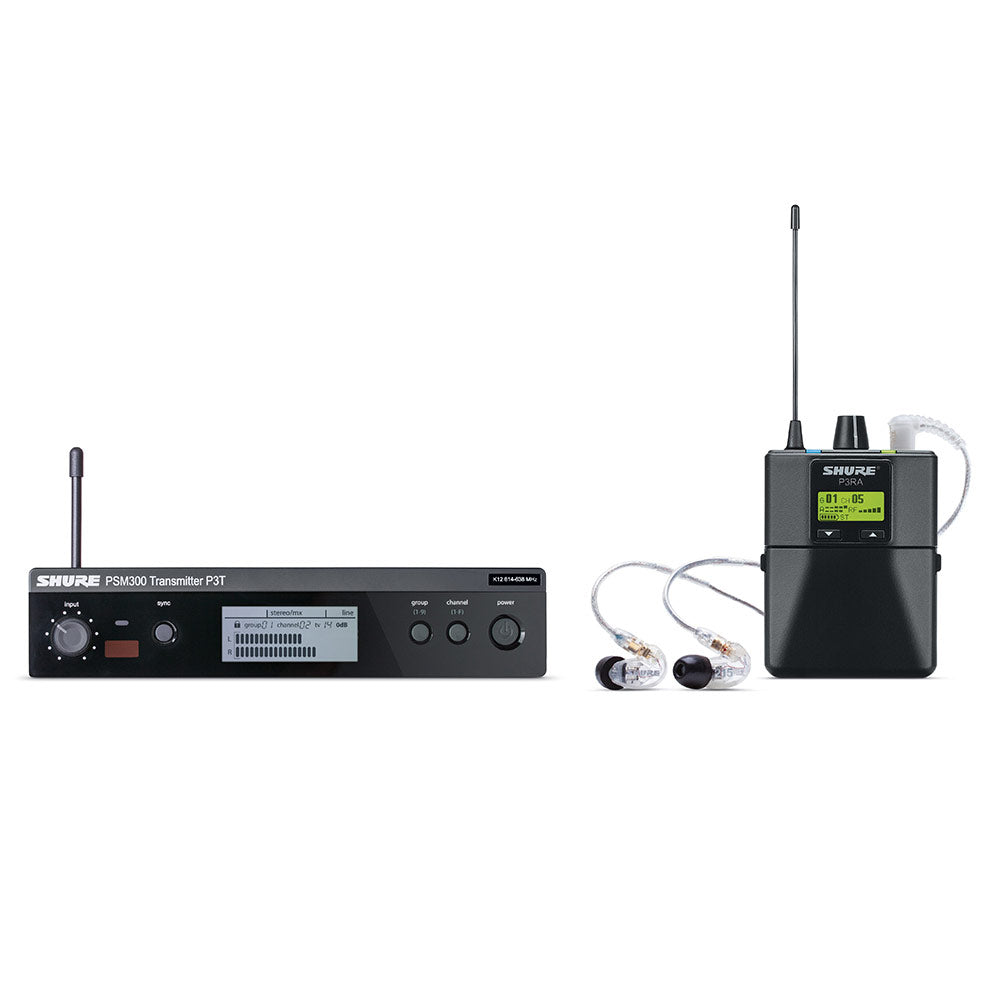

The P3TRA215CL is part of the PSM 300 wireless systems family. Includes P3RA receiver, P3T transmitter, and SE215 earphones.
PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.
Features:
- 24-Bit digital audio provides clear, detailed sound
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analog RF connection over a 300 ft (90 m) range
- Half-rack, single-channel transmitter includes rackmount kit
- P3RA professional bodypack systems available with SE215 Sound Isolating Earphones
PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.
| RF Carrier Range | 488Ð937.5 MHz (Varies by region, see frequency range and output power table) |
| Compatible Frequencies Per band | up to 15 |
| Tuning Bandwidth | 24 MHz maximum (Note: varies by region) |
| Operating Range Environment dependent | 90 m (300 ft) |
| Audio Frequency Response | 38 HzÐ15 kHz |
| Signal-to-Noise Ratio A-weighted | 90 dB (typical) |
| Total Harmonic Distortion ref. ±34 kHz deviation @1 kHz | <0.5% (typical) |
| Companding | Patented Shure Audio Reference Companding |
| Spurious Rejection ref. 12 dB SINAD | >80 dB (typical) |
| Frequency Stability | ±2.5 ppm |
| MPX Pilot Tone | 19 kHz (±1 Hz) |
| Modulation | FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz) |
| Operating Temperature | -18 ¡C (0 ¡F) to +63 ¡C (145 ¡F) |
The P3TRA215CL is part of the PSM 300 wireless systems family. Includes P3RA receiver, P3T transmitter, and SE215 earphones.
PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.
Features:
- 24-Bit digital audio provides clear, detailed sound
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analog RF connection over a 300 ft (90 m) range
- Half-rack, single-channel transmitter includes rackmount kit
- P3RA professional bodypack systems available with SE215 Sound Isolating Earphones
PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.
| RF Carrier Range | 488Ð937.5 MHz (Varies by region, see frequency range and output power table) |
| Compatible Frequencies Per band | up to 15 |
| Tuning Bandwidth | 24 MHz maximum (Note: varies by region) |
| Operating Range Environment dependent | 90 m (300 ft) |
| Audio Frequency Response | 38 HzÐ15 kHz |
| Signal-to-Noise Ratio A-weighted | 90 dB (typical) |
| Total Harmonic Distortion ref. ±34 kHz deviation @1 kHz | <0.5% (typical) |
| Companding | Patented Shure Audio Reference Companding |
| Spurious Rejection ref. 12 dB SINAD | >80 dB (typical) |
| Frequency Stability | ±2.5 ppm |
| MPX Pilot Tone | 19 kHz (±1 Hz) |
| Modulation | FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz) |
| Operating Temperature | -18 ¡C (0 ¡F) to +63 ¡C (145 ¡F) |
