Shure P9HW Wired Bodypack Receiver for PSM900 Monitor Systems



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SHUR-P9HW

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

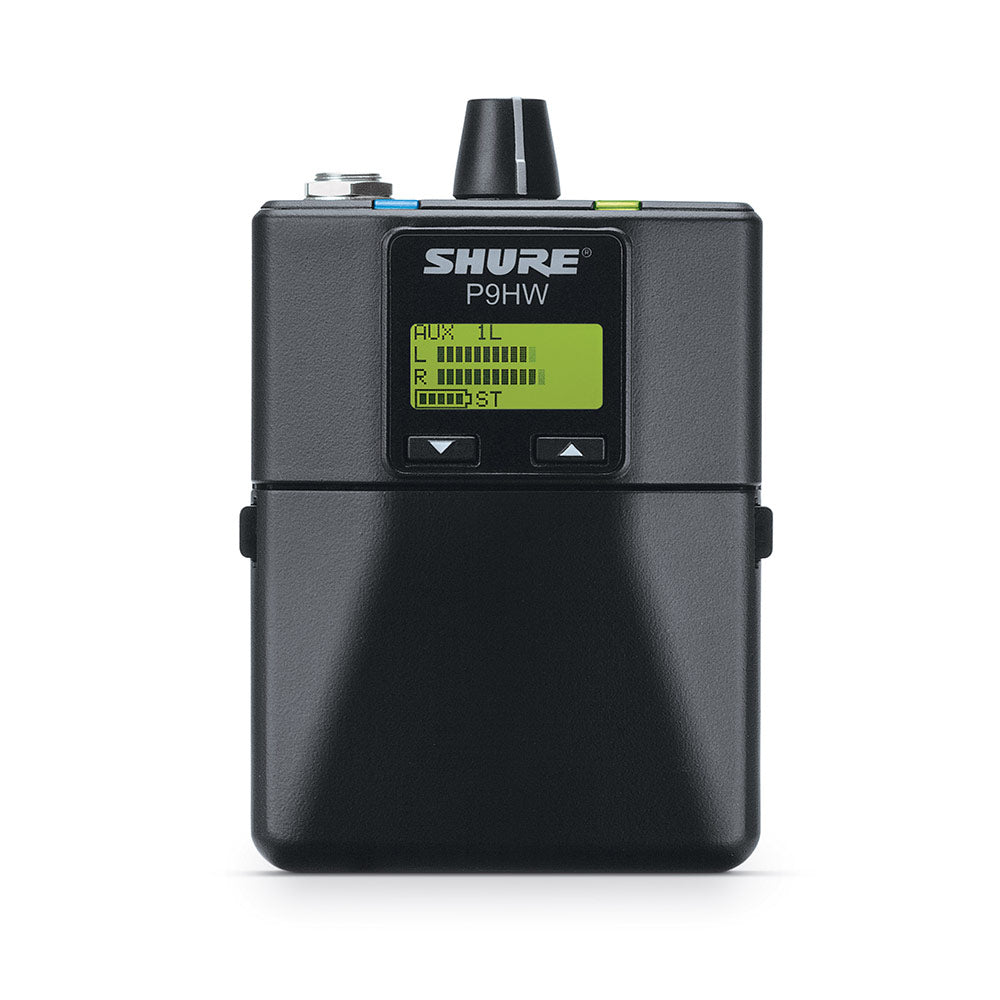

  • The P9HW is a wired, two-channel stereo personal monitor with individual mix controls. Listen to one or two channels of audio from the mixing console through earphones using MixMode technology to customize the mono blend. Stereo mode allows left / right balance adjustment for two mixes. Use the volume limiter to set the maximum volume adjustment range.

    P9HW is ideal for drummers and keyboard players who want the audio clarity and reduced feedback of in-ear monitors but don't need wireless mobility.

    Features:

    • Rugged, all-metal construction
    • LCD screen with menu-based navigation
    • Easy to adjust volume knob and mix control
    • 4-Band parametric EQ
    • Switchable line (+4 dBu) and aux (-10 dBV) input level
    • Power and battery status LED
    • 5-Segment battery life meter
    • Power-save mode and automatic power-off preserves battery life

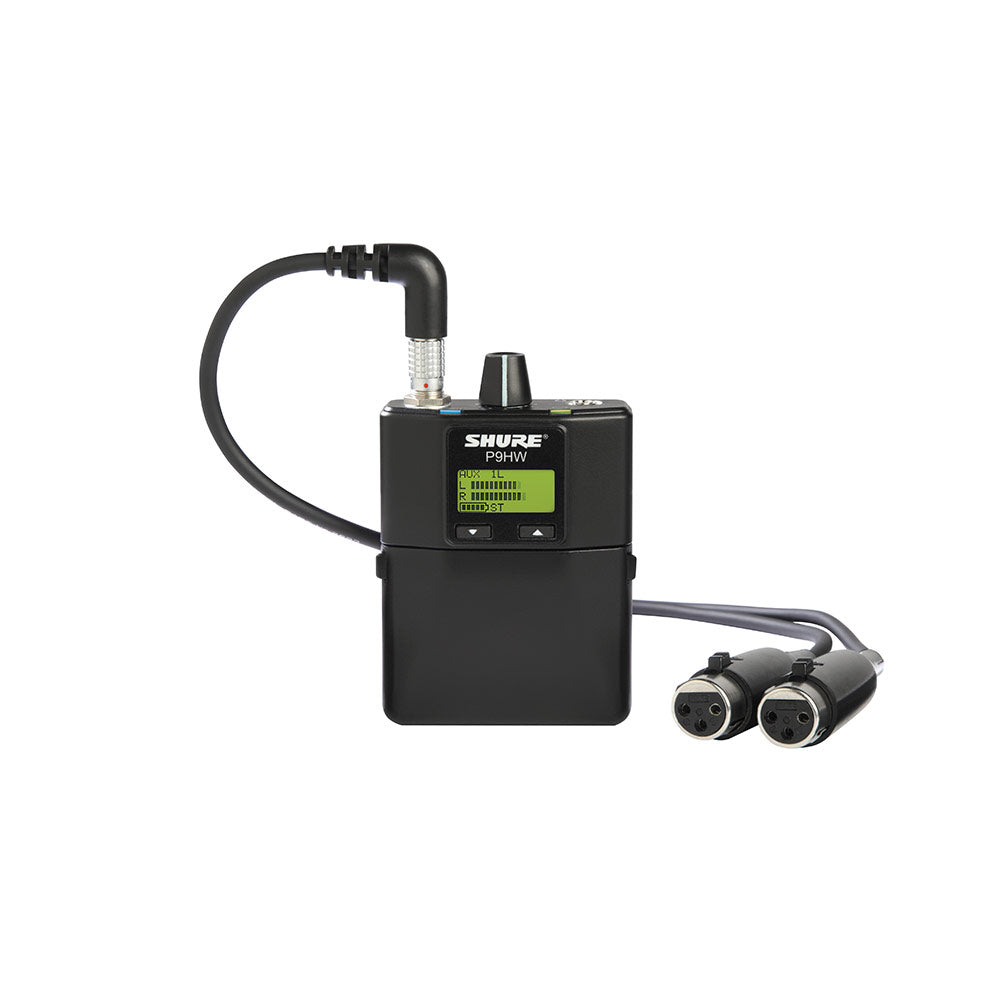

    The Shure P9HW is a wired, two-channel stereo personal monitor with individual mix controls. It delivers improved audio clarity and reduced feedback onstage versus traditional speaker wedges. Listen to one or two channels of audio from the mixing console through earphones, using MixMode technology to customize the mono blend or stereo mode to set the left/ right balance. A four-band EQ and volume limiting further individualize the sound. Two standard AA batteries provide up to 6 hours of continuous use. The optional SB900 rechargeable battery (sold separately) extends runtime and allows easy in-unit charging. With a compact and rugged aluminum body, the P9HW ensures a long lifetime of use and easily clips onto a belt or guitar strap. Y-splitter cable included for connection to audio sources.

  • Audio Frequency Response 20 Hz–20 kHz (±3 dB)
    Signal-To-Noise Ratio
    A-Weighted
    98 dB (typical)
    Total Harmonic Distortion @ 1 kHz, typical <0.2%
    Channel Separation @ 1 kHz >55 dB
    Operating Temperature -18 °C to +63 °C
    Minimum Load Impedance 9.5 Ω
    Dimensions 99 × 66 × 23 mm (3.9 in. × 2.6 in. × 0.9 in.) H × W × D
    Net Weight 196 g (6.9 oz) (with batteries)
    Battery Life 9 hours (continuous use) AA batteries
    Audio Input
    Connector Type LEMO
    Configuration Electronically balanced
    Impedance Line: 45 kΩ
    Aux: 66 kΩ
    Nominal Input Level Switchable: +4 dBu (Line), -10 dBV (Aux)
    Maximum Input Level +4 dBu (Line): +22 dBu
    -10 dBV (Aux): +12.2 dBu
    Phantom Power Protection Up to 60 V DC
    Audio Output Connector Type 3.5 mm (1/8")
