Shure P9T - Wireless Transmitter for PSM900 Systems (L6 Band / 656 - 692 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This frequency band cannot be used in the United States or Canada.

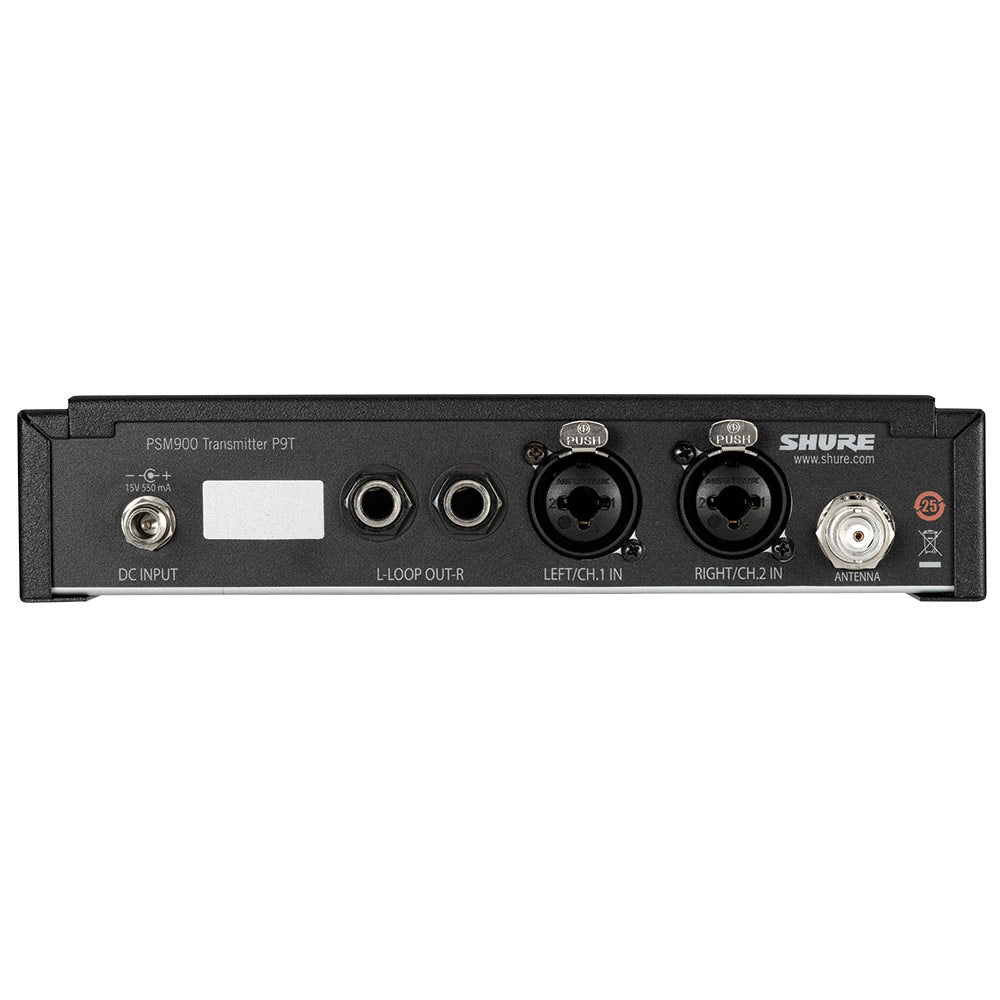

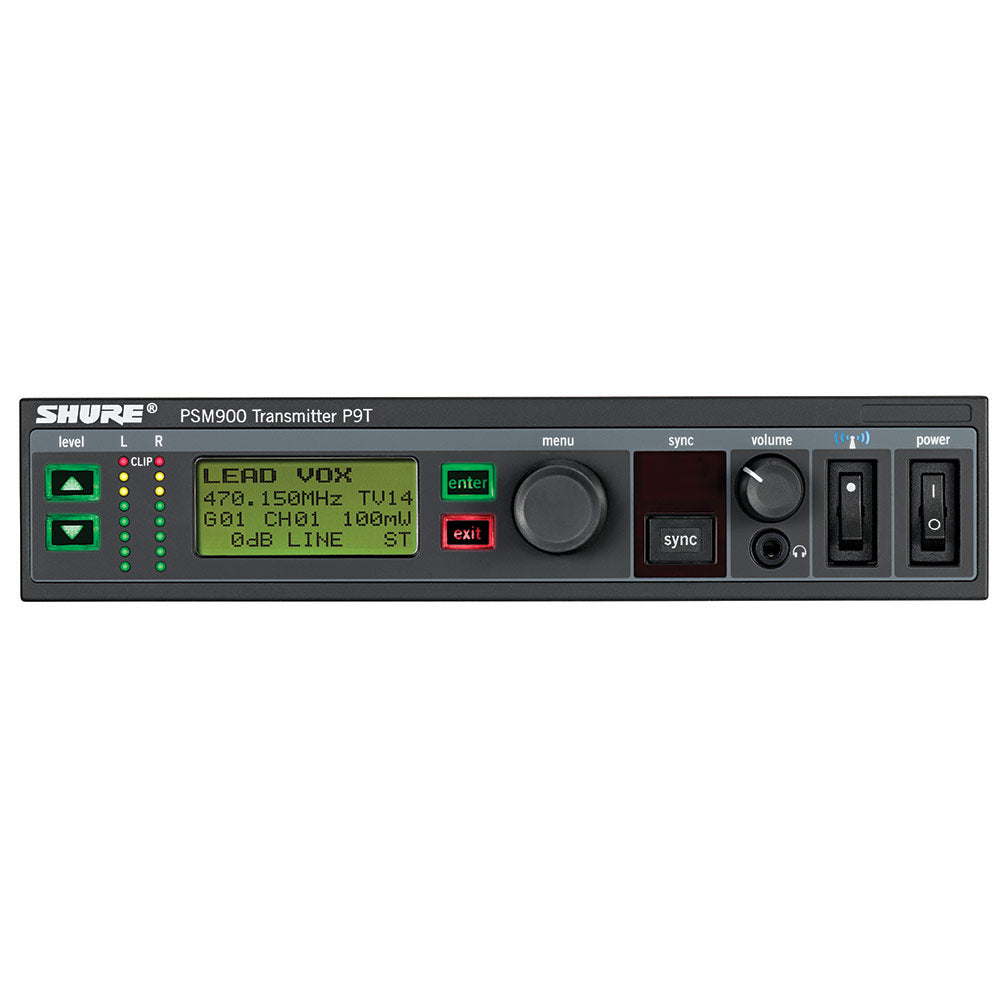

The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System. It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation. Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
Features
- RF Mute Switch allows system setup without causing RF interference
- Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Front or back mountable antennas
- Compatible with PA421A and PA821A antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4” and XLR connectors
- Bit-mapped, backlit LCD
- Includes rack-mounting hardware
- 1/8” headphone out on the front panel for easy monitoring
| RF Output Power | >selectable: 10, 50, 100 mW (+20 dBm) (regionally dependent) |
| RF Output Impedance | >50 Ω (typical) |
| Net Weight | >850 g |
| Dimensions | >197 mm x 166 mm x 42 mm |
| Power Requirement (RF on, 100 mW power mode, no audio) | >415 mA, typical |
This frequency band cannot be used in the United States or Canada.
The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System. It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation. Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
Features
- RF Mute Switch allows system setup without causing RF interference
- Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Front or back mountable antennas
- Compatible with PA421A and PA821A antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4” and XLR connectors
- Bit-mapped, backlit LCD
- Includes rack-mounting hardware
- 1/8” headphone out on the front panel for easy monitoring
| RF Output Power | >selectable: 10, 50, 100 mW (+20 dBm) (regionally dependent) |
| RF Output Impedance | >50 Ω (typical) |
| Net Weight | >850 g |
| Dimensions | >197 mm x 166 mm x 42 mm |
| Power Requirement (RF on, 100 mW power mode, no audio) | >415 mA, typical |
