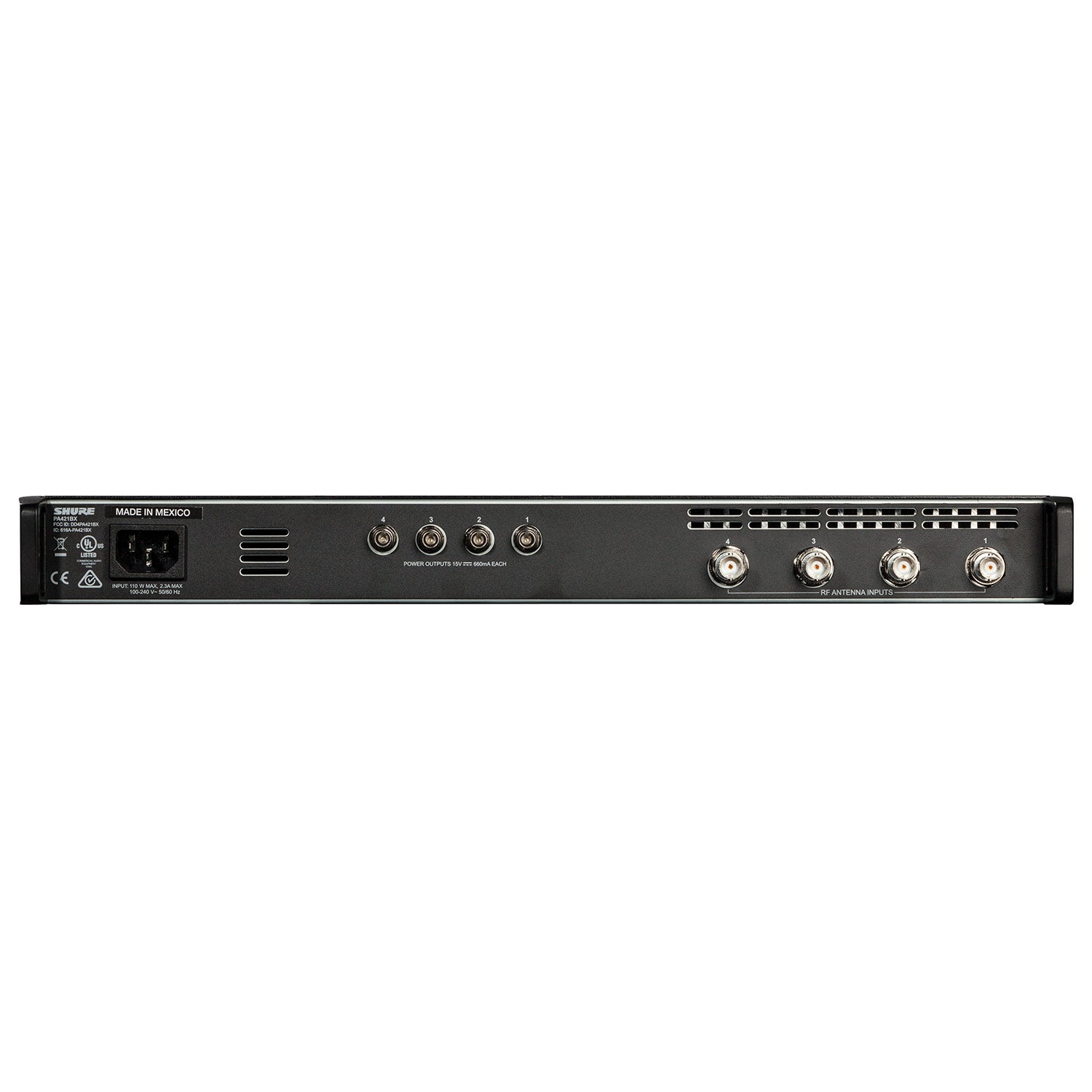

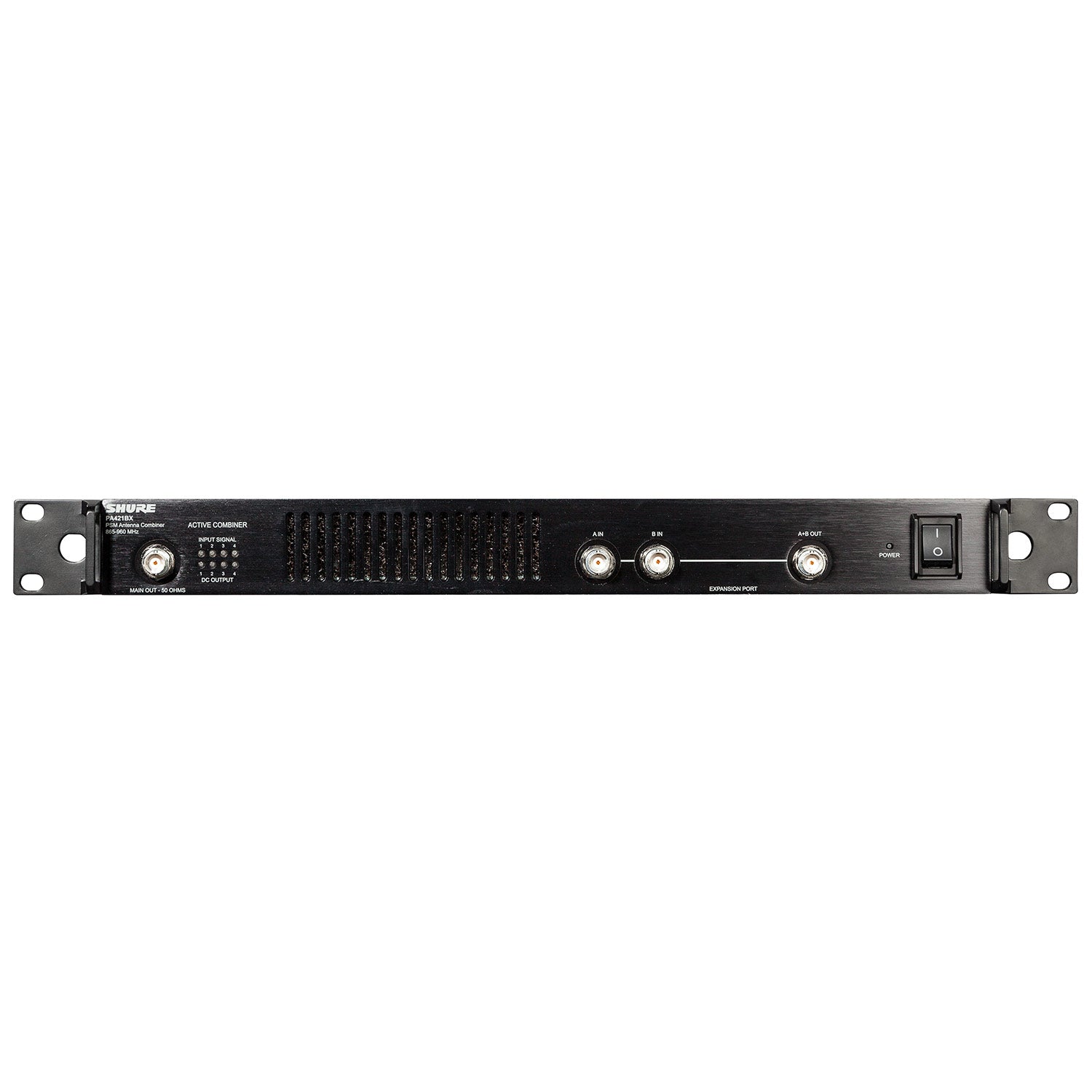

Shure PA421BX Four-Way Antenna Combiner (865-960 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Shure PA421B Antenna Combiners are complementary accessories for Shure PSM Personal Stereo Monitor systems. When multiple systems are required for monitoring environments, the PA421B combiners quietly and efficiently reduce rack clutter and optimize RF management for up to four PSM®900 transmitters or two PSM®1000 transmitters when racked in a central location.
Features:
- Combines multiple PSM transmitters to a single antenna set
- Improves RF networking
- Reduces rack clutter
- Wideband operation (470–865 MHz or 865–960 MHz)
- 4 Input LED Signals (green when active; off when inactive)
- Quieter fan for significant reductions in ambient unit noise
- Temperature-sensitive fan power for significant reductions in ambient unit heat
- Provides DC power to compatible IEM transmitters
- LED indications of signal presence and signal overload
- Passive (non-powered) antenna combining (requires Shure factory modification)
| RF Frequency Range | PA421B: 470-865 MHz PA421BX: 865-960 MHz |
| Impedance | 50 ½ |
| Operating Temperature Range | _18 ¡C (0 ¡F) to 63 ¡C (145 ¡F) |
| Power Requirements | 100 to 240 V AC, 50-60 Hz |
| Current Drain | 1.09 A (referenced at 100 V AC) (109 VA) |
| Power Consumption | 98 W max. |
| RF Input | |
| Connector Type | BNC |
| Configuration | Active |
| Impedance | 50 ½ |
| RF Gain | 0 dB (±2 dB) |
| LED Indicator Min. Detection Threshold | 2.5 dBm |
| LED Indicator Overload Threshold | >24 dBm |
| Main Output | |
| Connectory Type | BNC |
| Impedance | 50 ½ |
| Expansion Port | |
| Connector Type | BNC |
| Configuration | Passive |
| Impedance | 50 ½ |
| Insertion Loss | <4 dB |
| RF Expansion Port | Normal Operating Range 33 dBm (2 W) |
| DC Outputs | |
| Output Voltage | 15 V DC |
| Output Current (Per Output) | 660 mA max |
| Output Power (Per Output) | 9.9 W |
| LED Indicator Min. Detection Threshold | 85 mA |
| LED Indicator Overload Threshold | >660 dBm |
Shure PA421B Antenna Combiners are complementary accessories for Shure PSM Personal Stereo Monitor systems. When multiple systems are required for monitoring environments, the PA421B combiners quietly and efficiently reduce rack clutter and optimize RF management for up to four PSM®900 transmitters or two PSM®1000 transmitters when racked in a central location.
Features:
- Combines multiple PSM transmitters to a single antenna set
- Improves RF networking
- Reduces rack clutter
- Wideband operation (470–865 MHz or 865–960 MHz)
- 4 Input LED Signals (green when active; off when inactive)
- Quieter fan for significant reductions in ambient unit noise
- Temperature-sensitive fan power for significant reductions in ambient unit heat
- Provides DC power to compatible IEM transmitters
- LED indications of signal presence and signal overload
- Passive (non-powered) antenna combining (requires Shure factory modification)
| RF Frequency Range | PA421B: 470-865 MHz PA421BX: 865-960 MHz |
| Impedance | 50 ½ |
| Operating Temperature Range | _18 ¡C (0 ¡F) to 63 ¡C (145 ¡F) |
| Power Requirements | 100 to 240 V AC, 50-60 Hz |
| Current Drain | 1.09 A (referenced at 100 V AC) (109 VA) |
| Power Consumption | 98 W max. |
| RF Input | |
| Connector Type | BNC |
| Configuration | Active |
| Impedance | 50 ½ |
| RF Gain | 0 dB (±2 dB) |
| LED Indicator Min. Detection Threshold | 2.5 dBm |
| LED Indicator Overload Threshold | >24 dBm |
| Main Output | |
| Connectory Type | BNC |
| Impedance | 50 ½ |
| Expansion Port | |
| Connector Type | BNC |
| Configuration | Passive |
| Impedance | 50 ½ |
| Insertion Loss | <4 dB |
| RF Expansion Port | Normal Operating Range 33 dBm (2 W) |
| DC Outputs | |
| Output Voltage | 15 V DC |
| Output Current (Per Output) | 660 mA max |
| Output Power (Per Output) | 9.9 W |
| LED Indicator Min. Detection Threshold | 85 mA |
| LED Indicator Overload Threshold | >660 dBm |
