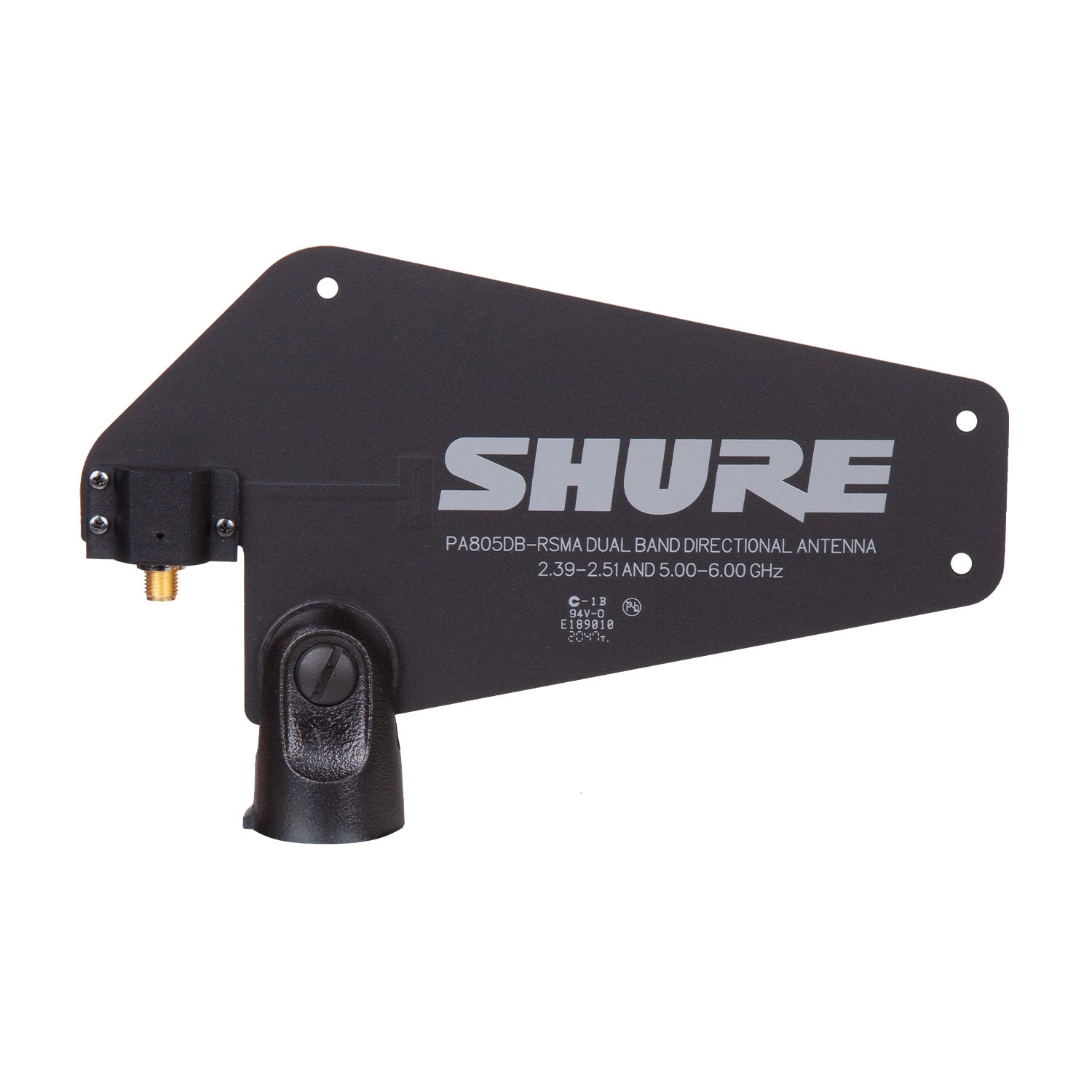

Shure PA805DB-RSMA - Passive Dual Band Directional Antenna
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Shure PA805DB-RSMA Dual Band Passive Directional Antenna improves in up to 8dB the reception of half-rack GLXD4R+ receivers and of the GLXD+FMDB Dual Band Frequency Manager. Improved filtering of interference from 2.4 and 5.8GHz sources deliver 24dB front-to-back rejection ratio of off-axis signals.
Features:
- Improved wireless reception: 8dB of passive directional antenna gain
- Improved rejection of interference from 2.4 and 5.8GHz sources: 24dB front-to-back ratio for improved rejection of off-axis signals
- Can be painted with non-metallic paint to match mounting surface
- Includes 3m RSMA cable
| Frequency Range | 2.39 to 2.51 GHz and 5.0 to 6.0 GHz |
| Antenna Gain | @ 2.45 GHz, typical 6.2 dBi @ 5.785 GHz, typical 8.4 dBi 3 dB Horizontal Beam Width @ 2.45 GHz, typical 109 degrees @ 5.785 GHz, typical 64 degrees 3 dB Vertical Beam Width @ 2.45 GHz, typical 61 degrees @ 5.785 GHz, typical 53 degrees |
| Polarization | Linear |
| Impedance | 50 ? |
| Voltage Standing Wave Ratio (VSWR) | 2.4 - 2.5 GHz < 1.5 (< 1.3, typical) 5.0 - 6.0 GHz < 2.5 (< 2, typical) |
| Connector Type | Reverse SMA |
| Dimensions | 4.13 x 6.45 x 1 in. (105 x 164 x 27.5 mm) with mounting accessories, (H x W x D) |
| Weight | 2.5 oz. (56.7 g) with mounting accessories |
The Shure PA805DB-RSMA Dual Band Passive Directional Antenna improves in up to 8dB the reception of half-rack GLXD4R+ receivers and of the GLXD+FMDB Dual Band Frequency Manager. Improved filtering of interference from 2.4 and 5.8GHz sources deliver 24dB front-to-back rejection ratio of off-axis signals.
Features:
- Improved wireless reception: 8dB of passive directional antenna gain
- Improved rejection of interference from 2.4 and 5.8GHz sources: 24dB front-to-back ratio for improved rejection of off-axis signals
- Can be painted with non-metallic paint to match mounting surface
- Includes 3m RSMA cable
| Frequency Range | 2.39 to 2.51 GHz and 5.0 to 6.0 GHz |
| Antenna Gain | @ 2.45 GHz, typical 6.2 dBi @ 5.785 GHz, typical 8.4 dBi 3 dB Horizontal Beam Width @ 2.45 GHz, typical 109 degrees @ 5.785 GHz, typical 64 degrees 3 dB Vertical Beam Width @ 2.45 GHz, typical 61 degrees @ 5.785 GHz, typical 53 degrees |
| Polarization | Linear |
| Impedance | 50 ? |
| Voltage Standing Wave Ratio (VSWR) | 2.4 - 2.5 GHz < 1.5 (< 1.3, typical) 5.0 - 6.0 GHz < 2.5 (< 2, typical) |
| Connector Type | Reverse SMA |
| Dimensions | 4.13 x 6.45 x 1 in. (105 x 164 x 27.5 mm) with mounting accessories, (H x W x D) |
| Weight | 2.5 oz. (56.7 g) with mounting accessories |
