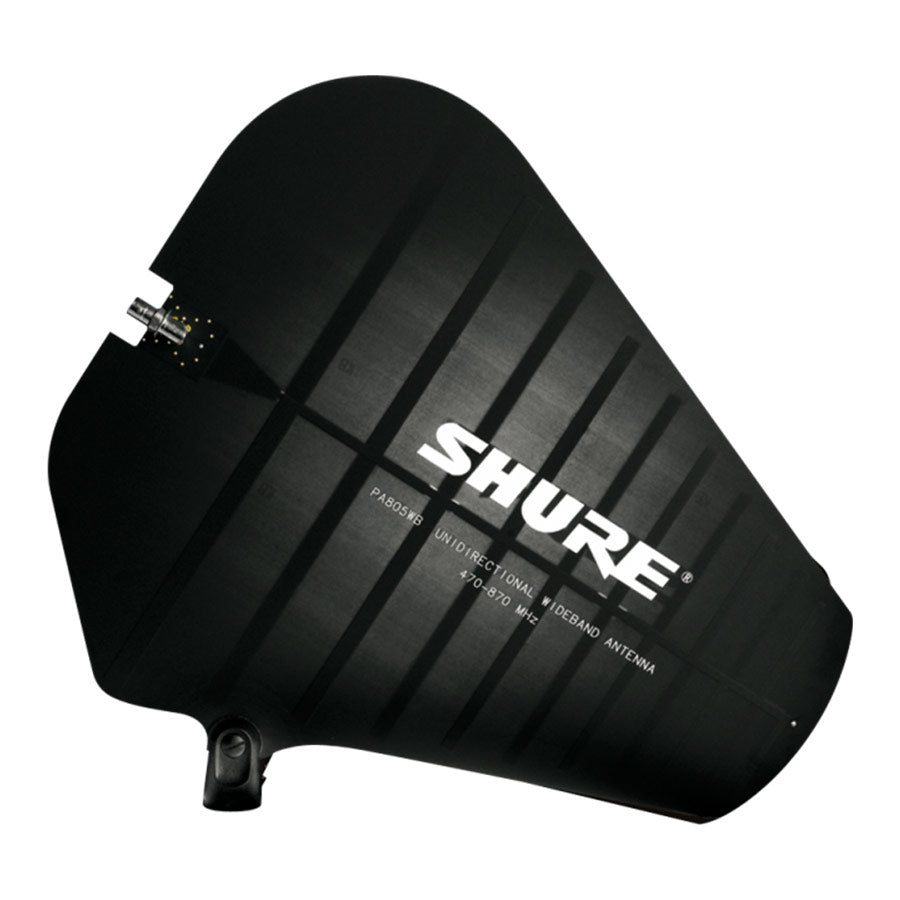

Shure PA805X Directional Antenna for PSM Series (470-952 MHz)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SHUR-PA805X

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The Shure PA805 is a directional antenna for increased range and reduced interference as compared to omnidirectional 1/2-wave antennas. The PA805 can be mounted on a microphone stand or mounted to a wall using the integral swivel adapter bracket.

  • RF Frequency Range
    PA805X944-952 MHz
    Antenna GainPA805X = 6dBi Typical
    Radiation PatternDirectional; Cardioid
    Connector50 W, Female, BNC-type
    Swivel AdapterPositive-action, break resistant, adjustable from 0 to 90 degrees, with standard 5/8 in. -27 thread
    DimensionsPA805X: 226 mm H X 234 mm W X 40.6 mm D (8.9 in. H X 9.21 in. W X 1.60 in. D)
    Net Weight (without cable)PA805X: 8 oz (227 grams)
