Shure QLXD1 Wireless Bodypack Transmitter (V50 Band - 174-216 MHz) - B-Stock
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.

Description

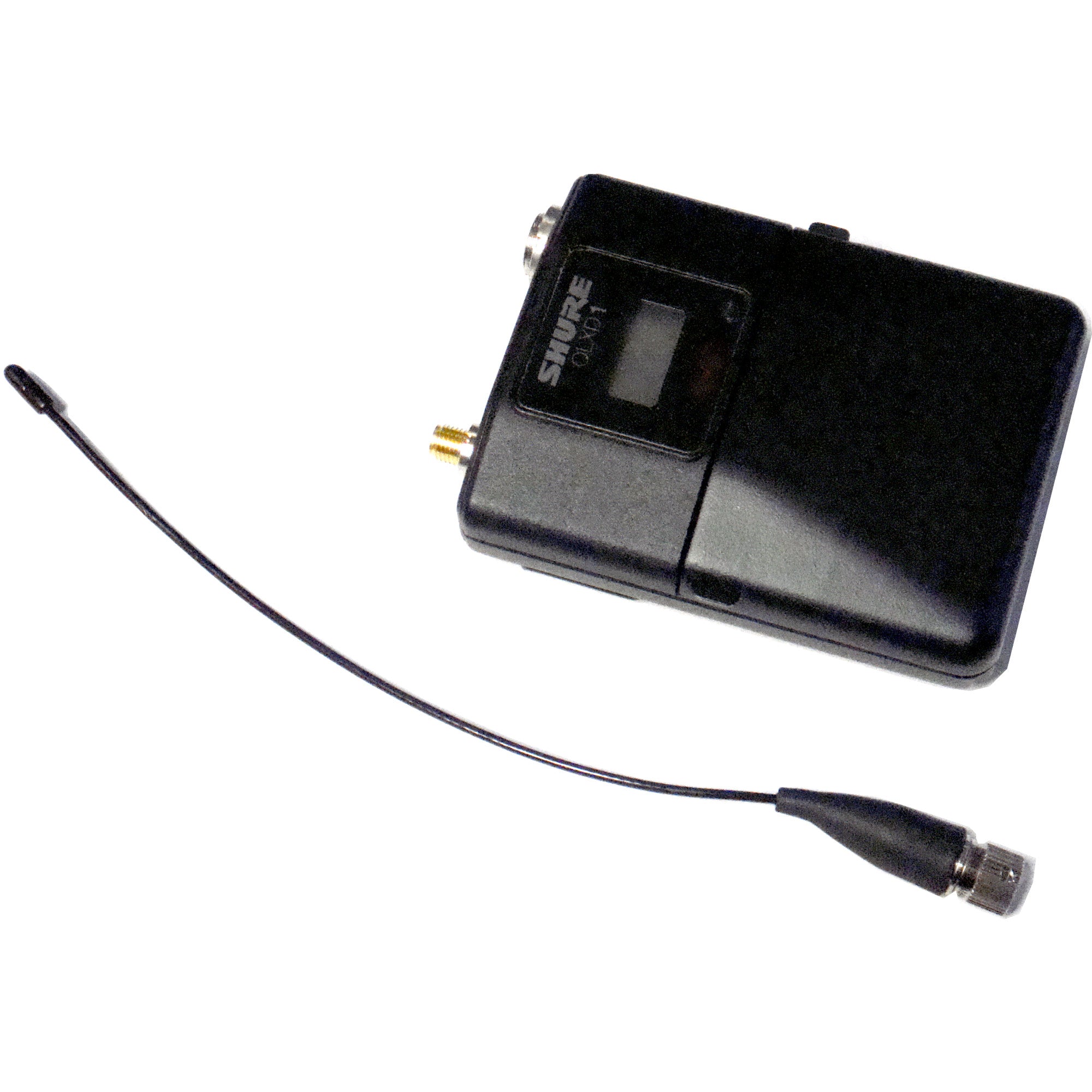

QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range.
Features:
- Works with QLX-D Wireless Systems
- Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries

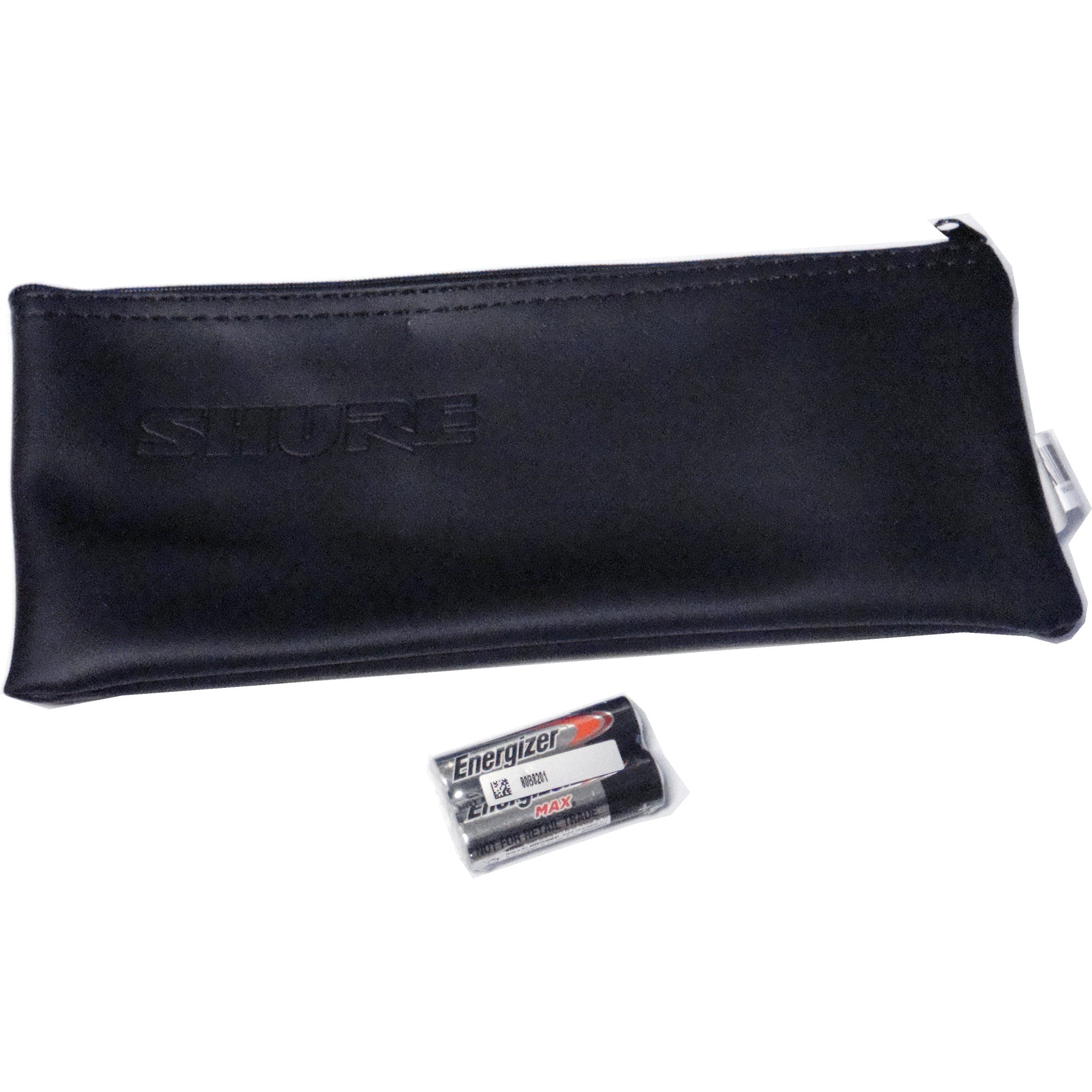

- Includes QLXD1, 2 AA batteries, black zippered pouch, and user guide
- Over 120 dB of dynamic range: no transmitter gain adjustments needed
- AES 256-bit encryption for secure transmission
- Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 4-Pin male mini connector (TA4M)
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.
Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.
Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V |
Battery Runtime | Shure SB900: up to 10 hours |
Dimensions | 86 mm × 65 mm × 23 mm (3.38 in. × 2.57in. × 0.92 in.) H × W × D |
Weight | 138 g (4.9 oz.), without batteries |
Housing | Cast aluminum |
Audio Input | |
Connector | 4-pin male mini connector (TA4M) |
Configuration | Unbalanced |
Impedance | 1 M |
Maximum Input Level 1 kHz at 1% THD | 8.5 dBV (7.5 Vpp) |
Preamplifier Equivalent Input Noise (EIN) | 120 dBV, A-weighted, typical |
RF Output | |
Connector | SMA |
Antenna | Type 1/4 wave |
Impedance | 50 |
Occupied Bandwidth | <200 kHz |
Modulation Type | Shure proprietary digital |
Power | 1 mW or 10 mW |
QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range.
Features:
- Works with QLX-D Wireless Systems
- Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
- Includes QLXD1, 2 AA batteries, black zippered pouch, and user guide
- Over 120 dB of dynamic range: no transmitter gain adjustments needed
- AES 256-bit encryption for secure transmission
- Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 4-Pin male mini connector (TA4M)
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.
Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.
Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V |
Battery Runtime | Shure SB900: up to 10 hours |
Dimensions | 86 mm × 65 mm × 23 mm (3.38 in. × 2.57in. × 0.92 in.) H × W × D |
Weight | 138 g (4.9 oz.), without batteries |
Housing | Cast aluminum |
Audio Input | |
Connector | 4-pin male mini connector (TA4M) |
Configuration | Unbalanced |
Impedance | 1 M |
Maximum Input Level 1 kHz at 1% THD | 8.5 dBV (7.5 Vpp) |
Preamplifier Equivalent Input Noise (EIN) | 120 dBV, A-weighted, typical |
RF Output | |
Connector | SMA |
Antenna | Type 1/4 wave |
Impedance | 50 |
Occupied Bandwidth | <200 kHz |
Modulation Type | Shure proprietary digital |
Power | 1 mW or 10 mW |
