Description

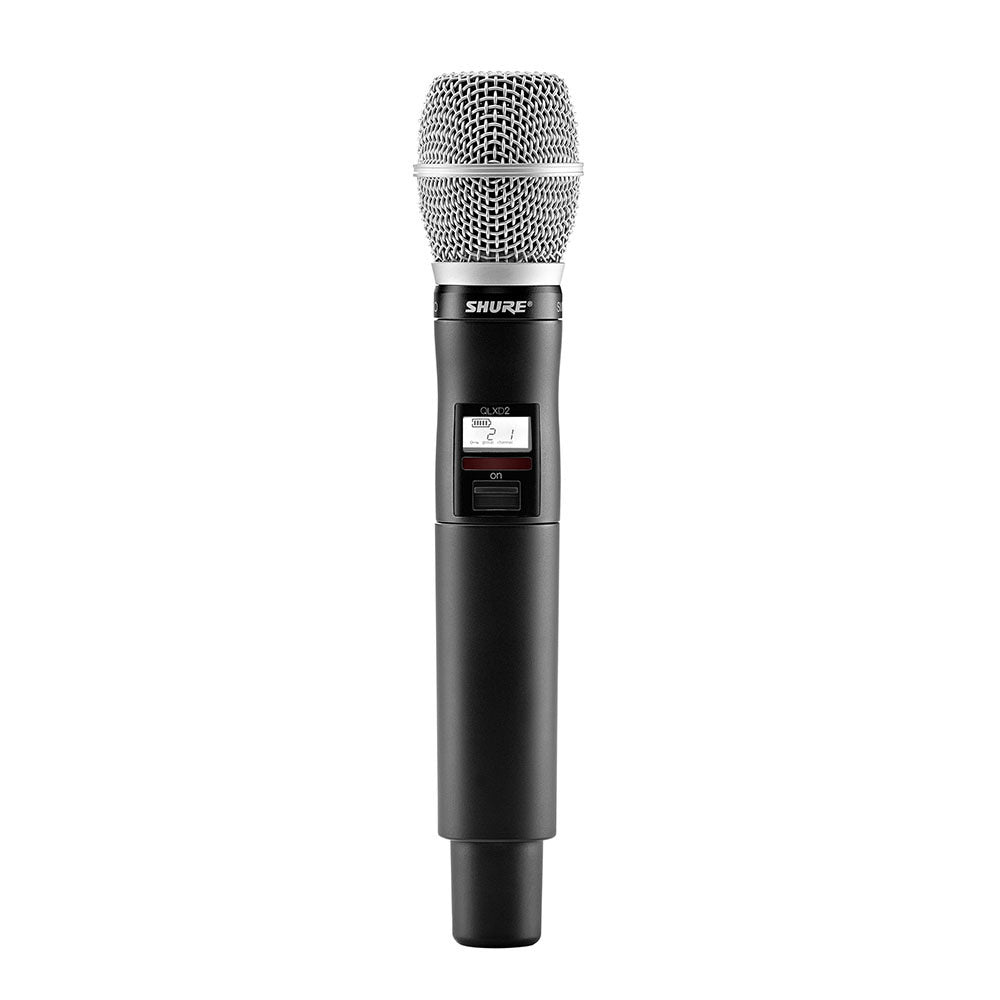

With an interchangeable SM86 microphone cartridge, the QLXD2/SM86 Handheld Wireless Microphone Transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship.
Features:
- Works with QLX-D Wireless Systems
- Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
- Includes QLXD2/SM86, 2 AA batteries, battery contact cover, microphone clip, and user guide
- 24-Bit audio quality
- Incredibly efficient RF spectrum usage
- Quick syncing with a wireless receiver over IR at the push of a button
- Clear, uninterrupted signal over the entire operating range
- AES 256-bit encryption for secure transmission
- Over 120 dB of dynamic range: no transmitter gain adjustment needed
- 1, 10 mW selectable RF output power
- Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- Rugged metal construction
- Frequency and power lockout
Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.
Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.
Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V |
Battery Runtime @ 10 mW | Shure SB900: up to 10 hours Alkaline: up to 9 hours |
Dimensions | 256 mm _ 51 mm (10.1 in. _ 2.0 in.) L _ Dia. |
Weight | 347 g (12.2 oz.), without batteries |
Housing | Machined aluminum |
Configuration | Unbalanced |
Maximum Input Level | 145 dB SPL (SM58), typical Note: Dependent on microphone type |
Antenna Type | Integrated Single Band Helical |
Occupied Bandwidth | <200 kHz |
Modulation Type | Shure proprietary digital |
Power | 1 mW or 10 mW |
With an interchangeable SM86 microphone cartridge, the QLXD2/SM86 Handheld Wireless Microphone Transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship.
Features:
- Works with QLX-D Wireless Systems
- Offers up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries
- Includes QLXD2/SM86, 2 AA batteries, battery contact cover, microphone clip, and user guide
- 24-Bit audio quality
- Incredibly efficient RF spectrum usage
- Quick syncing with a wireless receiver over IR at the push of a button
- Clear, uninterrupted signal over the entire operating range
- AES 256-bit encryption for secure transmission
- Over 120 dB of dynamic range: no transmitter gain adjustment needed
- 1, 10 mW selectable RF output power
- Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- Rugged metal construction
- Frequency and power lockout
Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.
Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.
Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V |
Battery Runtime @ 10 mW | Shure SB900: up to 10 hours Alkaline: up to 9 hours |
Dimensions | 256 mm _ 51 mm (10.1 in. _ 2.0 in.) L _ Dia. |
Weight | 347 g (12.2 oz.), without batteries |
Housing | Machined aluminum |
Configuration | Unbalanced |
Maximum Input Level | 145 dB SPL (SM58), typical Note: Dependent on microphone type |
Antenna Type | Integrated Single Band Helical |
Occupied Bandwidth | <200 kHz |
Modulation Type | Shure proprietary digital |
Power | 1 mW or 10 mW |
