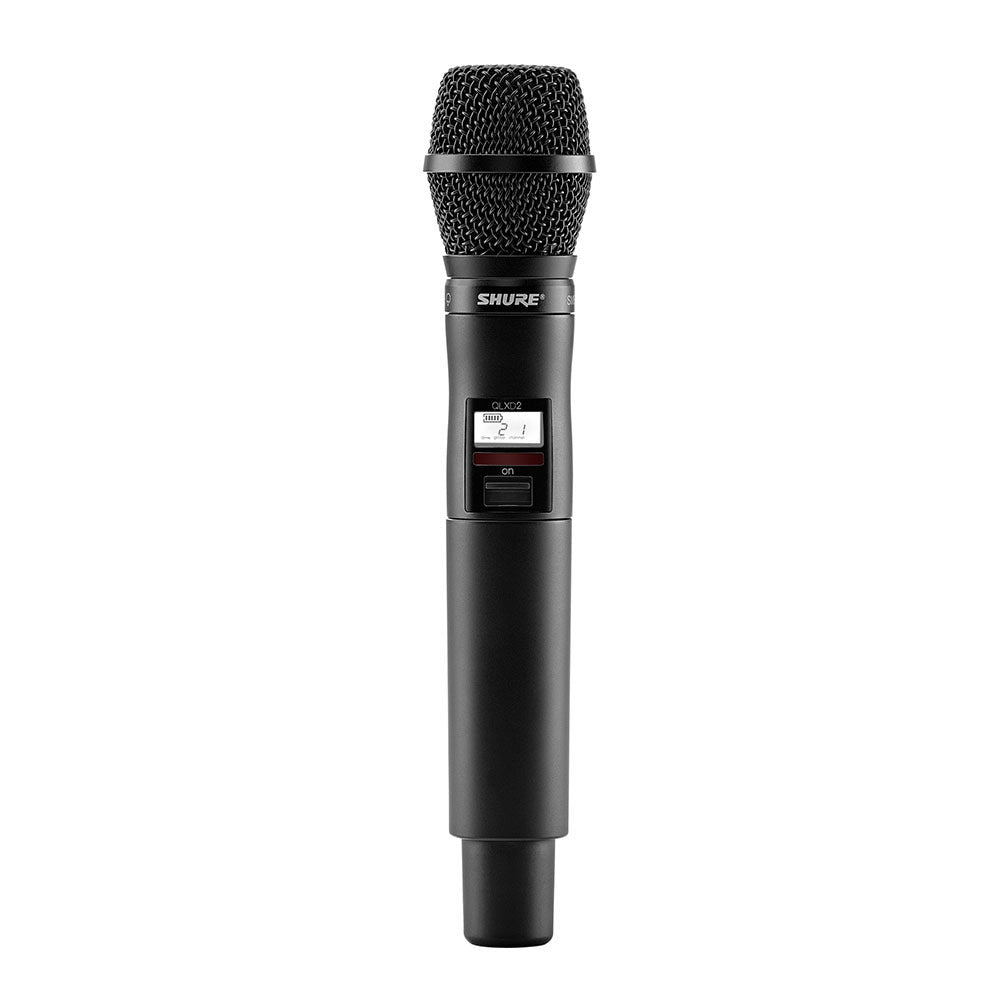

Shure QLXD2/SM87 Wireless Handheld Transmitter (V50 Band - 174-216 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Featuring an SM87 handheld wireless microphone transmitter, QLXD24/SM87 combines professional features with simplified setup and operation. Includes capsule, QLXD4, microphone clip, power supply, 2 AA batteries, battery contact cover, two 1/2 wave antennas, 2 BNC cables, zipper bag, 2 BNC bulkhead adapters, rackmount kit, and user guide.
Offering networked control, AES-256 encryption, and simplified setup and operation, QLX-D delivers outstanding wireless sound for mid-size events and installations.
Features:
- Transparent 24-bit audio captures every performance detail
- Over 120 dB of dynamic range eliminates transmitter gain adjustments
- Easy pairing of transmitters and receivers over IR scan and sync
- Automatic channel scan quickly and easily finds a clean frequency
- Networked channel scan configures open frequencies for connected receivers
- Remote monitoring and control from iOS devices via ShurePlus Channels Mobile App
- AES-256 encryption comes standard for secure wireless transmission
- Elegant and easy-to-use interface with high-contrast LCD menu
- AMX/Crestron control system ready
- Professional-grade, all metal construction
Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.
Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V |
| Battery Runtime @ 10 mW | Shure SB900: up to 10 hours Alkaline: up to 9 hours |
| Dimensions | 256 mm _ 51 mm (10.1 in. _ 2.0 in.) L _ Dia. |
| Weight | 347 g (12.2 oz.), without batteries |
| Housing | Machined aluminum |
| Configuration | Unbalanced |
Maximum Input Level | 145 dB SPL (SM58), typical Note: Dependent on microphone type |
| Antenna Type | Integrated Single Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure proprietary digital |
| Power | 1 mW or 10 mW |
Featuring an SM87 handheld wireless microphone transmitter, QLXD24/SM87 combines professional features with simplified setup and operation. Includes capsule, QLXD4, microphone clip, power supply, 2 AA batteries, battery contact cover, two 1/2 wave antennas, 2 BNC cables, zipper bag, 2 BNC bulkhead adapters, rackmount kit, and user guide.
Offering networked control, AES-256 encryption, and simplified setup and operation, QLX-D delivers outstanding wireless sound for mid-size events and installations.
Features:
- Transparent 24-bit audio captures every performance detail
- Over 120 dB of dynamic range eliminates transmitter gain adjustments
- Easy pairing of transmitters and receivers over IR scan and sync
- Automatic channel scan quickly and easily finds a clean frequency
- Networked channel scan configures open frequencies for connected receivers
- Remote monitoring and control from iOS devices via ShurePlus Channels Mobile App
- AES-256 encryption comes standard for secure wireless transmission
- Elegant and easy-to-use interface with high-contrast LCD menu
- AMX/Crestron control system ready
- Professional-grade, all metal construction
Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.
Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V |
| Battery Runtime @ 10 mW | Shure SB900: up to 10 hours Alkaline: up to 9 hours |
| Dimensions | 256 mm _ 51 mm (10.1 in. _ 2.0 in.) L _ Dia. |
| Weight | 347 g (12.2 oz.), without batteries |
| Housing | Machined aluminum |
| Configuration | Unbalanced |
Maximum Input Level | 145 dB SPL (SM58), typical Note: Dependent on microphone type |
| Antenna Type | Integrated Single Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure proprietary digital |
| Power | 1 mW or 10 mW |
