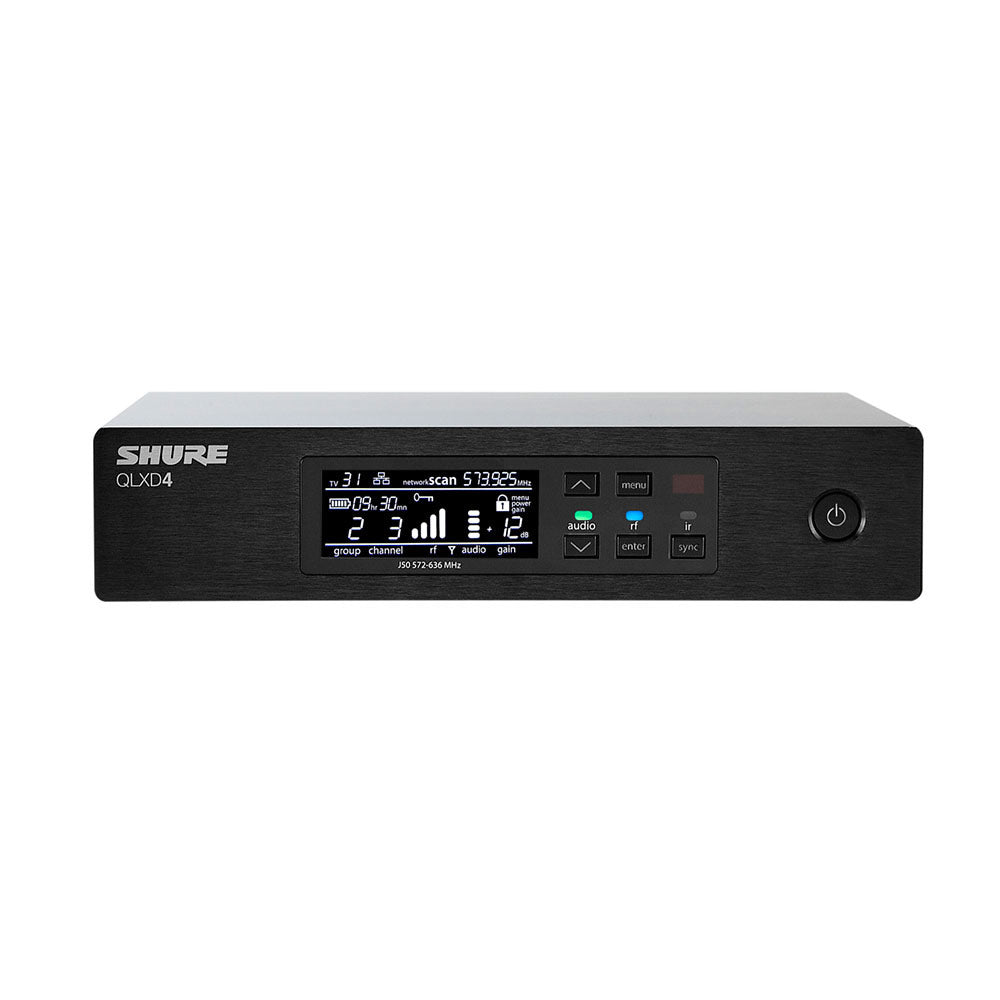

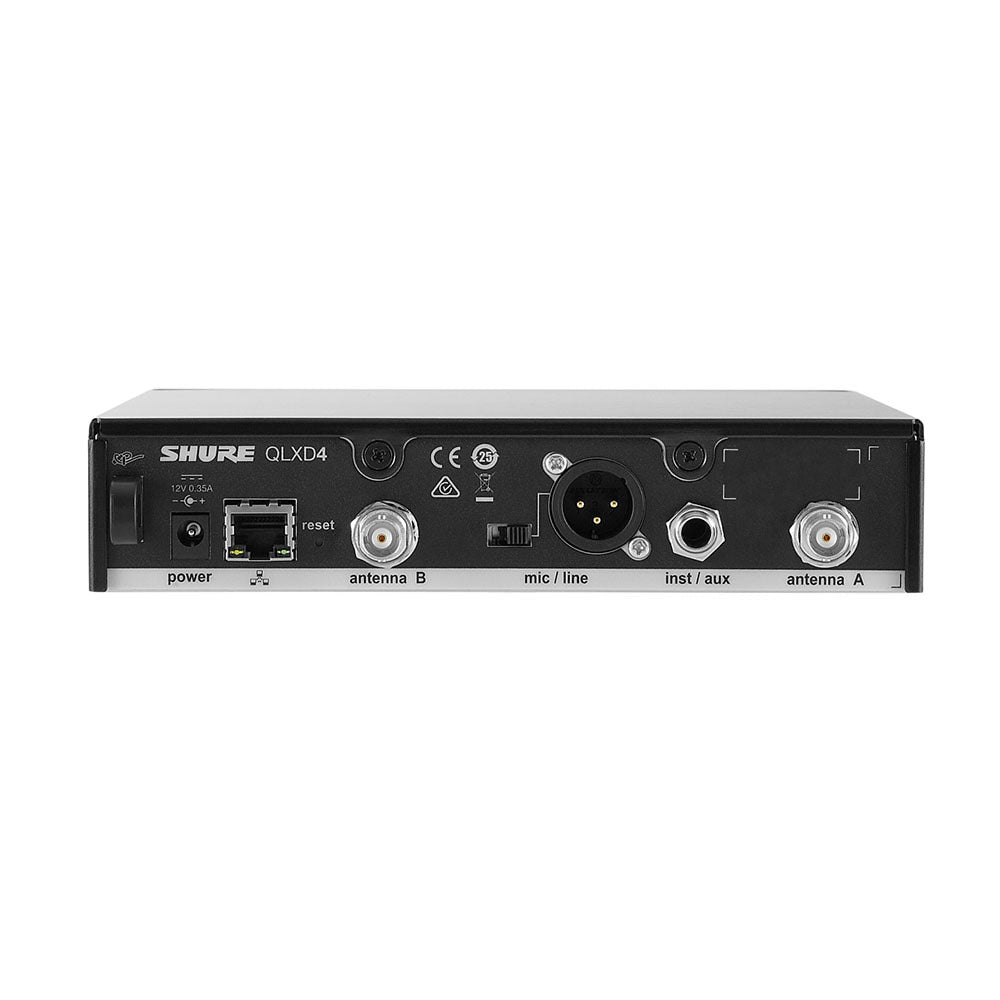

Shure QLXD4 Wireless Receiver (J50A Band - 572-608 + 614-616MHz)


  • Dale #:

    SHUR-QLXD4J50A
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

With transparent 24-bit audio quality and incredibly efficient RF spectrum usage, the QLXD4 Wireless Receiver combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters. Etherne... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

With transparent 24-bit audio quality and incredibly efficient RF spectrum usage, the QLXD4 Wireless Receiver combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.

Features:

  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable 1/2 wave antennas
  • Mic / line switchable XLR output
  • 1/4 Instrument output
  • Durable aluminum construction with brushed finish

Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.

Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.


Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.

Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.

More +

Product Specs

Dimensions41 mm × 197 mm × 151 mm (1.63 in. × 7.75 in. × 5.94 in.), H × W × D
Weight777 g (1.71 lbs), without antennas
HousingSteel
Power requirements12 V DC @ 0.4 A, supplied by external power supply (tip positive)
RF Input
Spurious Rejection>80 dB, typical
Connector TypeBNC
Impedance50
Audio Output
Gain Adjustment Range-18 to +42 dB in 1 dB steps
Configuration1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio )
Impedance1/4" (6.35 mm): 100 (50 Unbalanced)
XLR: 100
Full Scale Output1/4" (6.35 mm): +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= 12 dBV
Mic/Line Switch30 dB pad
Phantom Power Protection1/4" (6.35 mm): Yes
XLR: Yes
Networking
Network InterfaceSingle Port Ethernet 10/100 Mbps
Network AddressingCapability DHCP or Manual IP address
Maximum Ethernet Cable Length100 m (328 ft)
