Shure QLXD4 Wireless Receiver (V50 Band - 174-216 MHz) B-Stock 1
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
With transparent 24-bit audio quality and incredibly efficient RF spectrum usage, the QLXD4 Wireless Receiver combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.
Features:
- 64 MHz tuning bandwidth (region dependent)
- More than 60 preset compatible channels per frequency band (region dependent)
- Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
- Digital predictive switching diversity ensures solid RF connection
- AES 256-bit encryption for secure wireless transmission
- Up to 60 dB of adjustable audio gain

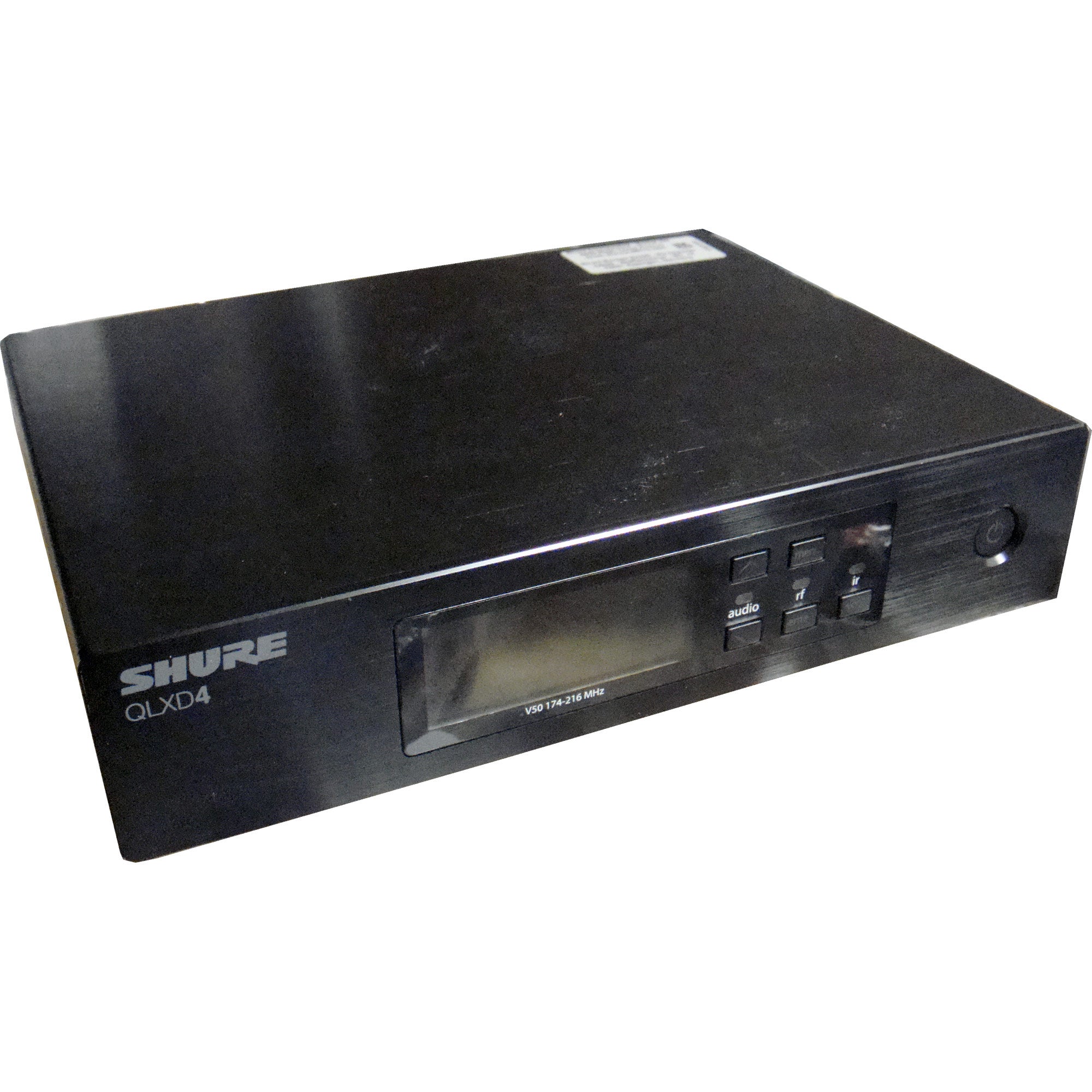

- High-contrast LCD menu and controls with lockout feature
- Audio and RF LED meters with peak indicator
- Detachable 1/2 wave antennas
- Mic / line switchable XLR output
- 1/4 Instrument output
- Durable aluminum construction with brushed finish
Combining professional features with simplified setup and operation, QLX-D delivers outstanding wireless functionality for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
QLX-D reliably operates more channels on-air than any other wireless system in its class. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench 6 control software compatibility for advanced frequency coordination.
Compatible with the Shure SB900 lithium-ion battery, QLX-D offers rechargeable power options that provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, with battery metering that reports remaining runtime in hours and minutes.
| Dimensions | 41 mm × 197 mm × 151 mm (1.63 in. × 7.75 in. × 5.94 in.), H × W × D |
| Weight | 777 g (1.71 lbs), without antennas |
| Housing | Steel |

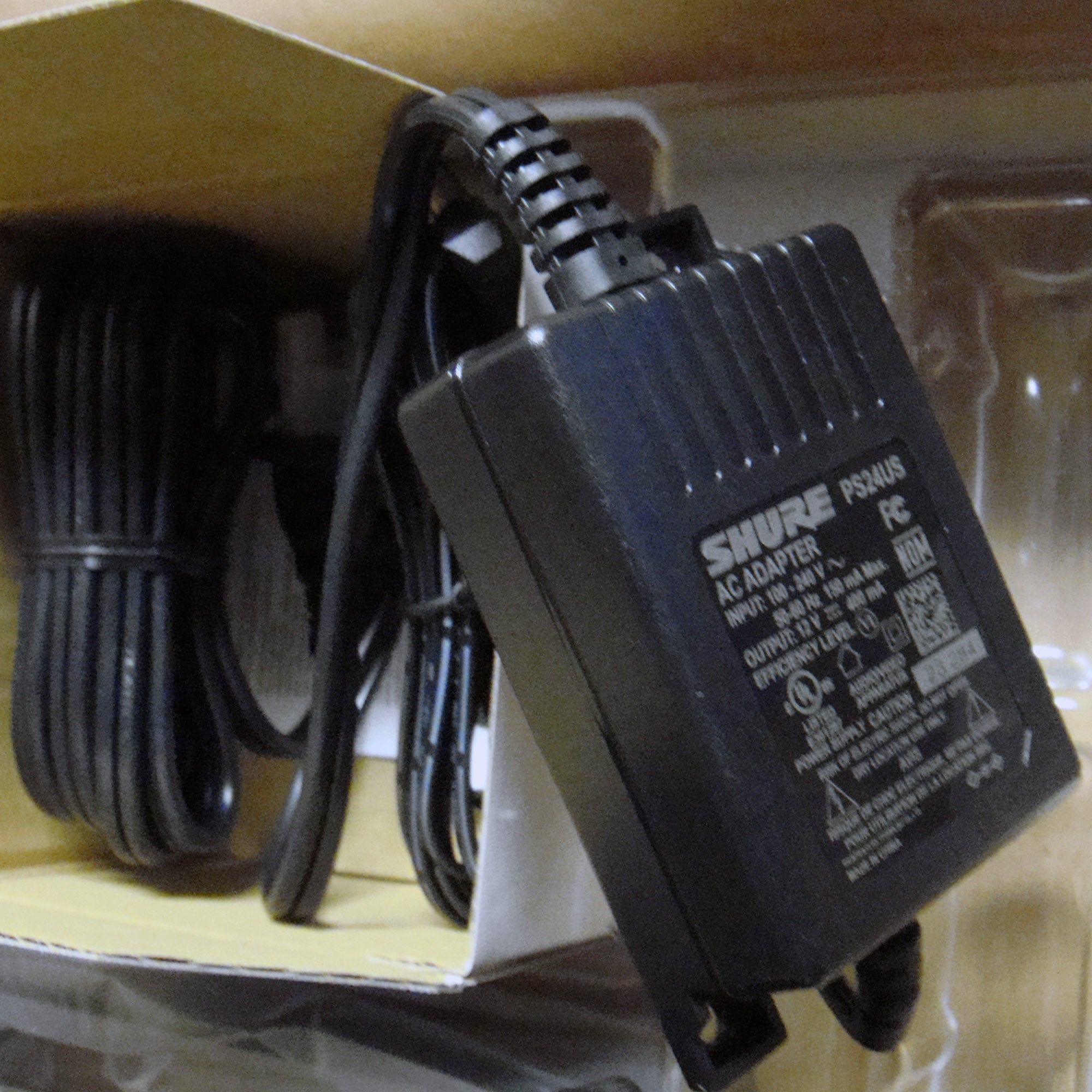

| Power requirements | 12 V DC @ 0.4 A, supplied by external power supply (tip positive) |
| RF Input | |
| Spurious Rejection | >80 dB, typical |
| Connector Type | BNC |
| Impedance | 50 |
| Audio Output | |
| Gain Adjustment Range | -18 to +42 dB in 1 dB steps |

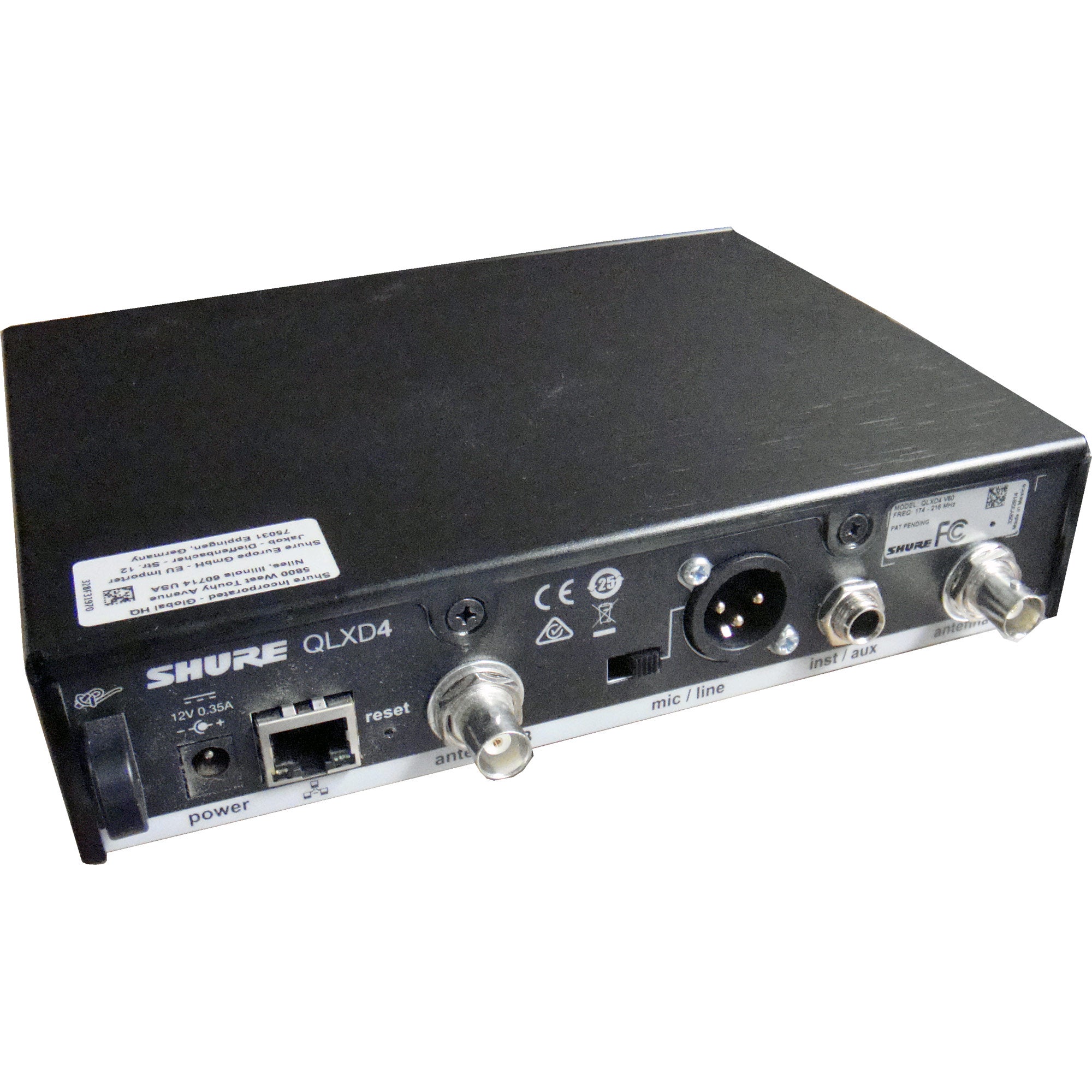

| Configuration | 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio ) |
| Impedance | 1/4" (6.35 mm): 100 (50 Unbalanced) XLR: 100 |
| Full Scale Output | 1/4" (6.35 mm): +12 dBV XLR: LINE setting= +18 dBV, MIC setting= 12 dBV |
| Mic/Line Switch | 30 dB pad |
| Phantom Power Protection | 1/4" (6.35 mm): Yes XLR: Yes |
| Networking | |
| Network Interface | Single Port Ethernet 10/100 Mbps |
| Network Addressing | Capability DHCP or Manual IP address |
| Maximum Ethernet Cable Length | 100 m (328 ft) |
