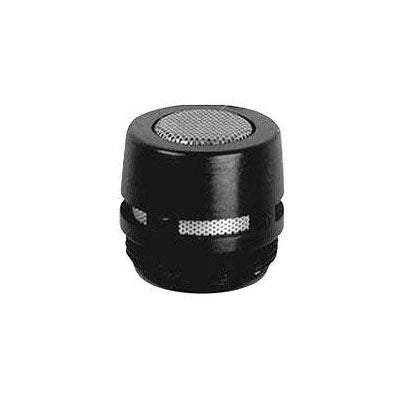

Shure R185B Cardioid Replacement Capsule with Windscreen for the WL185 Lavalier Microphone (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Cardioid cartridge for all Microflex MX183, MX202, MX391, MX392, MX393, MX412, MX418 microphones. R185B - Black R185W - White
The Shure R185BQ is a replacement capsule for the WL185 cardioid miniature lavalier microphone. The cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile sub-miniature design is ideal for applications where the microphone must be concealed. The screw-on design allows for quick, easy installation. Features :
- Subminature Profile - The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications.
- Cardioid Polar Pattern - The cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback.
- Full Signal Reproduction - A wide frequency response and high SPL rating results in full, clear audio reproduction for speech.
| Transducer | Electret Bias |
| Polar Pattern | Cardioid |
| Frequency Response | 50Hz to 17kHz |
| Dynamic Range (Typical) | 102dB |
| Signal-to-Noise Ratio | 18dB SPL (A-weighted) |
| Maximum Input Sound Level | 130dB |
| Power Requirements | Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc) |
| Output Impedance | 28 kHz |
| Output Connectors | TA4-Female |
| Pad | No |
| Low Frequency Roll-Off | No |
Cardioid cartridge for all Microflex MX183, MX202, MX391, MX392, MX393, MX412, MX418 microphones. R185B - Black R185W - White
The Shure R185BQ is a replacement capsule for the WL185 cardioid miniature lavalier microphone. The cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile sub-miniature design is ideal for applications where the microphone must be concealed. The screw-on design allows for quick, easy installation. Features :
- Subminature Profile - The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications.
- Cardioid Polar Pattern - The cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback.
- Full Signal Reproduction - A wide frequency response and high SPL rating results in full, clear audio reproduction for speech.
| Transducer | Electret Bias |
| Polar Pattern | Cardioid |
| Frequency Response | 50Hz to 17kHz |
| Dynamic Range (Typical) | 102dB |
| Signal-to-Noise Ratio | 18dB SPL (A-weighted) |
| Maximum Input Sound Level | 130dB |
| Power Requirements | Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc) |
| Output Impedance | 28 kHz |
| Output Connectors | TA4-Female |
| Pad | No |
| Low Frequency Roll-Off | No |
