Shure RKC800 Single Rack Space XLR Connector Kit for AMS8100 - SCM800 - SCM810
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Use the Shure RKC800 XLR Connector Kit to connect XLR and phono pin connectors to Shure SCM810 and SCM800 Microphone Mixers.
Features:- The RKC800 occupies a single rack space in a standard 483 mm (19-inch) width audio equipment rack.

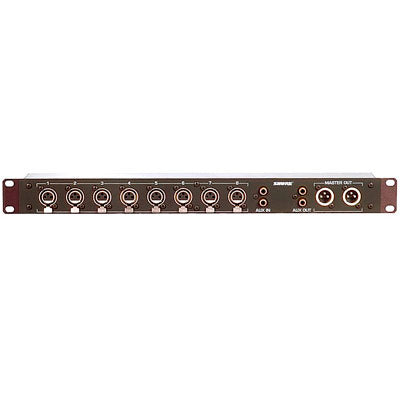

- Its front panel contains eight latching XLR input connectors, two XLR output connectors, and gold-plated Aux In and Aux Out (two each) phono jacks.
- Input connectors from the RKC800 are hardwired, and Aux and Line Out connectors contain resistive circuitry.
- Connecting cables are 61 cm (24 in.).
INSTALLATION:To mount an RKC800 adjacent to an SCM810 or SCM800 mixer in an audio equipment, proceed as follows.1. Mount the RKC800 in the rack below the mixer using the supplied rack-mount screws and washers.2. Set the mixer MIC/LINE switches to the appropriate level.3. Connect the eight RKC800's eight block terminal connectors (at the ends of the eight cables)4. To use the AUX IN jacks, set the mixer's rear-panel AUX/D.O./D.O. switch (located behind the LINE OUTPUT connector)to AUX, and connect the RKC800 AUX IN cable to the mixer's Channel 8/AUX IN jack.5. Connect the RKC800 LINE OUT cable to the mixer's LINE OUTPUT terminal block connector.
| Aux Output Impedance (actual) | 2 kohms |
| Line Output Impedance (actual) | 200 ohms |
| Aux Input Level | Ð10 dBV nominal |
| Aux Output Level | Ð10 dBV nominal |
| Dimensions | 44.5 mm H x 483 mm W x 66.7 mm D (13/4 x 19 x 25/8 in.) |
| Net Weight | 1.45 kg (3 lb 3 oz) |
Use the Shure RKC800 XLR Connector Kit to connect XLR and phono pin connectors to Shure SCM810 and SCM800 Microphone Mixers.
Features:- The RKC800 occupies a single rack space in a standard 483 mm (19-inch) width audio equipment rack.
- Its front panel contains eight latching XLR input connectors, two XLR output connectors, and gold-plated Aux In and Aux Out (two each) phono jacks.
- Input connectors from the RKC800 are hardwired, and Aux and Line Out connectors contain resistive circuitry.
- Connecting cables are 61 cm (24 in.).
INSTALLATION:To mount an RKC800 adjacent to an SCM810 or SCM800 mixer in an audio equipment, proceed as follows.1. Mount the RKC800 in the rack below the mixer using the supplied rack-mount screws and washers.2. Set the mixer MIC/LINE switches to the appropriate level.3. Connect the eight RKC800's eight block terminal connectors (at the ends of the eight cables)4. To use the AUX IN jacks, set the mixer's rear-panel AUX/D.O./D.O. switch (located behind the LINE OUTPUT connector)to AUX, and connect the RKC800 AUX IN cable to the mixer's Channel 8/AUX IN jack.5. Connect the RKC800 LINE OUT cable to the mixer's LINE OUTPUT terminal block connector.
| Aux Output Impedance (actual) | 2 kohms |
| Line Output Impedance (actual) | 200 ohms |
| Aux Input Level | Ð10 dBV nominal |
| Aux Output Level | Ð10 dBV nominal |
| Dimensions | 44.5 mm H x 483 mm W x 66.7 mm D (13/4 x 19 x 25/8 in.) |
| Net Weight | 1.45 kg (3 lb 3 oz) |
