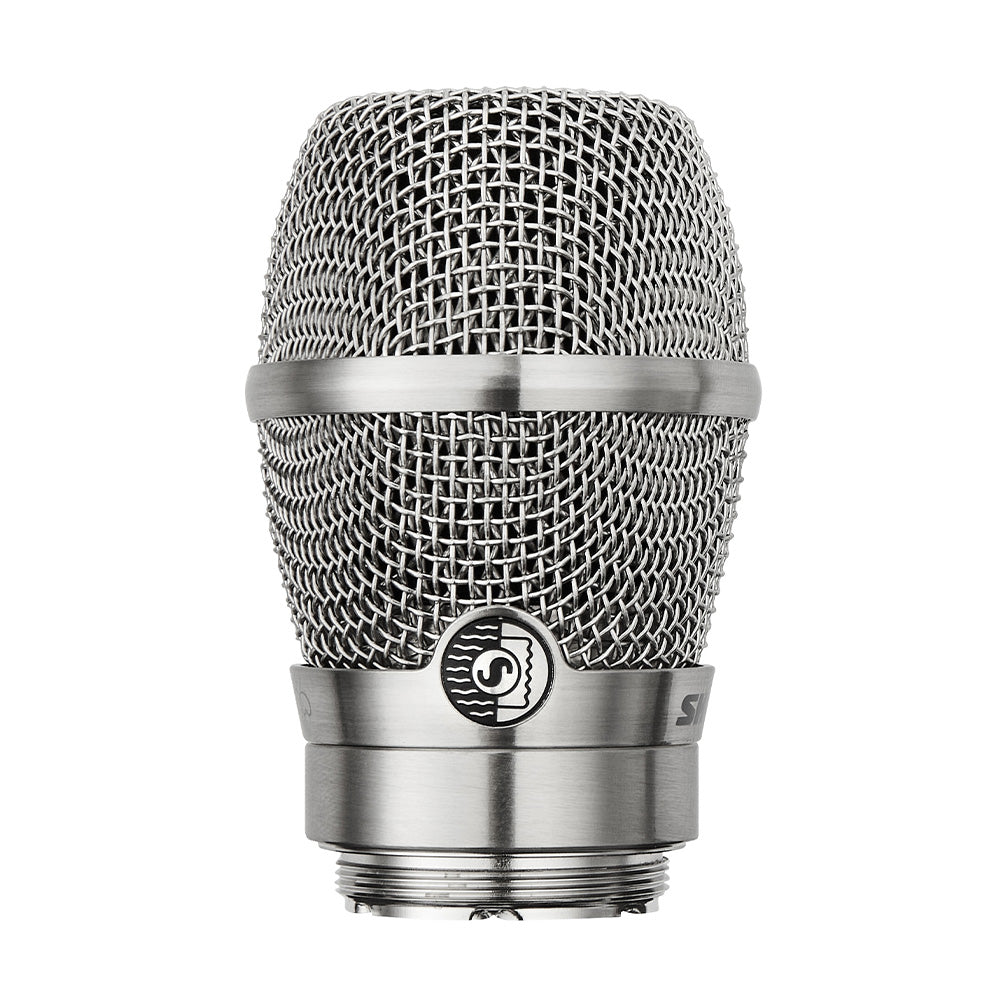

Shure RPW194 - KSM11 Premium Wireless Condenser Microphone Capsule (Nickel Finish)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Shure KSM11 wireless vocal microphone capsule is specifically optimized to more accurately protect and present artist vocals in modern digital wireless live sound productions. As stages have transitioned to more fully embrace digital technology, Shure developed the KSM11 to take advantage of increased linearity and control enabled by this transition.
Features:
- Proprietary wireless condenser capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range and transient response
- Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail
- Streamlined design for an overall smaller and lighter capsule footprint
- Advanced suspended isolation system for virtually zero handling noise
- Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals
- Available in black or brushed nickel finish for use with compatible Shure handheld wireless transmitters
Featuring a premium cardioid condenser design, the KSM11 offers near-perfect off-axis rejection and a highly consistent polar response from an expertly crafted combination of transducer and shock mount technology. The result is an elegant and natural combination of low and mid-range clarity and essential high end detail, designed specifically for high-profile wireless applications, including live performance, live event recording and premium streaming.
| Type | Electret Condenser |
| Polar Pattern | Cardioid |
| Freqeuncy Response | 50 to 20,000 Hz |
| Output Impedance (1 kHz) | 250 ½ with 5 VDC |
| Sensitivity at 1 kHz, open circuit voltage | Ð46.5 dBV/Pa |
| Maximum SPL with 5 VDC | 151 dB SPL |
| Signal-to-Noise Ratio | 71.5 dB |
| Dynamic Range with 5 VDC | 128.5 dB |
| Clipping Level with 5 VDC | 10 dBV |
| Self Noise | 22.5 dB SPL typical, equivalent SPL, A-weighted |
| Polarity | Positive pressure on diaphragm produces positive voltage into trasnmitter with respect to ground |
| Power Requirements | 5 Volt Bias from Shure Transmitter |
| Weight | 5.23 oz (150 g) |
| Dimensions (Dia _ Height) | 1.92 _ 3.0 in. (48.7 _ 76.3 mm) |
| Housing | Aluminum and steel grille |
| REPLACEMENT PARTS | |
| RPW261 | Replacement Grille for use with KSM11, black finish |
| RPW263 | Replacement Grille for use with KSM11, nickel finish |
| AVAILABLE MODELS | |
| RPW192 | Premium wireless cardioid condenser vocal microphone capsule, black finish |
| RPW194 | Premium wireless cardioid condenser vocal microphone capsule, nickel finish |
The Shure KSM11 wireless vocal microphone capsule is specifically optimized to more accurately protect and present artist vocals in modern digital wireless live sound productions. As stages have transitioned to more fully embrace digital technology, Shure developed the KSM11 to take advantage of increased linearity and control enabled by this transition.
Features:
- Proprietary wireless condenser capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range and transient response
- Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail
- Streamlined design for an overall smaller and lighter capsule footprint
- Advanced suspended isolation system for virtually zero handling noise
- Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals
- Available in black or brushed nickel finish for use with compatible Shure handheld wireless transmitters
Featuring a premium cardioid condenser design, the KSM11 offers near-perfect off-axis rejection and a highly consistent polar response from an expertly crafted combination of transducer and shock mount technology. The result is an elegant and natural combination of low and mid-range clarity and essential high end detail, designed specifically for high-profile wireless applications, including live performance, live event recording and premium streaming.
| Type | Electret Condenser |
| Polar Pattern | Cardioid |
| Freqeuncy Response | 50 to 20,000 Hz |
| Output Impedance (1 kHz) | 250 ½ with 5 VDC |
| Sensitivity at 1 kHz, open circuit voltage | Ð46.5 dBV/Pa |
| Maximum SPL with 5 VDC | 151 dB SPL |
| Signal-to-Noise Ratio | 71.5 dB |
| Dynamic Range with 5 VDC | 128.5 dB |
| Clipping Level with 5 VDC | 10 dBV |
| Self Noise | 22.5 dB SPL typical, equivalent SPL, A-weighted |
| Polarity | Positive pressure on diaphragm produces positive voltage into trasnmitter with respect to ground |
| Power Requirements | 5 Volt Bias from Shure Transmitter |
| Weight | 5.23 oz (150 g) |
| Dimensions (Dia _ Height) | 1.92 _ 3.0 in. (48.7 _ 76.3 mm) |
| Housing | Aluminum and steel grille |
| REPLACEMENT PARTS | |
| RPW261 | Replacement Grille for use with KSM11, black finish |
| RPW263 | Replacement Grille for use with KSM11, nickel finish |
| AVAILABLE MODELS | |
| RPW192 | Premium wireless cardioid condenser vocal microphone capsule, black finish |
| RPW194 | Premium wireless cardioid condenser vocal microphone capsule, nickel finish |
