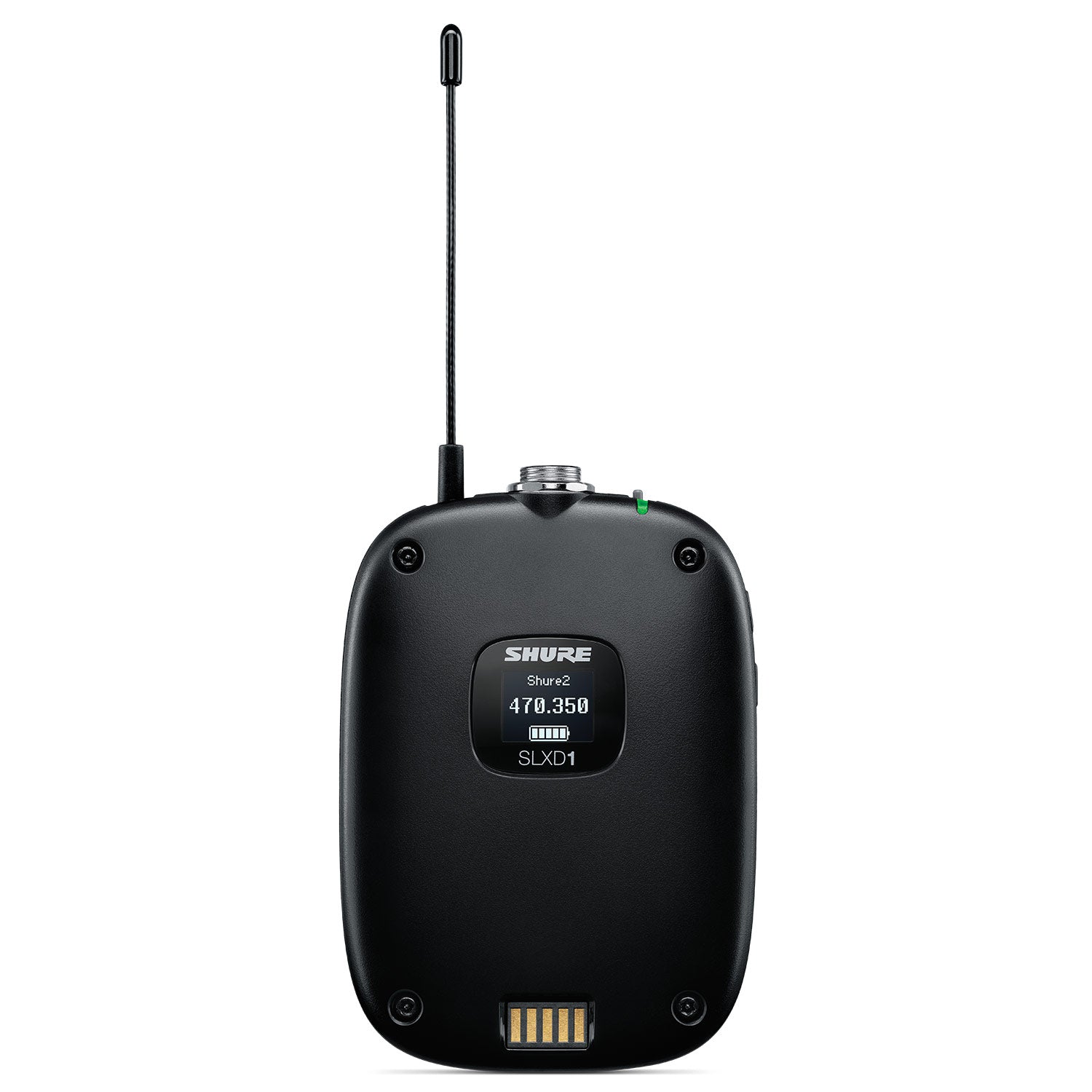

Shure SLXD1 Digital Wireless Bodypack Transmitter (G58 Band / 470-514 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
Features:
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 120 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic construction
| SYSTEM SPECIFICATIONS | |
| RF | |
| RF Carrier Frequency Range | 470 to 514MHz (G58 Band) 514 to 558 MHz (H55 Band) 558 to 602MHz and 614 to 616MHz (J52 Band) |
| Working Range | 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz |
| Image Rejection | >70 dB (typical) |
| RF Sensitivity | ?97 dBm at 10-5 BER |
| AUDIO | |
| Latency | 3.2 ms |
| Audio Frequency Response | 20 Hz - 20 kHz (+1, ?2 dB) |
| Audio Dynamic Range (A-weighted, typical) | 120 dB @1% THD |
| Total Harmonic Distortion | <0.02% |
| System Audio Polarity | XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output. |
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| TEMPERATURE RANGE (Note- Battery characteristics may limit this range) |
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C) Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C) |
| SLXD1 DIGITAL WIRELESS BODYPACK TRANSMITTER | |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (H x W x D) | 3.86 x 2.68 x 1.0 in (98 x 68 x 25.5 mm) |
| Weight | 3.1 oz (89 g) |
| Housing | PC/ABS |
| AUDIO INPUT | |
| Connector | 4-Pin male mini connector (TA4M) |
| Configuration | Unbalanced |
| Impedance | 1 M ohm |
| Maximum Input Level | 8.2 dBV (2.57 Vrms, 7.27 Vpp) |
| Preamplifier Equivalent Input Noise (EIN) | - 118 dBV |
| RF OUTPUT | |
| Antenna Type | 1/4 Wave |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Propietary Digital |
| Power | 1 mW/10 mW Varies by region. |
