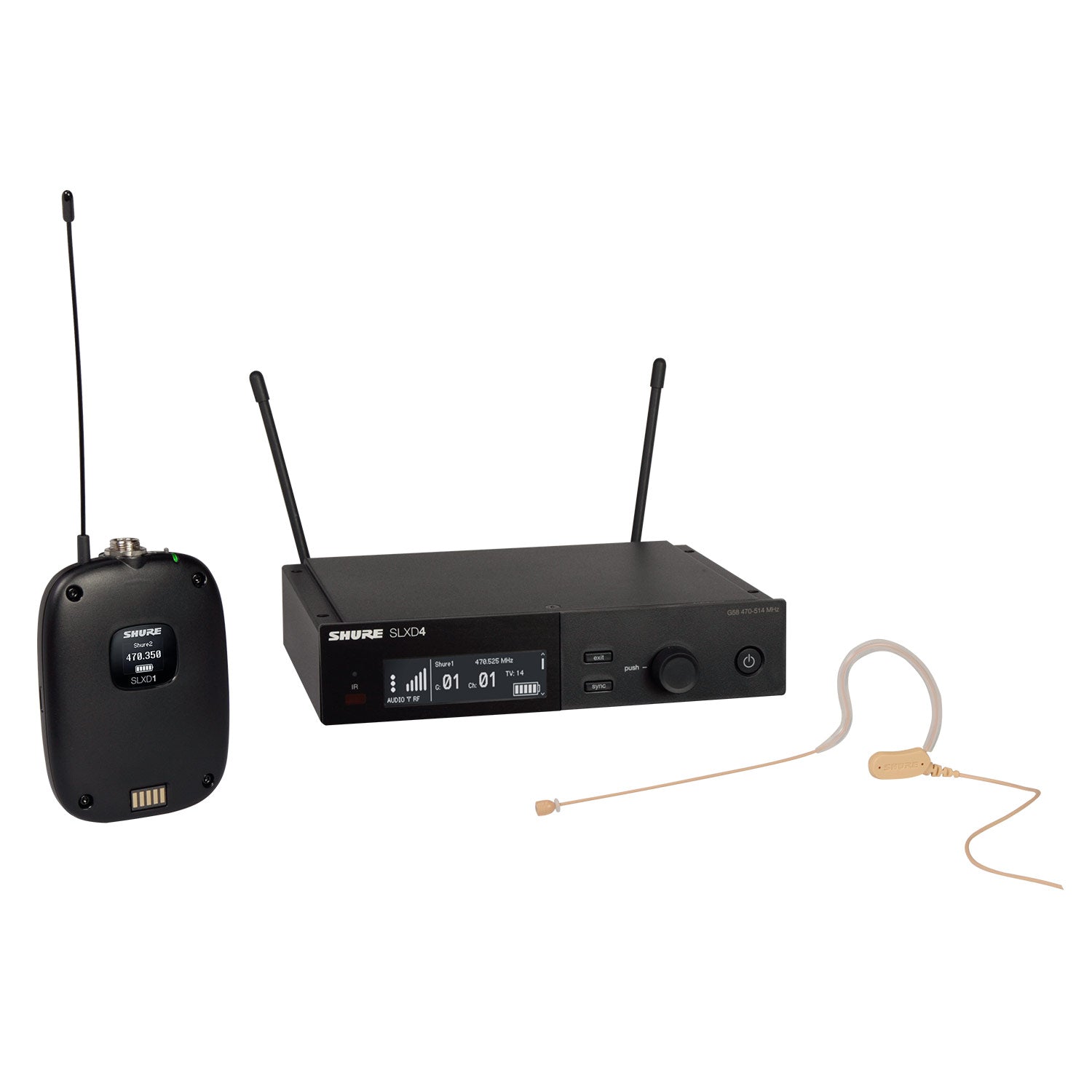

Shure SLXD14/153T Earset Wireless System with MX153T (H55 Band / 514-558 MHz)

  • Dale #:

    SHUR-SLXD14153TH55
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Wireless System with SLXD1 Bodypack Transmitter and MX153 (Tan) Omni. Condenser Earset Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

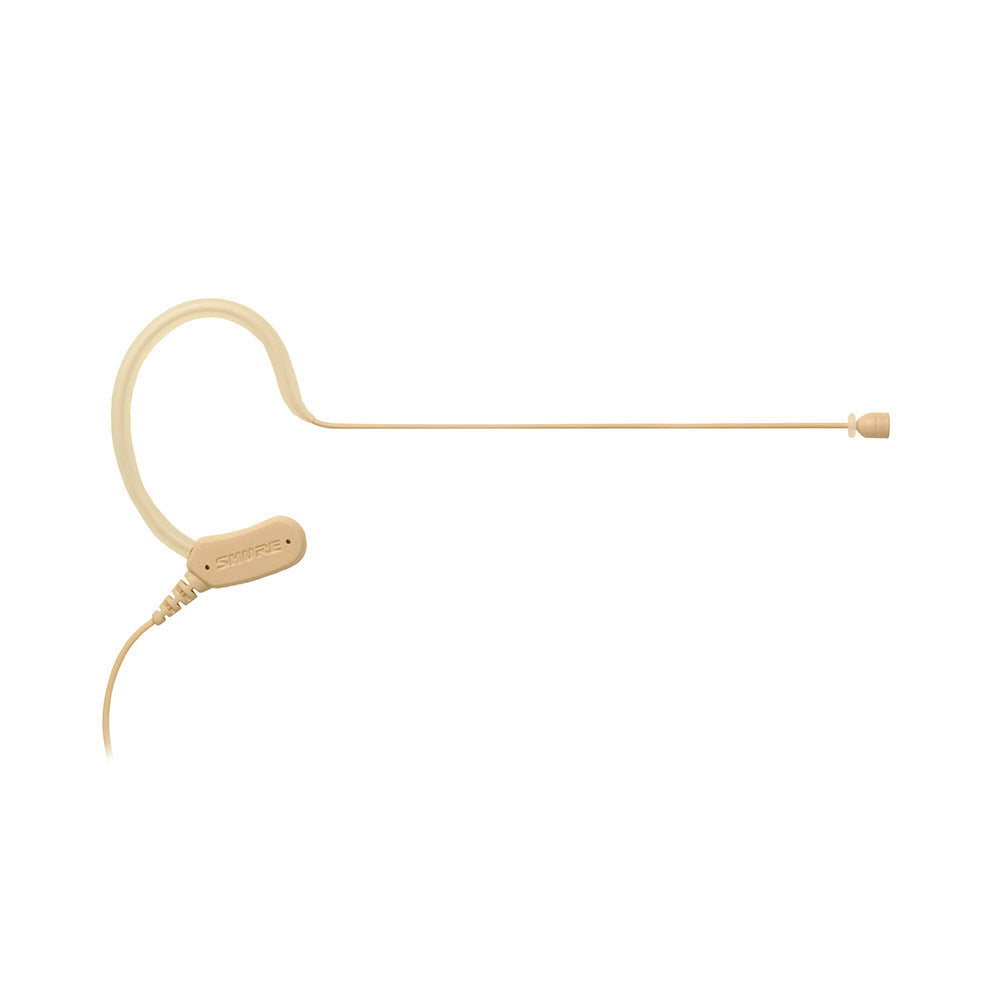

Wireless System with SLXD1 Bodypack Transmitter and MX153 (Tan) Omni. Condenser Earset

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Series Features:

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery


ALWAYS COME THROUGH CLEAR
In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with over 120 dB dynamic range.

DROPOUTS ARE OUT
From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

KEEP THE SHOW GOING
Ready to perform for all-day conferences and nighttime performances - up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

Applications:

  • Event, Presentation and Speech
  • House of Worship
  • Performance and Clubs

More +

Product Specs

SYSTEM SPECIFICATIONS
RF
RF Carrier Frequency Range 470 to 514MHz (G58 Band)
514 to 558 MHz (H55 Band)
558 to 602MHz and 614 to 616MHz (J52 Band)
Working Range 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz
Image Rejection >70 dB (typical)
RF Sensitivity ?97 dBm at 10-5 BER
AUDIO
Latency 3.2 ms
Audio Frequency Response 20 Hz - 20 kHz (+1, ?2 dB)
Audio Dynamic Range (A-weighted, typical) 120 dB @1% THD
Total Harmonic Distortion <0.02%
System Audio Polarity XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.
Mic Offset Range 0 to 21 dB (in 3 dB steps)
TEMPERATURE RANGE
(Note- Battery characteristics may limit this range)
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C)
Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C)

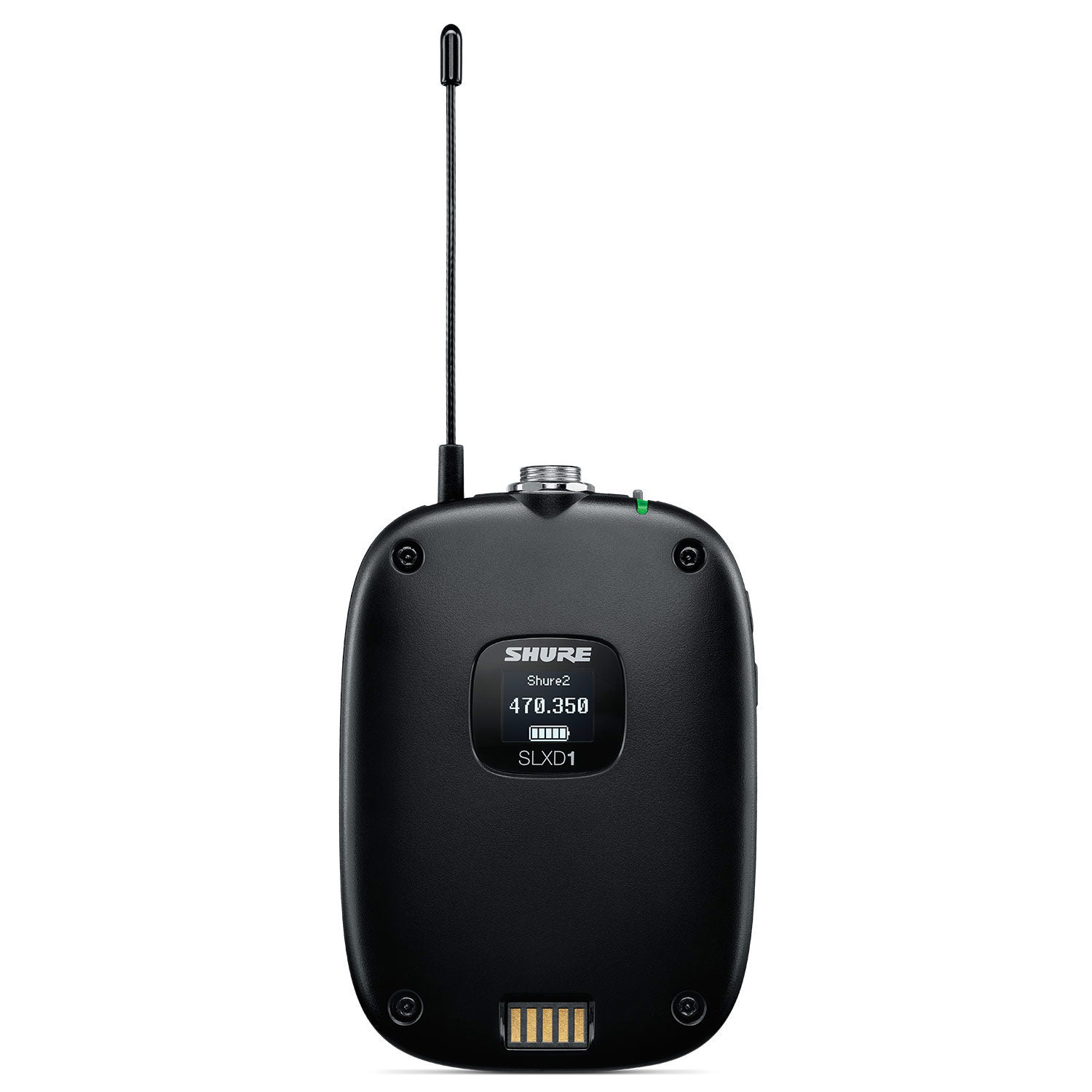

SLXD1 DIGITAL WIRELESS BODYPACK TRANSMITTER
Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (H x W x D) 3.86 x 2.68 x 1.0 in (98 x 68 x 25.5 mm)
Weight 3.1 oz (89 g)
Housing PC/ABS
AUDIO INPUT
Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced
Impedance 1 M ohm
Maximum Input Level 8.2 dBV
(2.57 Vrms, 7.27 Vpp)
Preamplifier Equivalent Input Noise (EIN) - 118 dBV
RF OUTPUT
Antenna Type 1/4 Wave
Occupied Bandwidth <200 kHz
Modulation Type Shure Propietary Digital
Power 1 mW/10 mW
Varies by region.

More +
