Shure SLXD14/UL4B - Wireless System with SLXD1 Bodypack and UL4B Lavalier Microphone (G58 Band / 470-514 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

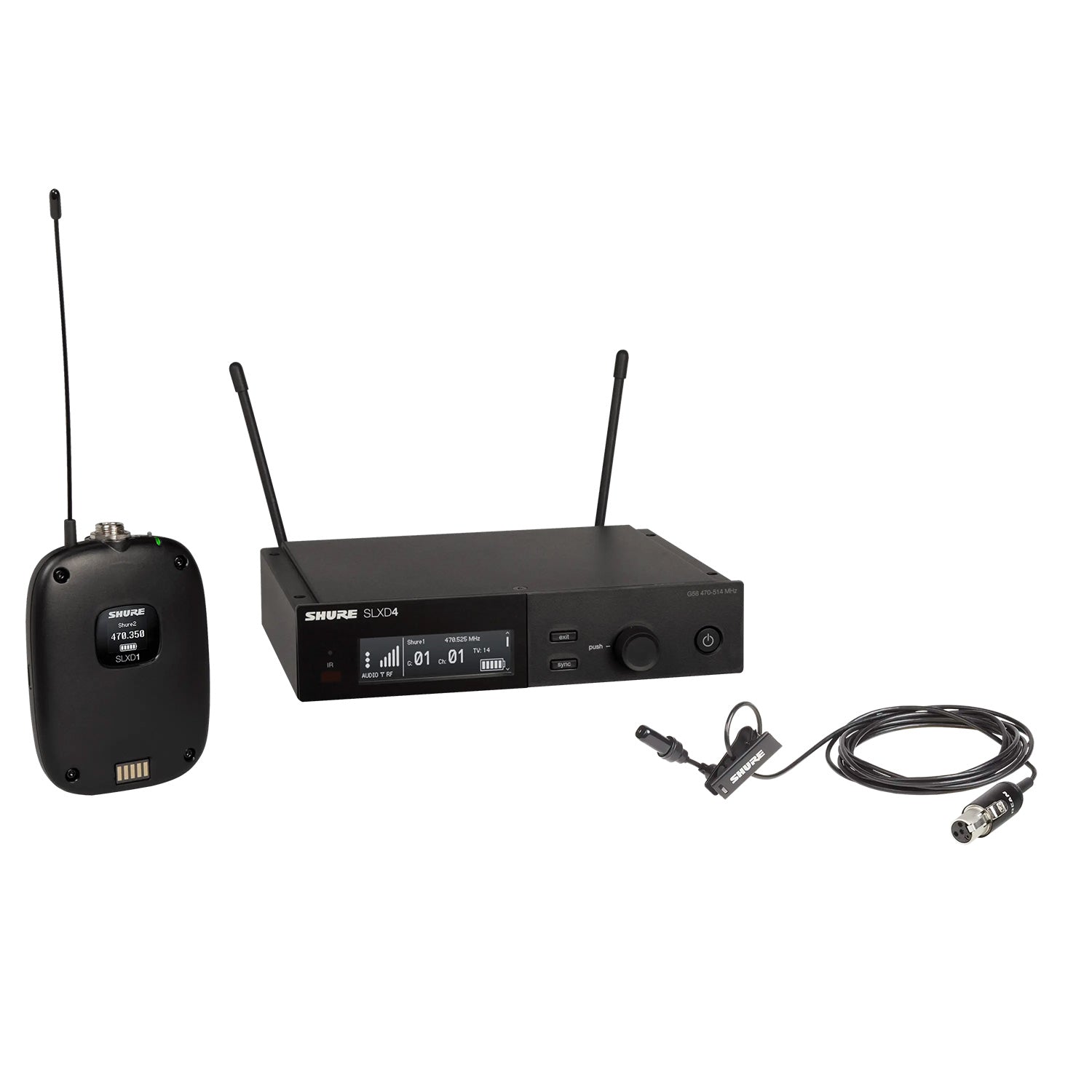

The SLXD14/DL4 Digital Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitter with UniPlex™ UL4B Cardioid Lavalier Microphone, antenna and rackmount accessories, and 2 AA batteries.
Features:
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Compatible with Shure Wireless Workbench® control software
- Remote monitoring and control via ShurePlus™ Channels app
- Rugged metal construction
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic
| SYSTEM SPECIFICATIONS | |
| RF | |
| RF Carrier Frequency Range | 470 to 514MHz (G58 Band) 514 to 558 MHz (H55 Band) 558 to 602MHz and 614 to 616MHz (J52 Band) |
| Working Range | 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz |
| Image Rejection | >70 dB (typical) |
| RF Sensitivity | ?97 dBm at 10-5 BER |
| AUDIO | |
| Latency | 3.2 ms |
| Audio Frequency Response | 20 Hz - 20 kHz (+1, ?2 dB) |
| Audio Dynamic Range (A-weighted, typical) | 120 dB @1% THD |
| Total Harmonic Distortion | <0.02% |
| System Audio Polarity | XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output. |
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| TEMPERATURE RANGE (Note- Battery characteristics may limit this range) |
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C) Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C) |
| SLXD1 DIGITAL WIRELESS BODYPACK TRANSMITTER | |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (H x W x D) | 3.86 x 2.68 x 1.0 in (98 x 68 x 25.5 mm) |
| Weight | 3.1 oz (89 g) |
| Housing | PC/ABS |
| AUDIO INPUT | |
| Connector | 4-Pin male mini connector (TA4M) |
| Configuration | Unbalanced |
| Impedance | 1 M ohm |
| Maximum Input Level | 8.2 dBV (2.57 Vrms, 7.27 Vpp) |
| Preamplifier Equivalent Input Noise (EIN) | - 118 dBV |
| RF OUTPUT | |
| Antenna Type | 1/4 Wave |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Propietary Digital |
| Power | 1 mW/10 mW Varies by region. |
The SLXD14/DL4 Digital Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitter with UniPlex™ UL4B Cardioid Lavalier Microphone, antenna and rackmount accessories, and 2 AA batteries.
Features:
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Compatible with Shure Wireless Workbench® control software
- Remote monitoring and control via ShurePlus™ Channels app
- Rugged metal construction
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic
| SYSTEM SPECIFICATIONS | |
| RF | |
| RF Carrier Frequency Range | 470 to 514MHz (G58 Band) 514 to 558 MHz (H55 Band) 558 to 602MHz and 614 to 616MHz (J52 Band) |
| Working Range | 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz |
| Image Rejection | >70 dB (typical) |
| RF Sensitivity | ?97 dBm at 10-5 BER |
| AUDIO | |
| Latency | 3.2 ms |
| Audio Frequency Response | 20 Hz - 20 kHz (+1, ?2 dB) |
| Audio Dynamic Range (A-weighted, typical) | 120 dB @1% THD |
| Total Harmonic Distortion | <0.02% |
| System Audio Polarity | XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output. |
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| TEMPERATURE RANGE (Note- Battery characteristics may limit this range) |
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C) Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C) |
| SLXD1 DIGITAL WIRELESS BODYPACK TRANSMITTER | |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (H x W x D) | 3.86 x 2.68 x 1.0 in (98 x 68 x 25.5 mm) |
| Weight | 3.1 oz (89 g) |
| Housing | PC/ABS |
| AUDIO INPUT | |
| Connector | 4-Pin male mini connector (TA4M) |
| Configuration | Unbalanced |
| Impedance | 1 M ohm |
| Maximum Input Level | 8.2 dBV (2.57 Vrms, 7.27 Vpp) |
| Preamplifier Equivalent Input Noise (EIN) | - 118 dBV |
| RF OUTPUT | |
| Antenna Type | 1/4 Wave |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Propietary Digital |
| Power | 1 mW/10 mW Varies by region. |
