Shure SLXD15/DL4B - Portable Wireless System with DL4B Lavalier Microphone (J52 Band / 558-616 MHz)


  • Dale #:

    SHUR-SLXD15DL4BJ52
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SLXD15/DL4B Portable digital wireless bodypack system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional r... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

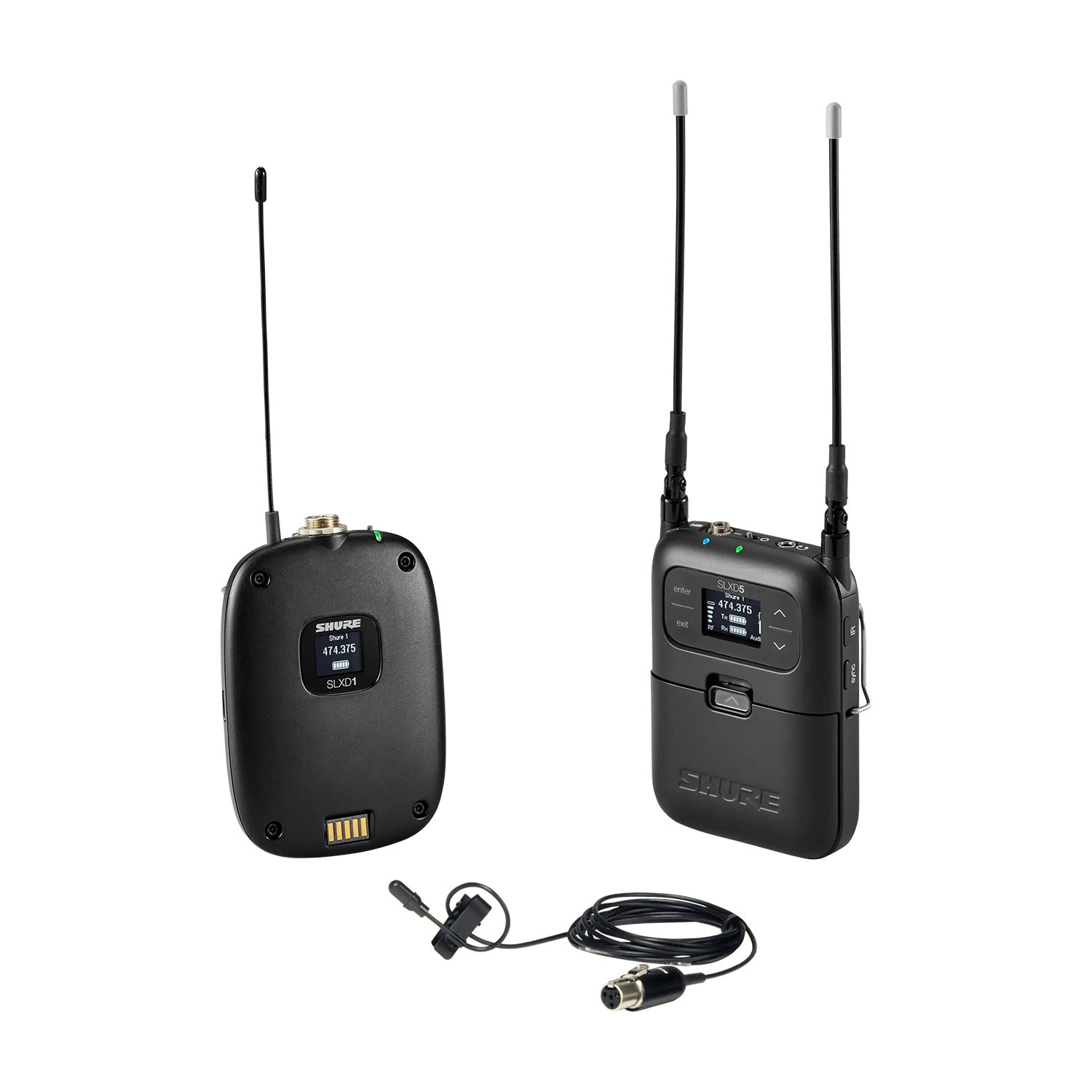

The SLXD15/DL4B Portable digital wireless bodypack system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD1 features a TQG connector for compatibility with a wide selection of lavalier microphones. Includes SLXD1 bodypack wireless transmitter, DuraPlex™ DL4B Omnidirectional Lavalier Microphone, SLXD5 single-channel portable receiver, two zippered carrying pouches and two pairs of AA alkaline batteries.

Features:

  • Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
  • Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
  • Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
  • Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Charging contacts for use with optional SBC203 docking charger
  • TQG connectivity offers a variety of microphone options
  • Rugged metal construction portable receiver design
  • Ergonomic, durable plastic construction bodypack transmitter

More +

Product Specs

SLXD1 Bodypack Transmitter
Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (H _ W _ D) 3.86 _ 2.68 _ 1.0 in
(98 _ 68 _ 25.5 mm)
Weight 3.1 oz (89 g)
Housing PC/ABS
AUDIO INPUT
Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced
Impedance 1 M½
Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Preamplifier Equivalent Input Noise (EIN) Ð118 dBV
RF OUTPUT
Antenna Type 1/4 Wave
Occupied Bandwidth <200 kHz
Modulation Type Shure Propietary Digital
Power 1 mW/10 mW Varies by region.
SLXD5 Portable Receiver
Dimensions (H _ W _ D) 4.21 _ 2.68 _ 1.0 in (107 _ 68 _ 25.3 mm)
Weight 1.8 lb (182 g)
Housing Aluminum
Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
RF INPUT
Spurious Rejection >75 dB Typical
Impedance 50 ½
Phantom Power Protection Yes
Antenna Type 1/4 Wave Whip
AUDIO OUTPUT
Audio Frequency Response 20 Hz Ð 20 kHz (+1, -3 dB)
Connector Type 1/8" (3.5 mm), _2
Configuration Balanced (Mono): Tip=audio +, Ring=audio Ð, Sleeve=ground
Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
Impedance (Camera) Balanced (Mono) Line: 450 ½
Balanced (Mono) Mic: 240 ½
Dual Mono Line: 400 ½
Dual Mono Mic: 200 ½
Full Scale Output Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64 ½ Load
In The Box 1 SLXD1 Digital Wireless Bodypack Transmitter
1 DuraPlexª DL4B Omnidirectional Lavalier Microphone
1 SLXD5 Single-Channel Portable Digital Wireless Receiver
2 Zippered Carrying Pouches
1 WA311 Non-Conductive Cold Shoe Mount Adapter
4 AA Alkaline Batteries

More +
