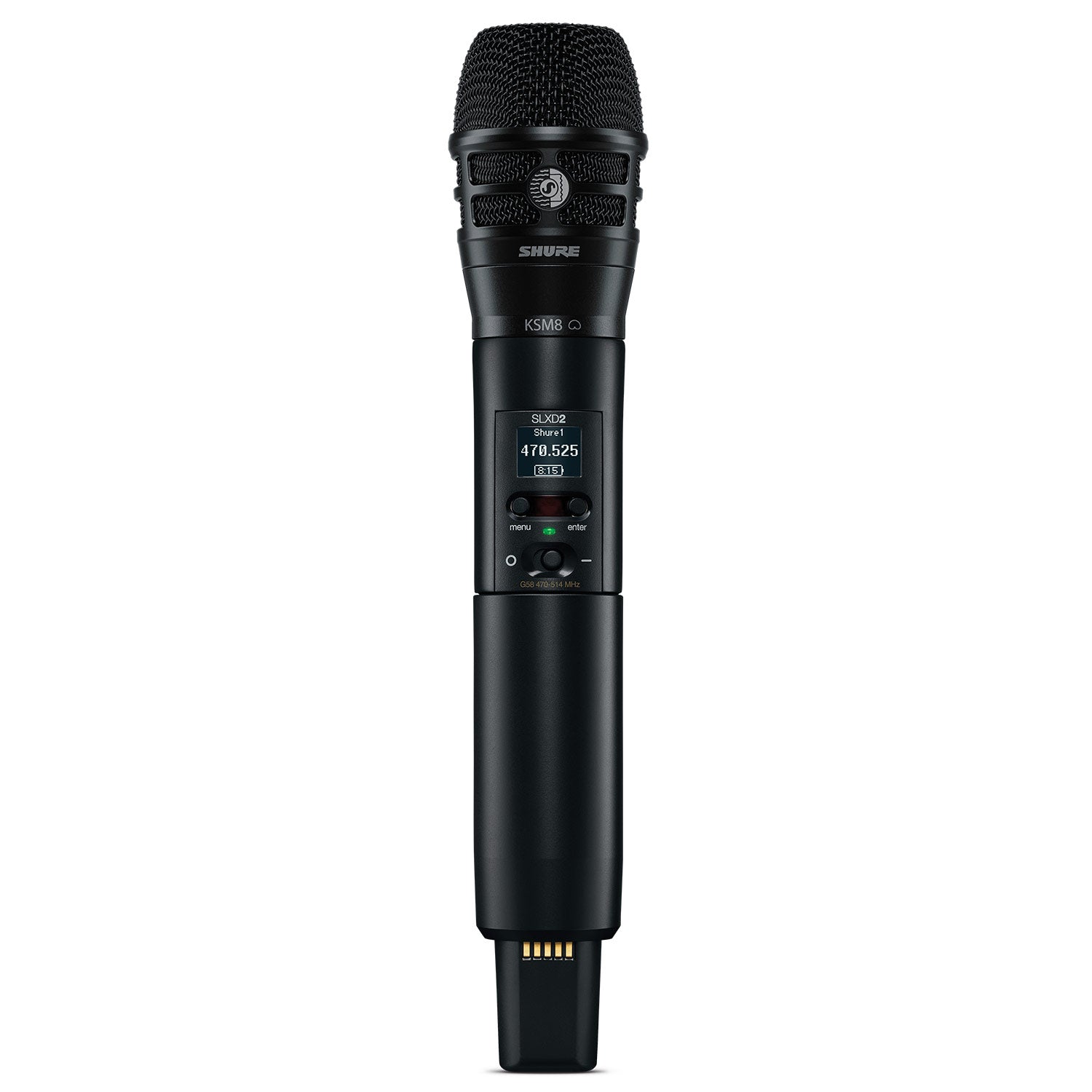

Shure SLXD2/K8B Handheld Digital Wireless Transmitter with KSM8/B (J52 Band / 558-616 MHz)


  • Dale #:

    SHUR-SLXD2K8BJ52
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Wireless Transmitter with KSM8 Dual-Diaphragm Dynamic Vocal Microphone SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry- leading di... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Wireless Transmitter with KSM8 Dual-Diaphragm Dynamic Vocal Microphone

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry- leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

Features:

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz bandv
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Interchangeable microphone capsules
  • Rugged metal construction

More +

Product Specs

SYSTEM SPECIFICATIONS
RF
RF Carrier Frequency Range 470 to 514MHz (G58 Band)
514 to 558 MHz (H55 Band)
558 to 602MHz and 614 to 616MHz (J52 Band)
Working Range 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz
Image Rejection >70 dB (typical)
RF Sensitivity ?97 dBm at 10-5 BER
AUDIO
Latency 3.2 ms
Audio Frequency Response 20 Hz - 20 kHz (+1, ?2 dB)
Audio Dynamic Range (A-weighted, typical) 120 dB @1% THD
Total Harmonic Distortion <0.02%
System Audio Polarity XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.
Mic Offset Range 0 to 21 dB (in 3 dB steps)
TEMPERATURE RANGE
(Note- Battery characteristics may limit this range)
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C)
Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C)
SLXD4 DIGITAL WIRELESS RECEIVER
Dimensions (H x W x D) 1.65 x 7.76 x 5.98 in (42 x 197 x 152 mm)
Weight 1.8 lb (816 g) (without antennas)
Housing Galvanized Steel
Power Requirements 15 VDC @ 600 mA
Supplied by external power supply (tip positive)
RF INPUT
Spurious Rejection >75 dB Typical
Connector Type BNC
Impedance 50 ohm
AUDIO OUTPUT
Gain Adjustment Range - 18 to +42 dB in 1 dB steps
Configuration 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio - , Sleeve = ground)
XLR: Balanced
(1=ground, 2=audio +, 3=audio - )
Impedance 1/4" (6.35 mm): 1.3 k ohm (670 ohm Unbalanced)
XLR (line): 400 ohm (200 ohm Unbalanced)
XLR (mic): 150 ohm
Full Scale Output 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
XLR (LINE setting): +15 dBV XLR (MIC setting): - 15 dBV
Mic/Line Switch 30 dB pad
Phantom Power Protection 1/4" (6.35 mm): Yes
XLR: Yes
NETWORKING
Network Interface Single Port Ethernet 10/100 Mbps
Network Addressing Capability DHCP or Manual IP address
Maximum Cable Length 100 m (328 ft)
SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER
Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (Dia. x L) 1.46 x 6.93 in (37.1 x 176 mm)
Weight 5.2 oz. (147 g)
Housing Aluminum
AUDIO INPUT
Configuration Unbalanced
Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Note: Dependent on Microphone Type
RF OUTPUT
Antenna Type Integrated Single-Band Helical
Occupied Bandwidth <200 kHz
Modulation Type Shure Propietary Digital
Power 1 mW/10 mW
Varies by region.
See Frequency Range and Output Power Table.
