DALE SKU # SHUR-SLXD2N8SBG58

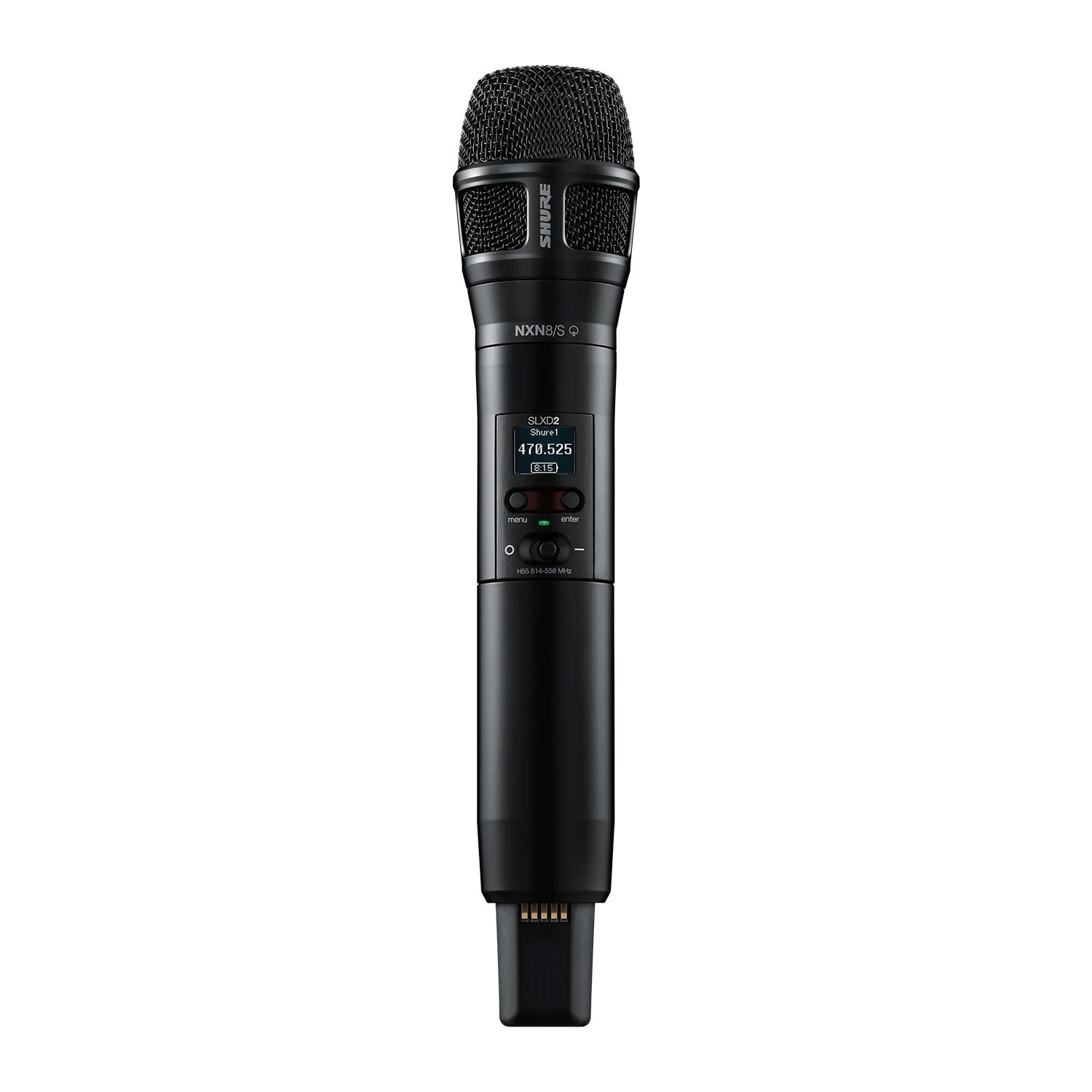

Shure SLXD2/N8S - Handheld Digital Wireless Transmitter with N8 (G58 Band / 470-514 MHz)

Sale price$529.00 Regular price$662.00
Save $133.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Wireless Transmitter with N8 Supercardioid Vocal Microphone

    SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry- leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

    Features:

    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz bandv
    • Easy pairing of transmitters and receivers over scan and IR sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
    SYSTEM SPECIFICATIONS
    RF
    RF Carrier Frequency Range 470 to 514MHz (G58 Band)
    514 to 558 MHz (H55 Band)
    558 to 602MHz and 614 to 616MHz (J52 Band)
    Working Range 100 m (328 ft)
    Note: Actual range depends on RF signal absorption, reflection and interference.
    RF Tuning Step Size 25 kHz
    Image Rejection >70 dB (typical)
    RF Sensitivity ?97 dBm at 10-5 BER
    AUDIO
    Latency 3.2 ms
    Audio Frequency Response 20 Hz - 20 kHz (+1, ?2 dB)
    Audio Dynamic Range (A-weighted, typical) 120 dB @1% THD
    Total Harmonic Distortion <0.02%
    System Audio Polarity XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.
    Mic Offset Range 0 to 21 dB (in 3 dB steps)
    TEMPERATURE RANGE
    (Note- Battery characteristics may limit this range)
    Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C)
    Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C)
    SLXD4 DIGITAL WIRELESS RECEIVER
    Dimensions (H x W x D) 1.65 x 7.76 x 5.98 in (42 x 197 x 152 mm)
    Weight 1.8 lb (816 g) (without antennas)
    Housing Galvanized Steel
    Power Requirements 15 VDC @ 600 mA
    Supplied by external power supply (tip positive)
    RF INPUT
    Spurious Rejection >75 dB Typical
    Connector Type BNC
    Impedance 50 ohm
    AUDIO OUTPUT
    Gain Adjustment Range - 18 to +42 dB in 1 dB steps
    Configuration 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio - , Sleeve = ground)
    XLR: Balanced
    (1=ground, 2=audio +, 3=audio - )
    Impedance 1/4" (6.35 mm): 1.3 k ohm (670 ohm Unbalanced)
    XLR (line): 400 ohm (200 ohm Unbalanced)
    XLR (mic): 150 ohm
    Full Scale Output 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
    XLR (LINE setting): +15 dBV XLR (MIC setting): - 15 dBV
    Mic/Line Switch 30 dB pad
    Phantom Power Protection 1/4" (6.35 mm): Yes
    XLR: Yes
    NETWORKING
    Network Interface Single Port Ethernet 10/100 Mbps
    Network Addressing Capability DHCP or Manual IP address
    Maximum Cable Length 100 m (328 ft)
    SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER
    Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
    Dimensions (Dia. x L) 1.46 x 6.93 in (37.1 x 176 mm)
    Weight 5.2 oz. (147 g)
    Housing Aluminum
    AUDIO INPUT
    Configuration Unbalanced
    Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
    Note: Dependent on Microphone Type
    RF OUTPUT
    Antenna Type Integrated Single-Band Helical
    Occupied Bandwidth <200 kHz
    Modulation Type Shure Propietary Digital
    Power 1 mW/10 mW
    Varies by region.
    See Frequency Range and Output Power Table.

    Wireless Transmitter with N8 Supercardioid Vocal Microphone

    SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry- leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

    Features:

    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz bandv
    • Easy pairing of transmitters and receivers over scan and IR sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
    SYSTEM SPECIFICATIONS
    RF
    RF Carrier Frequency Range 470 to 514MHz (G58 Band)
    514 to 558 MHz (H55 Band)
    558 to 602MHz and 614 to 616MHz (J52 Band)
    Working Range 100 m (328 ft)
    Note: Actual range depends on RF signal absorption, reflection and interference.
    RF Tuning Step Size 25 kHz
    Image Rejection >70 dB (typical)
    RF Sensitivity ?97 dBm at 10-5 BER
    AUDIO
    Latency 3.2 ms
    Audio Frequency Response 20 Hz - 20 kHz (+1, ?2 dB)
    Audio Dynamic Range (A-weighted, typical) 120 dB @1% THD
    Total Harmonic Distortion <0.02%
    System Audio Polarity XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.
    Mic Offset Range 0 to 21 dB (in 3 dB steps)
    TEMPERATURE RANGE
    (Note- Battery characteristics may limit this range)
    Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C)
    Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C)
    SLXD4 DIGITAL WIRELESS RECEIVER
    Dimensions (H x W x D) 1.65 x 7.76 x 5.98 in (42 x 197 x 152 mm)
    Weight 1.8 lb (816 g) (without antennas)
    Housing Galvanized Steel
    Power Requirements 15 VDC @ 600 mA
    Supplied by external power supply (tip positive)
    RF INPUT
    Spurious Rejection >75 dB Typical
    Connector Type BNC
    Impedance 50 ohm
    AUDIO OUTPUT
    Gain Adjustment Range - 18 to +42 dB in 1 dB steps
    Configuration 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio - , Sleeve = ground)
    XLR: Balanced
    (1=ground, 2=audio +, 3=audio - )
    Impedance 1/4" (6.35 mm): 1.3 k ohm (670 ohm Unbalanced)
    XLR (line): 400 ohm (200 ohm Unbalanced)
    XLR (mic): 150 ohm
    Full Scale Output 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
    XLR (LINE setting): +15 dBV XLR (MIC setting): - 15 dBV
    Mic/Line Switch 30 dB pad
    Phantom Power Protection 1/4" (6.35 mm): Yes
    XLR: Yes
    NETWORKING
    Network Interface Single Port Ethernet 10/100 Mbps
    Network Addressing Capability DHCP or Manual IP address
    Maximum Cable Length 100 m (328 ft)
    SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER
    Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
    Dimensions (Dia. x L) 1.46 x 6.93 in (37.1 x 176 mm)
    Weight 5.2 oz. (147 g)
    Housing Aluminum
    AUDIO INPUT
    Configuration Unbalanced
    Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
    Note: Dependent on Microphone Type
    RF OUTPUT
    Antenna Type Integrated Single-Band Helical
    Occupied Bandwidth <200 kHz
    Modulation Type Shure Propietary Digital
    Power 1 mW/10 mW
    Varies by region.
    See Frequency Range and Output Power Table.
