Shure SLXD25/SM58 - Portable Wireless System With SM58 Handheld (H55 Band / 514-558 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

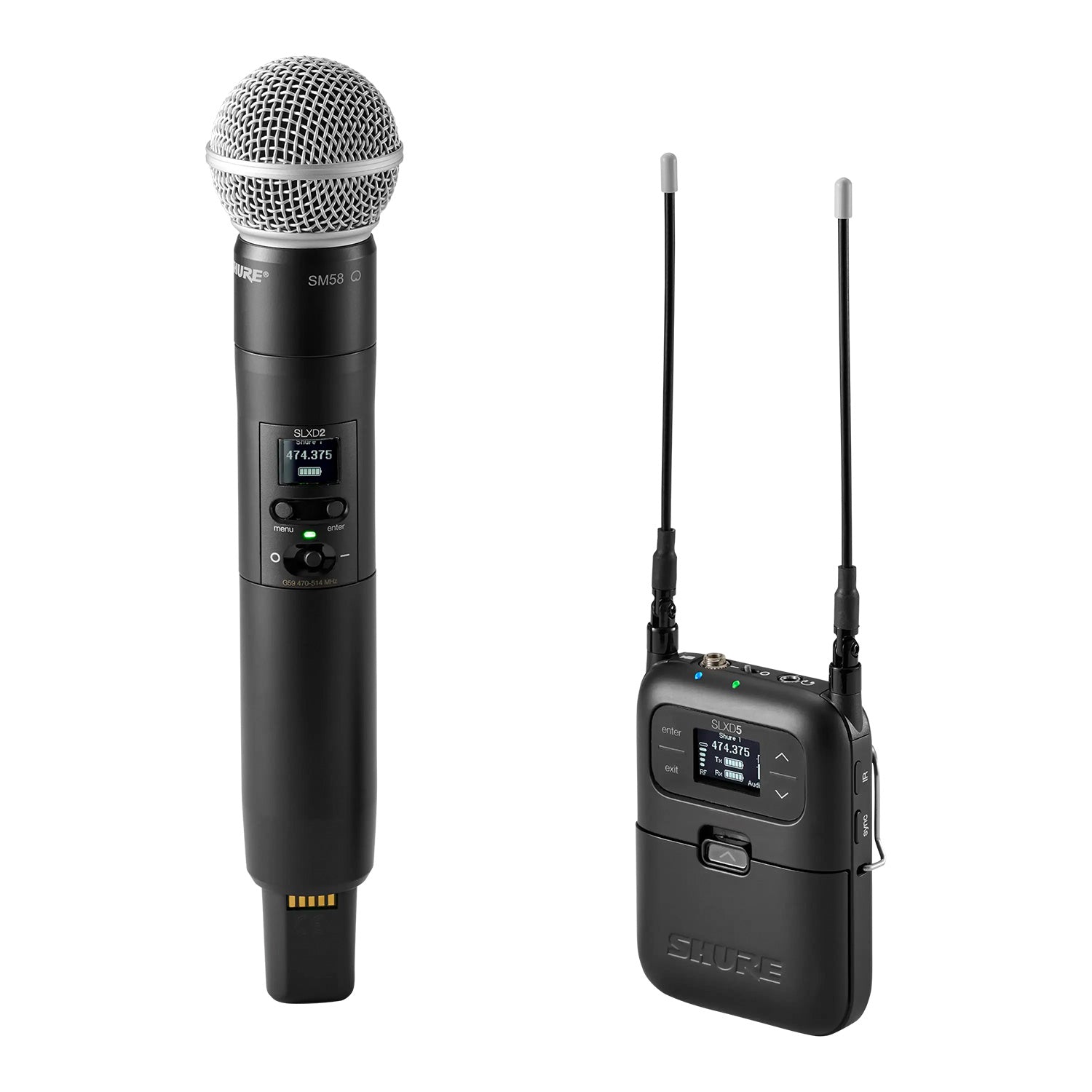

The SLXD25/SM58 Portable digital wireless handheld system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD2 features interchangeable microphone capsules for use with a wide selection of Shure vocal microphones. Includes SLXD2 handheld wireless transmitter with SM58® Cardioid Dynamic Vocal Microphone, SLXD5 single-channel portable receiver, two zippered carrying pouches and two pairs of AA alkaline batteries.
Features:
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Charging contacts for use with optional SBC203 docking charger (SLXD2/SM58 only)
- Interchangeable microphone capsules
- Rugged metal construction of portable receiver and handheld transmitter
| SLXD2 Handheld Transmitter | |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (Dia. _ L) | 1.46 _ 6.93 in (37.1 _ 176 mm) |
| Weight | 5.2 oz. (147 g) |
| Housing | Aluminum |
| AUDIO INPUT | |
| Configuration | Unbalanced |
| Maximum Input Level | 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type |
| Phantom Power |
+48 V (7 mA maximum) +12 V (15 mA maximum) |
| RF OUTPUT | |
| Antenna Type | Integrated Single-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Propietary Digital |
| Power | 1 mW/10 mW Varies by region. |
| SLXD5 Portable Receiver | |
| Dimensions (H _ W _ D) | 4.21 _ 2.68 _ 1.0 in (107 _ 68 _ 25.3 mm) |
| Weight | 1.8 lb (182 g) |
| Housing | Aluminum |
| Power Requirements | Battery: Rechargeable Li-Ion or 1.5 V AA batteries Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C |
| RF INPUT | |
| Spurious Rejection | >75 dB Typical |
| Impedance | 50 ½ |
| Phantom Power Protection | Yes |
| Antenna Type | 1/4 Wave Whip |
| AUDIO OUTPUT | |
| Audio Frequency Response | 20 Hz Ð 20 kHz (+1, -3 dB) |
| Connector Type | 1/8" (3.5 mm), _2 |
| Configuration | Balanced (Mono): Tip=audio +, Ring=audio Ð, Sleeve=ground Dual Mono: Tip = left, Ring = Right, Sleeve = Ground |
| Impedance (Camera) | Balanced (Mono) Line: 450 ½ Balanced (Mono) Mic: 240 ½ Dual Mono Line: 400 ½ Dual Mono Mic: 200 ½ |
| Full Scale Output | Camera (Balanced Line): 15 dBV Headphone: 13 mW @ 64 ½ Load |
| In The Box |
|
The SLXD25/SM58 Portable digital wireless handheld system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD2 features interchangeable microphone capsules for use with a wide selection of Shure vocal microphones. Includes SLXD2 handheld wireless transmitter with SM58® Cardioid Dynamic Vocal Microphone, SLXD5 single-channel portable receiver, two zippered carrying pouches and two pairs of AA alkaline batteries.
Features:
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Charging contacts for use with optional SBC203 docking charger (SLXD2/SM58 only)
- Interchangeable microphone capsules
- Rugged metal construction of portable receiver and handheld transmitter
| SLXD2 Handheld Transmitter | |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (Dia. _ L) | 1.46 _ 6.93 in (37.1 _ 176 mm) |
| Weight | 5.2 oz. (147 g) |
| Housing | Aluminum |
| AUDIO INPUT | |
| Configuration | Unbalanced |
| Maximum Input Level | 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type |
| Phantom Power |
+48 V (7 mA maximum) +12 V (15 mA maximum) |
| RF OUTPUT | |
| Antenna Type | Integrated Single-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Propietary Digital |
| Power | 1 mW/10 mW Varies by region. |
| SLXD5 Portable Receiver | |
| Dimensions (H _ W _ D) | 4.21 _ 2.68 _ 1.0 in (107 _ 68 _ 25.3 mm) |
| Weight | 1.8 lb (182 g) |
| Housing | Aluminum |
| Power Requirements | Battery: Rechargeable Li-Ion or 1.5 V AA batteries Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C |
| RF INPUT | |
| Spurious Rejection | >75 dB Typical |
| Impedance | 50 ½ |
| Phantom Power Protection | Yes |
| Antenna Type | 1/4 Wave Whip |
| AUDIO OUTPUT | |
| Audio Frequency Response | 20 Hz Ð 20 kHz (+1, -3 dB) |
| Connector Type | 1/8" (3.5 mm), _2 |
| Configuration | Balanced (Mono): Tip=audio +, Ring=audio Ð, Sleeve=ground Dual Mono: Tip = left, Ring = Right, Sleeve = Ground |
| Impedance (Camera) | Balanced (Mono) Line: 450 ½ Balanced (Mono) Mic: 240 ½ Dual Mono Line: 400 ½ Dual Mono Mic: 200 ½ |
| Full Scale Output | Camera (Balanced Line): 15 dBV Headphone: 13 mW @ 64 ½ Load |
| In The Box |
|
