Shure SLXD25/SM58 - Portable Wireless System With SM58 Handheld (J52 Band / 558-616 MHz)


  • Dale #:

    SHUR-SLXD25SM58J52
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SLXD25/SM58 Portable digital wireless handheld system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional r... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

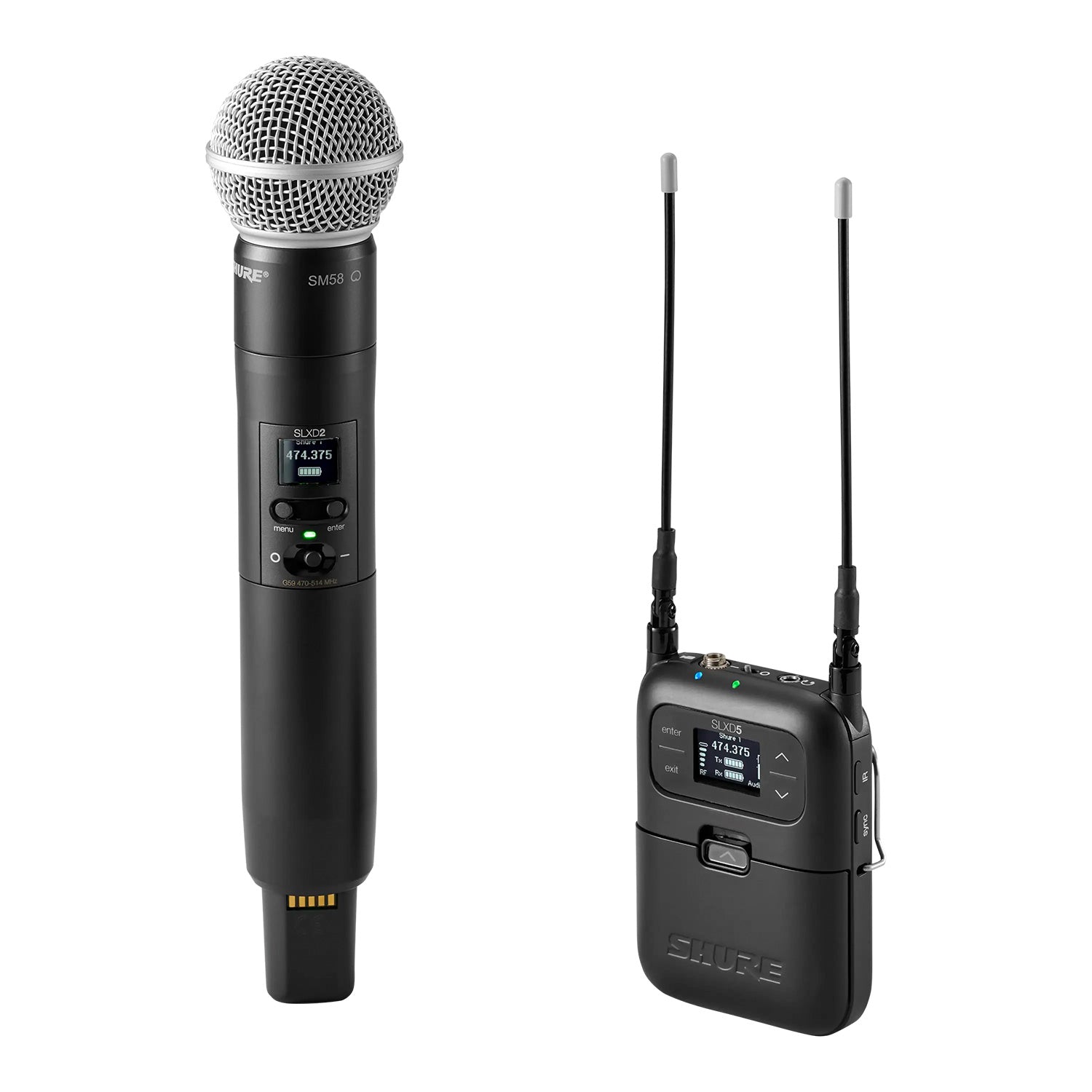

The SLXD25/SM58 Portable digital wireless handheld system delivers transparent, 24-bit digital audio and rock-solid RF performance for videographers, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD2 features interchangeable microphone capsules for use with a wide selection of Shure vocal microphones. Includes SLXD2 handheld wireless transmitter with SM58® Cardioid Dynamic Vocal Microphone, SLXD5 single-channel portable receiver, two zippered carrying pouches and two pairs of AA alkaline batteries.

Features:

  • Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
  • Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
  • Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
  • Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Charging contacts for use with optional SBC203 docking charger (SLXD2/SM58 only)
  • Interchangeable microphone capsules
  • Rugged metal construction of portable receiver and handheld transmitter

More +

Product Specs

SLXD2 Handheld Transmitter
Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (Dia. _ L) 1.46 _ 6.93 in
(37.1 _ 176 mm)
Weight 5.2 oz. (147 g)
Housing Aluminum
AUDIO INPUT
Configuration Unbalanced
Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Note: Dependent on Microphone Type
Phantom Power
+48 V (7 mA maximum)
+12 V (15 mA maximum)
RF OUTPUT
Antenna Type Integrated Single-Band Helical
Occupied Bandwidth <200 kHz
Modulation Type Shure Propietary Digital
Power 1 mW/10 mW Varies by region.
SLXD5 Portable Receiver
Dimensions (H _ W _ D) 4.21 _ 2.68 _ 1.0 in (107 _ 68 _ 25.3 mm)
Weight 1.8 lb (182 g)
Housing Aluminum
Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
RF INPUT
Spurious Rejection >75 dB Typical
Impedance 50 ½
Phantom Power Protection Yes
Antenna Type 1/4 Wave Whip
AUDIO OUTPUT
Audio Frequency Response 20 Hz Ð 20 kHz (+1, -3 dB)
Connector Type 1/8" (3.5 mm), _2
Configuration Balanced (Mono): Tip=audio +, Ring=audio Ð, Sleeve=ground
Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
Impedance (Camera) Balanced (Mono) Line: 450 ½
Balanced (Mono) Mic: 240 ½
Dual Mono Line: 400 ½
Dual Mono Mic: 200 ½
Full Scale Output Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64 ½ Load
In The Box
  • 1 SLXD2/SM58 Digital Wireless Handheld Transmitter
  • 1 SLXD5 Single-Channel Portable Digital Wireless Receiver
  • 2 Zippered Carrying Pouches
  • 1 WA311 Non-Conductive Cold Shoe Mount Adapter
  • 4 AA Alkaline Batteries

More +
