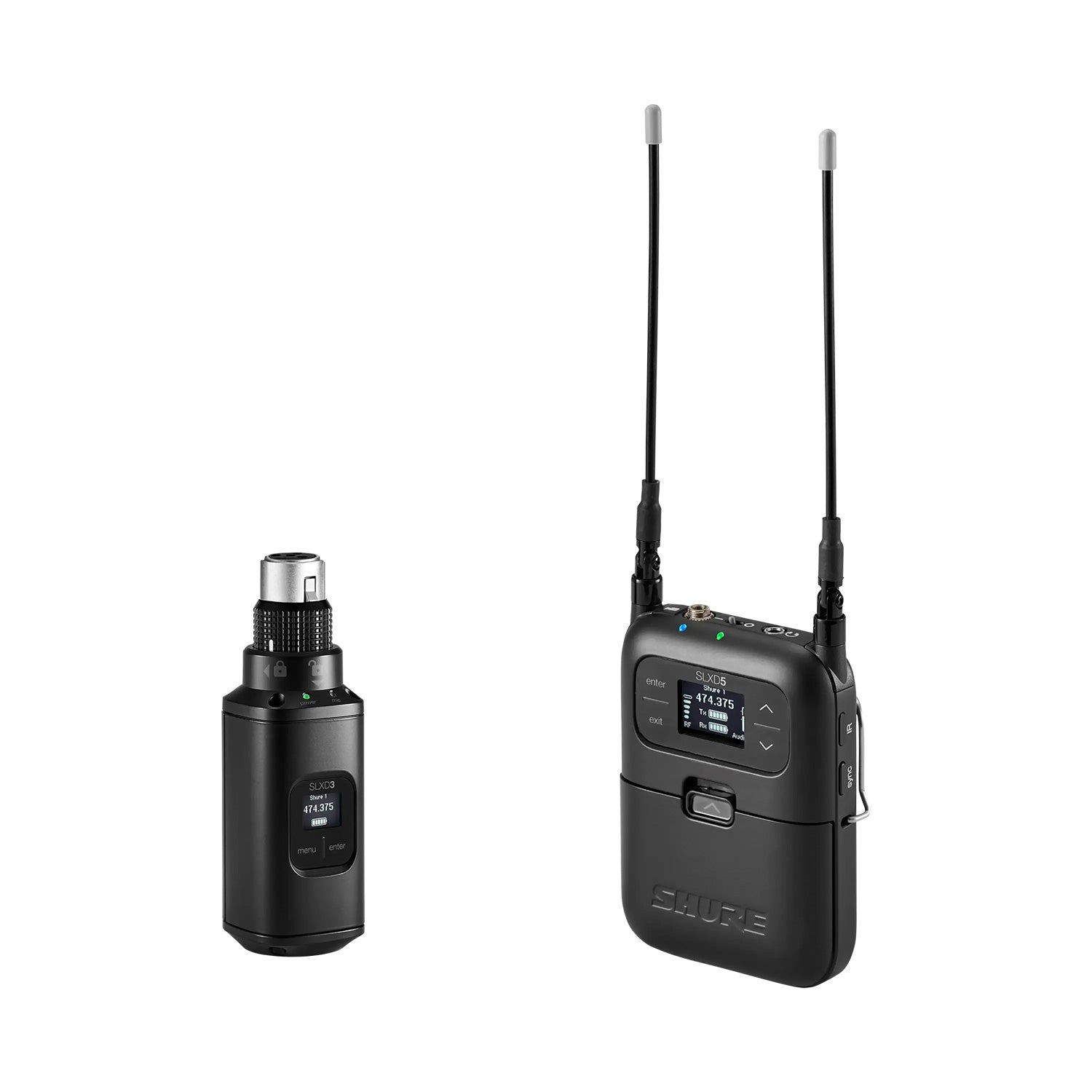

Shure SLXD35 - Portable Wireless System With Plug-On Transmitter (J52 Band / 558-616 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SLXD35 Portable digital wireless plug-on system delivers transparent, 24-bit digital audio and rock-solid RF performance for videography, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD3 features a patented lock ring mechanism for secure, wobble-free connection of any XLR source, including dynamic and condenser microphones. Includes SLXD3 plug-on wireless transmitter, SLXD5 single-channel portable receiver, zippered carrying pouch, non-conductive cold shoe adapter, leather pouch with integrated belt clip and two pairs of AA alkaline batteries.
Features:
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (SLXD3)
- Up to 6 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (SLXD5)
- Rugged metal construction of portable receiver and handheld transmitter
| SLXD3 Plug-On Transmitter | |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (H _ W _ D) | 4.9 _ 1.6 _ 1.6 in (126 _ 41 _ 41 mm) |
| Weight | 7.0 oz. (200 g) |
| Housing | Aluminum, Zinc Alloy, PC/ABS |
| AUDIO INPUT | |
| Connector | XLR |
| Maximum Input Level | Pad -12 dB: 20.5 dBV 0 dB: 8.5 dBV Boost +12 dB: -3.5 dBV Note: Dependent on Microphone Type |
| Phantom Power |
+48 V (7 mA maximum) +12 V (15 mA maximum) |
| RF OUTPUT | |
| Antenna Type | Dipole |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Propietary Digital |
| Power | 1 mW/10 mW Varies by region. |
| Specific Absorption Rate (SAR) | <0.17 W/kg |
| SLXD5 Portable Receiver | |
| Dimensions (H _ W _ D) | 4.21 _ 2.68 _ 1.0 in (107 _ 68 _ 25.3 mm) |
| Weight | 1.8 lb (182 g) |
| Housing | Aluminum |
| Power Requirements | Battery: Rechargeable Li-Ion or 1.5 V AA batteries Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C |
| RF INPUT | |
| Spurious Rejection | >75 dB Typical |
| Impedance | 50 ½ |
| Phantom Power Protection | Yes |
| Antenna Type | 1/4 Wave Whip |
| AUDIO OUTPUT | |
| Audio Frequency Response | 20 Hz Ð 20 kHz (+1, -3 dB) |
| Connector Type | 1/8" (3.5 mm), _2 |
| Configuration | Balanced (Mono): Tip=audio +, Ring=audio Ð, Sleeve=ground Dual Mono: Tip = left, Ring = Right, Sleeve = Ground |
| Impedance (Camera) | Balanced (Mono) Line: 450 ½ Balanced (Mono) Mic: 240 ½ Dual Mono Line: 400 ½ Dual Mono Mic: 200 ½ |
| Full Scale Output | Camera (Balanced Line): 15 dBV Headphone: 13 mW @ 64 ½ Load |
| In The Box |
|
The SLXD35 Portable digital wireless plug-on system delivers transparent, 24-bit digital audio and rock-solid RF performance for videography, ENG and field production, film and location sound applications. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories. The SLXD3 features a patented lock ring mechanism for secure, wobble-free connection of any XLR source, including dynamic and condenser microphones. Includes SLXD3 plug-on wireless transmitter, SLXD5 single-channel portable receiver, zippered carrying pouch, non-conductive cold shoe adapter, leather pouch with integrated belt clip and two pairs of AA alkaline batteries.
Features:
- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (SLXD3)
- Up to 6 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (SLXD5)
- Rugged metal construction of portable receiver and handheld transmitter
| SLXD3 Plug-On Transmitter | |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (H _ W _ D) | 4.9 _ 1.6 _ 1.6 in (126 _ 41 _ 41 mm) |
| Weight | 7.0 oz. (200 g) |
| Housing | Aluminum, Zinc Alloy, PC/ABS |
| AUDIO INPUT | |
| Connector | XLR |
| Maximum Input Level | Pad -12 dB: 20.5 dBV 0 dB: 8.5 dBV Boost +12 dB: -3.5 dBV Note: Dependent on Microphone Type |
| Phantom Power |
+48 V (7 mA maximum) +12 V (15 mA maximum) |
| RF OUTPUT | |
| Antenna Type | Dipole |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Propietary Digital |
| Power | 1 mW/10 mW Varies by region. |
| Specific Absorption Rate (SAR) | <0.17 W/kg |
| SLXD5 Portable Receiver | |
| Dimensions (H _ W _ D) | 4.21 _ 2.68 _ 1.0 in (107 _ 68 _ 25.3 mm) |
| Weight | 1.8 lb (182 g) |
| Housing | Aluminum |
| Power Requirements | Battery: Rechargeable Li-Ion or 1.5 V AA batteries Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C |
| RF INPUT | |
| Spurious Rejection | >75 dB Typical |
| Impedance | 50 ½ |
| Phantom Power Protection | Yes |
| Antenna Type | 1/4 Wave Whip |
| AUDIO OUTPUT | |
| Audio Frequency Response | 20 Hz Ð 20 kHz (+1, -3 dB) |
| Connector Type | 1/8" (3.5 mm), _2 |
| Configuration | Balanced (Mono): Tip=audio +, Ring=audio Ð, Sleeve=ground Dual Mono: Tip = left, Ring = Right, Sleeve = Ground |
| Impedance (Camera) | Balanced (Mono) Line: 450 ½ Balanced (Mono) Mic: 240 ½ Dual Mono Line: 400 ½ Dual Mono Mic: 200 ½ |
| Full Scale Output | Camera (Balanced Line): 15 dBV Headphone: 13 mW @ 64 ½ Load |
| In The Box |
|
