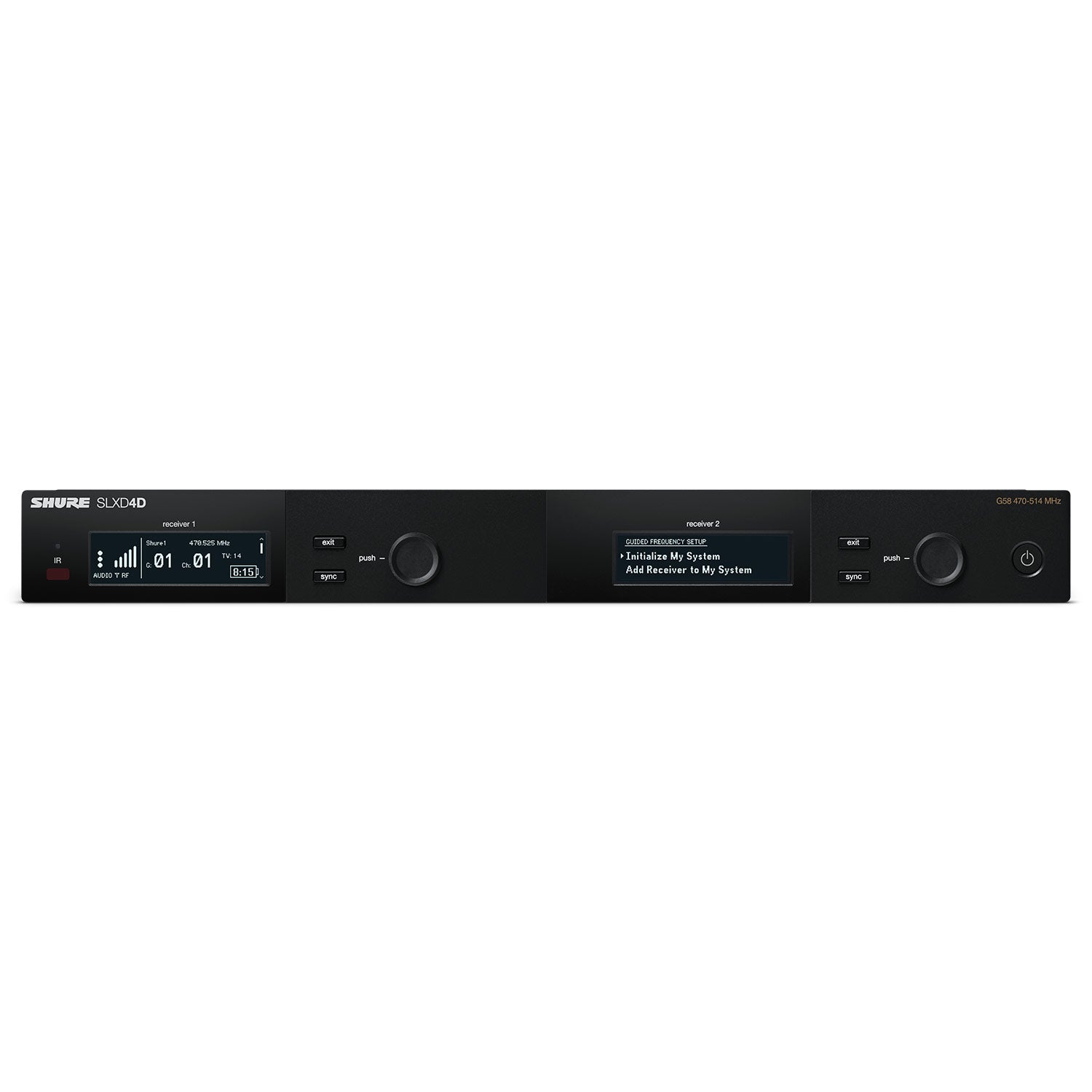

Shure SLXD4D Dual-Channel Digital Wireless Receiver (J52 Band / 558-616 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Shure SLXD4D Dual-Channel Digital Wireless Receiver (J52 Band / 558-616 MHz)
Sale price$929.00
Regular price$1,161.00
Description
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry- leading digital wireless technology and design, the SLXD4D easily syncs wireless transmitters. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
Features:
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 120 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Rugged metal construction
| SYSTEM SPECIFICATIONS | |
| RF | |
| RF Carrier Frequency Range | 470 to 514MHz (G58 Band) 514 to 558 MHz (H55 Band) 558 to 602MHz and 614 to 616MHz (J52 Band) |
| Working Range | 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz |
| Image Rejection | >70 dB (typical) |
| RF Sensitivity | ?97 dBm at 10-5 BER |
| AUDIO | |
| Latency | 3.2 ms |
| Audio Frequency Response | 20 Hz - 20 kHz (+1, ?2 dB) |
| Audio Dynamic Range (A-weighted, typical) | 120 dB @1% THD |
| Total Harmonic Distortion | <0.02% |
| System Audio Polarity | XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output. |
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| TEMPERATURE RANGE (Note- Battery characteristics may limit this range) |
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C) Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C) |
| SLXD4D DUAL-CHANNEL DIGITAL WIRELESS RECEIVER | |
| Dimensions (H x W x D) | 1.65 x 15.5 x 5.98 in (42 x 393 x 152 mm) |
| Weight | 3.2 lb (1451 g) (without antennas) |
| Housing | Galvanized Steel |
| Power Requirements | 15 VDC @ 600 mA Supplied by external power supply (tip positive) |

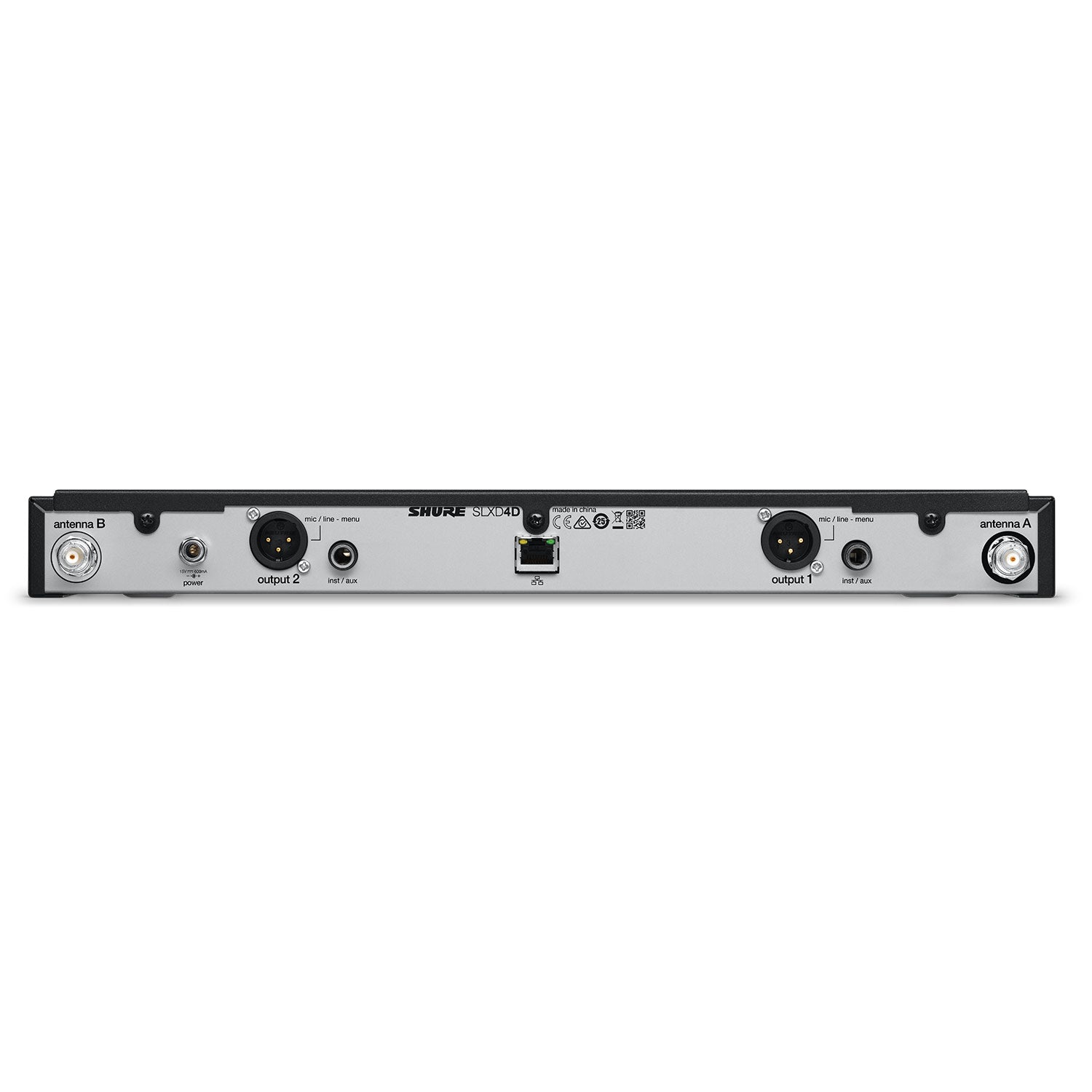

| RF INPUT | |
| Spurious Rejection | >75 dB Typical |
| Connector Type | BNC |
| Impedance | 50 ohm |
| AUDIO OUTPUT | |
| Gain Adjustment Range | - 18 to +42 dB in 1 dB steps |
| Configuration | 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio - , Sleeve = ground) XLR: Balanced (1=ground, 2=audio +, 3=audio - ) |
| Impedance | 1/4" (6.35 mm): 1.3 k ohm (670 ohm Unbalanced) XLR (line): 400 ohm (200 ohm Unbalanced) XLR (mic): 150 ohm |
| Full Scale Output | 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): - 15 dBV |
| Mic/Line Switch | 30 dB pad |
| Phantom Power Protection | 1/4" (6.35 mm): Yes XLR: Yes |
| NETWORKING | |
| Network Interface | Single Port Ethernet 10/100 Mbps |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Cable Length | 100 m (328 ft) |
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry- leading digital wireless technology and design, the SLXD4D easily syncs wireless transmitters. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
Features:
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 120 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Rugged metal construction
| SYSTEM SPECIFICATIONS | |
| RF | |
| RF Carrier Frequency Range | 470 to 514MHz (G58 Band) 514 to 558 MHz (H55 Band) 558 to 602MHz and 614 to 616MHz (J52 Band) |
| Working Range | 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz |
| Image Rejection | >70 dB (typical) |
| RF Sensitivity | ?97 dBm at 10-5 BER |
| AUDIO | |
| Latency | 3.2 ms |
| Audio Frequency Response | 20 Hz - 20 kHz (+1, ?2 dB) |
| Audio Dynamic Range (A-weighted, typical) | 120 dB @1% THD |
| Total Harmonic Distortion | <0.02% |
| System Audio Polarity | XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output. |
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| TEMPERATURE RANGE (Note- Battery characteristics may limit this range) |
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C) Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C) |
| SLXD4D DUAL-CHANNEL DIGITAL WIRELESS RECEIVER | |
| Dimensions (H x W x D) | 1.65 x 15.5 x 5.98 in (42 x 393 x 152 mm) |
| Weight | 3.2 lb (1451 g) (without antennas) |
| Housing | Galvanized Steel |
| Power Requirements | 15 VDC @ 600 mA Supplied by external power supply (tip positive) |
| RF INPUT | |
| Spurious Rejection | >75 dB Typical |
| Connector Type | BNC |
| Impedance | 50 ohm |
| AUDIO OUTPUT | |
| Gain Adjustment Range | - 18 to +42 dB in 1 dB steps |
| Configuration | 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio - , Sleeve = ground) XLR: Balanced (1=ground, 2=audio +, 3=audio - ) |
| Impedance | 1/4" (6.35 mm): 1.3 k ohm (670 ohm Unbalanced) XLR (line): 400 ohm (200 ohm Unbalanced) XLR (mic): 150 ohm |
| Full Scale Output | 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): - 15 dBV |
| Mic/Line Switch | 30 dB pad |
| Phantom Power Protection | 1/4" (6.35 mm): Yes XLR: Yes |
| NETWORKING | |
| Network Interface | Single Port Ethernet 10/100 Mbps |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Cable Length | 100 m (328 ft) |
