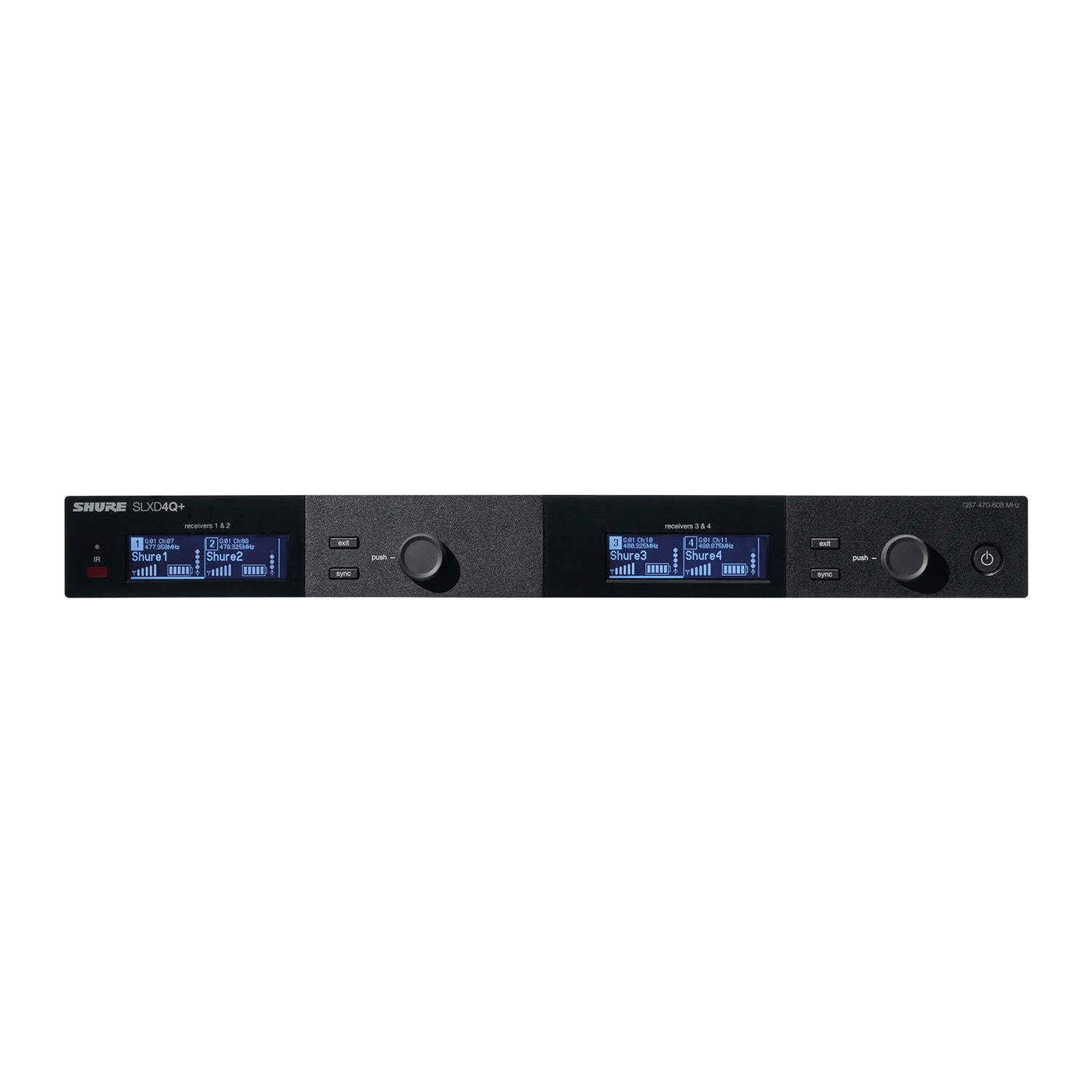

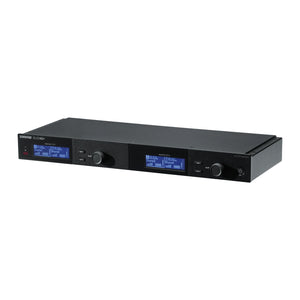

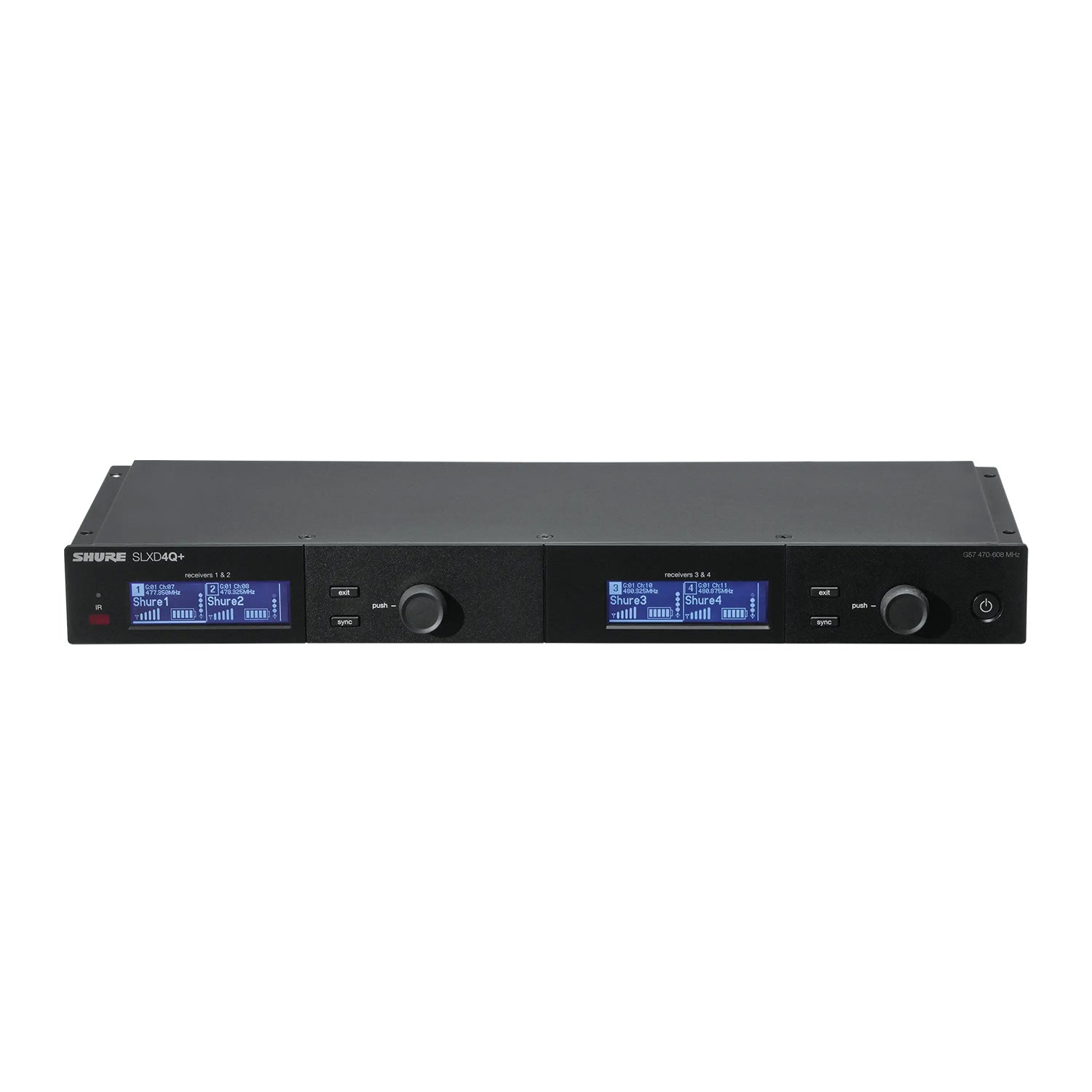

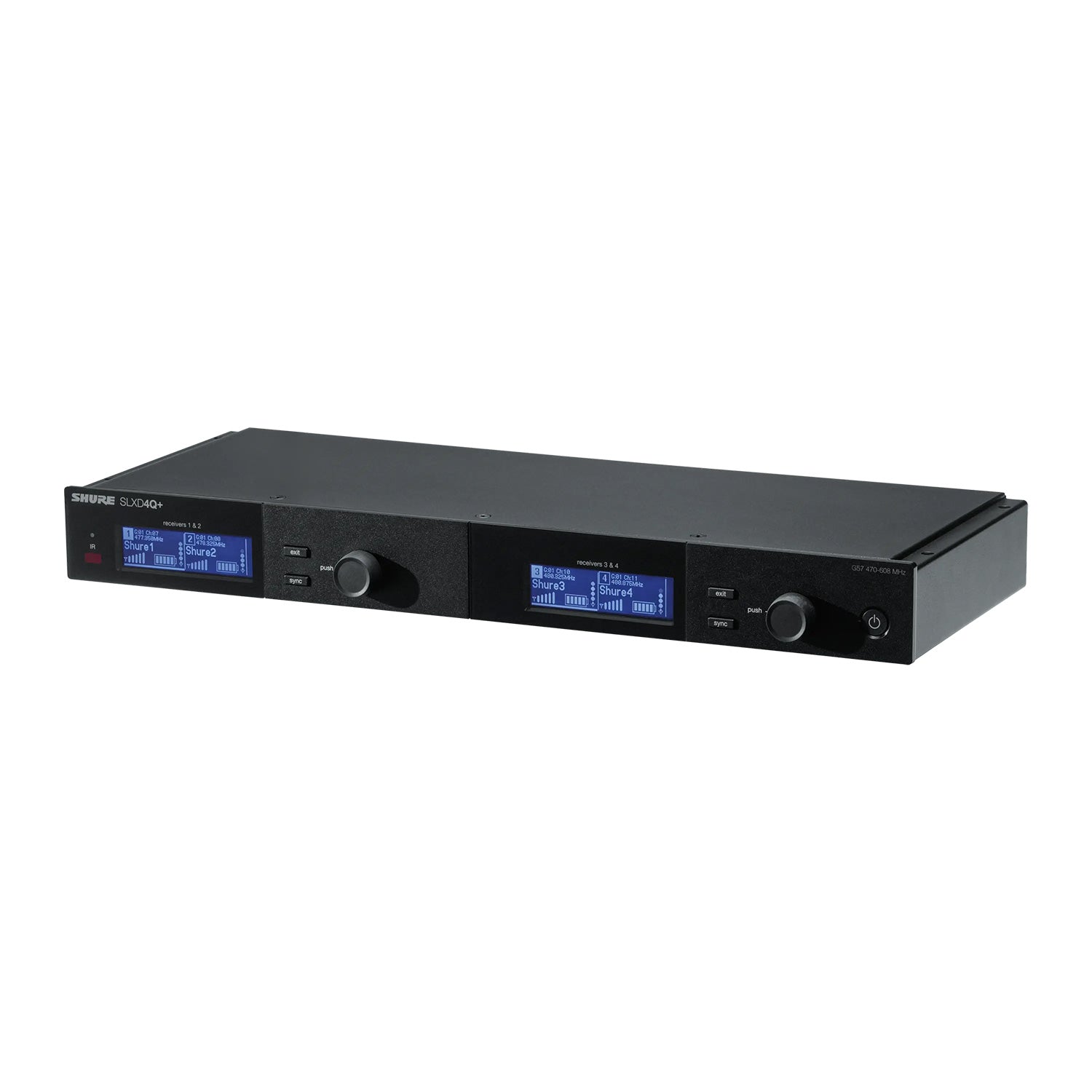

Shure SLXD4Q+ - Quad Channel Wireless Receiver for SLX-D Systems (G57 Band / 470-616 MHz)

Sale price$2,639.00 Regular price$3,299.00
Save $660.00
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SLXD4Q+ Quad Channel Receiver is the best choice for streamlining SLX-D digital wireless performance into a space-saving footprint. Featuring expanded capabilities for confident speech presentation and vocal performance - from lecture halls to live entertainment.

    SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with streamlined network-ready setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design in a convenient full-rack quad configuration, the SLXD4Q+ efficiently saves space and accessories, and easily scales to match channel requirements.

    Features:

    • Four channels in one rack space
    • Wide 138 MHz tuning range
    • 32 available channels per frequency band (region dependent)
    • Transparent 24-bit digital audio
    • 118 dB dynamic range
    • Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)

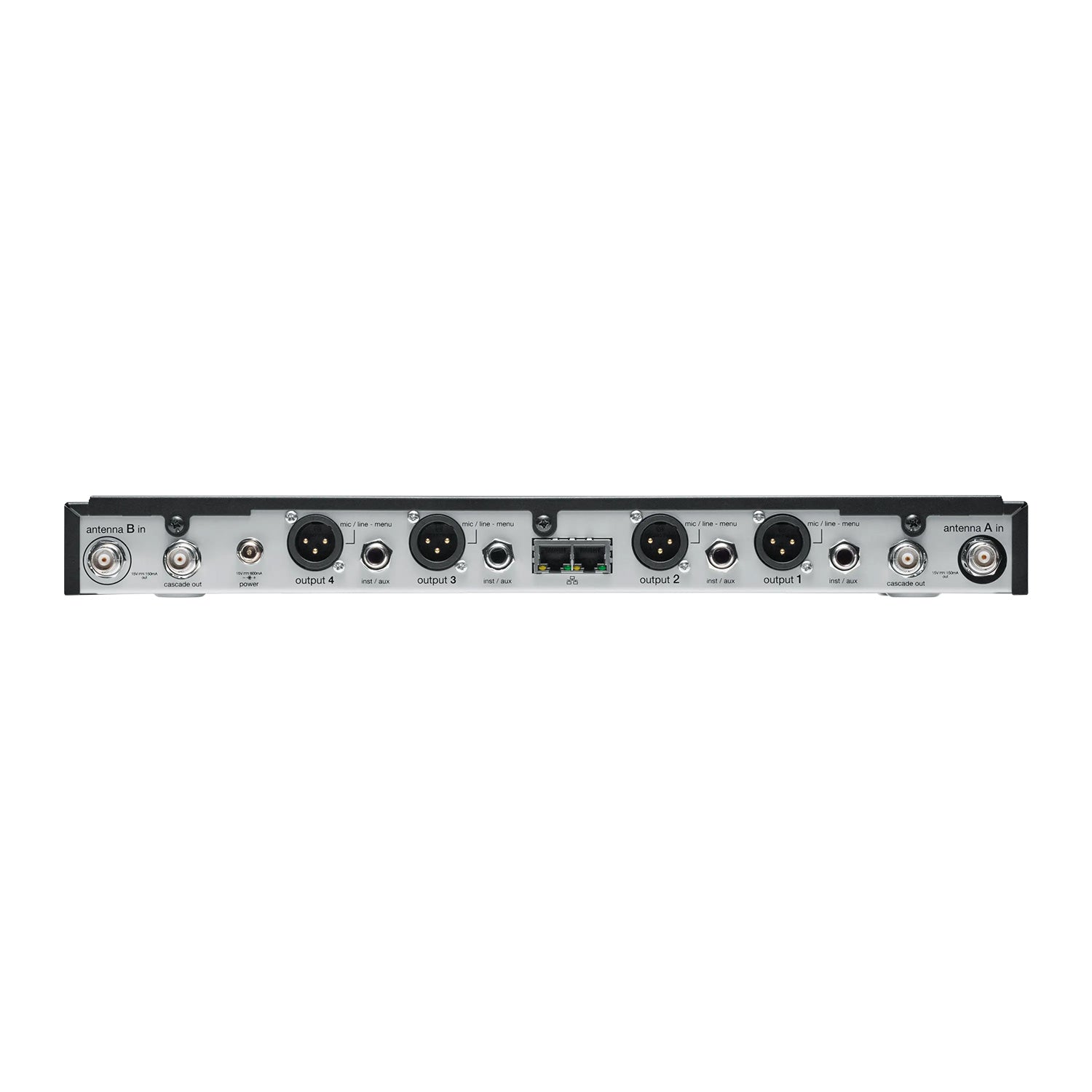

    • 4 XLR and 4 1/4" outputs and 2 local ethernet connections
    • RF Cascade creates an 8-channel system by linking two SLXD4Q+ together, no other accessories required
    • Bias Voltage power supply management
    • Digital predictive switching diversity
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Rugged metal construction
    RF Carrier Frequency Range 470Ð937.5 MHz, varies by region (See Frequency Range and Output Power table)
    Working Range 100 m ( 328 ft)
    Note: Actual range depends on RF signal absorption, reflection and interference.
    RF Tuning Step Size 25 kHz, varies by region
    JB band: 125 kHz
    Image Rejection >85 dB, typical
    RF Sensitivity _97 dBm at 10-5 BER
    System Temperatures Operating Temperature Range
    -18¡C (0¡F) to 50¡C (122¡F)
    Storage Temperature Range
    -29¡C (-20¡F) to 74¡C (165¡F)
    Note: Battery characteristics may limit this range.
    System Audio Latency 3.2 ms
    High-Pass / Low Cut Filter 150 Hz @ -12 db/oct
    Note: Factory default is for the HPF to be off
    Audio Dynamic Range 118 dB at 1% THD, A-weighted, typical
    Total Harmonic Distortion <0.02%
    System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output and the tip of the 6.35 mm (_ inch) with respect to the ring of the 6.35 mm output.
    Mic Offset Range 0 to 21 dB (in 3 dB steps)
    SLXD4Q+ Receiver Dimensions 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
    Weight 1750 g, without antennas
    Housing Galvanized Steel
    Power Requirements 15 V @ 1.03 A with Dante; 15 V @ 0.9 A without Dante
    Spurious Rejection >75 dB, typical
    Connector Type BNC
    Impedance 50 ½
    Bias Voltage 15 V DC, 150 mA maximum, per antenna, switchable on-off
    Audio Frequency Response 20 HzÐ 20 kHz (+1, -2 dB)
    Gain Adjustment Range -18 to +42 dB in 1 dB steps
    Configuration 1/4" (6.35 mm) Balanced (Tip = audio +, Ring = audio -, Sleeve = ground )
    XLR Balanced (1=ground, 2=audio +, 3=audio _)
    Impedance 1/4" (6.35 mm) 1.1 k½ (550 ½ Unbalanced)
    XLR (line) 500 ½ (250 ½ Unbalanced)
    XLR (mic) 150 ½
    Full Scale Output 1/4" (6.35 mm) +12 dBV Unbalanced, +18 dBV Balanced
    XLR LINE setting= +18 dBV, MIC setting= -12 dBV
    Mic/Line Switch 30 dB pad
    Phantom Power Protection 1/4" (6.35 mm) Yes
    XLR Yes
    Cascade Output Connector Type: BNC
    Note: For connection of one additional receiver in the same band
    Configuration: Unbalanced
    Impedance: 50 ½
    Insertion Gain: 0Ð2 dB, typical
    Networking Network Interface: 10/100 Mbps, 1 Gbps, Dante Digital Audio
    Network Addressing Capability: DHCP or Manual IP address
    Maximum Cable Length: 100 m (328 ft)
