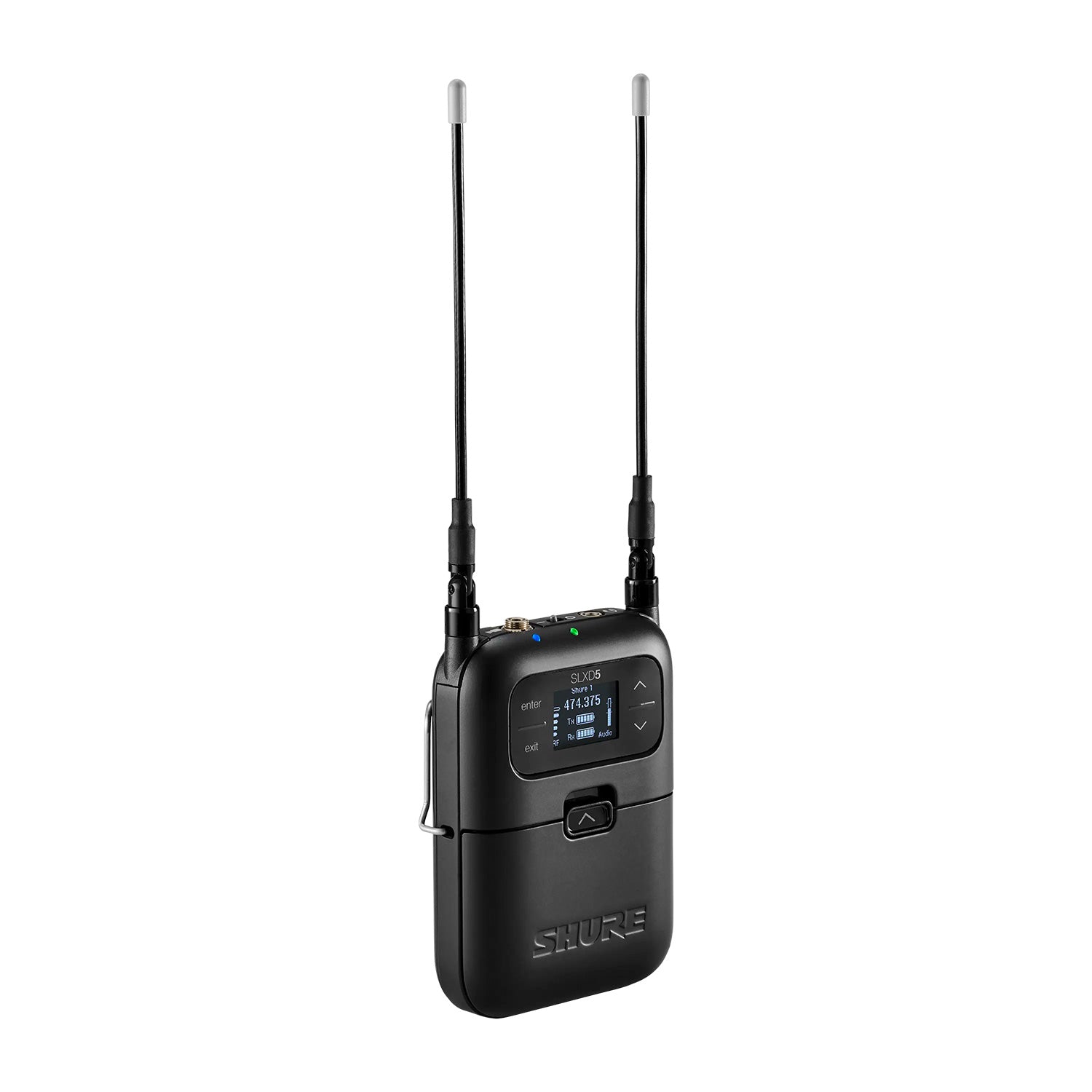

Shure SLXD5 - Single-Channel Portable Digital Wireless Receiver (H55 Band / 514-558 MHz)

  • Dale #:

    SHUR-SLXD5H55
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long-range UHF transmission and easy-to-use setup features, the SLXD5 is at home on to... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

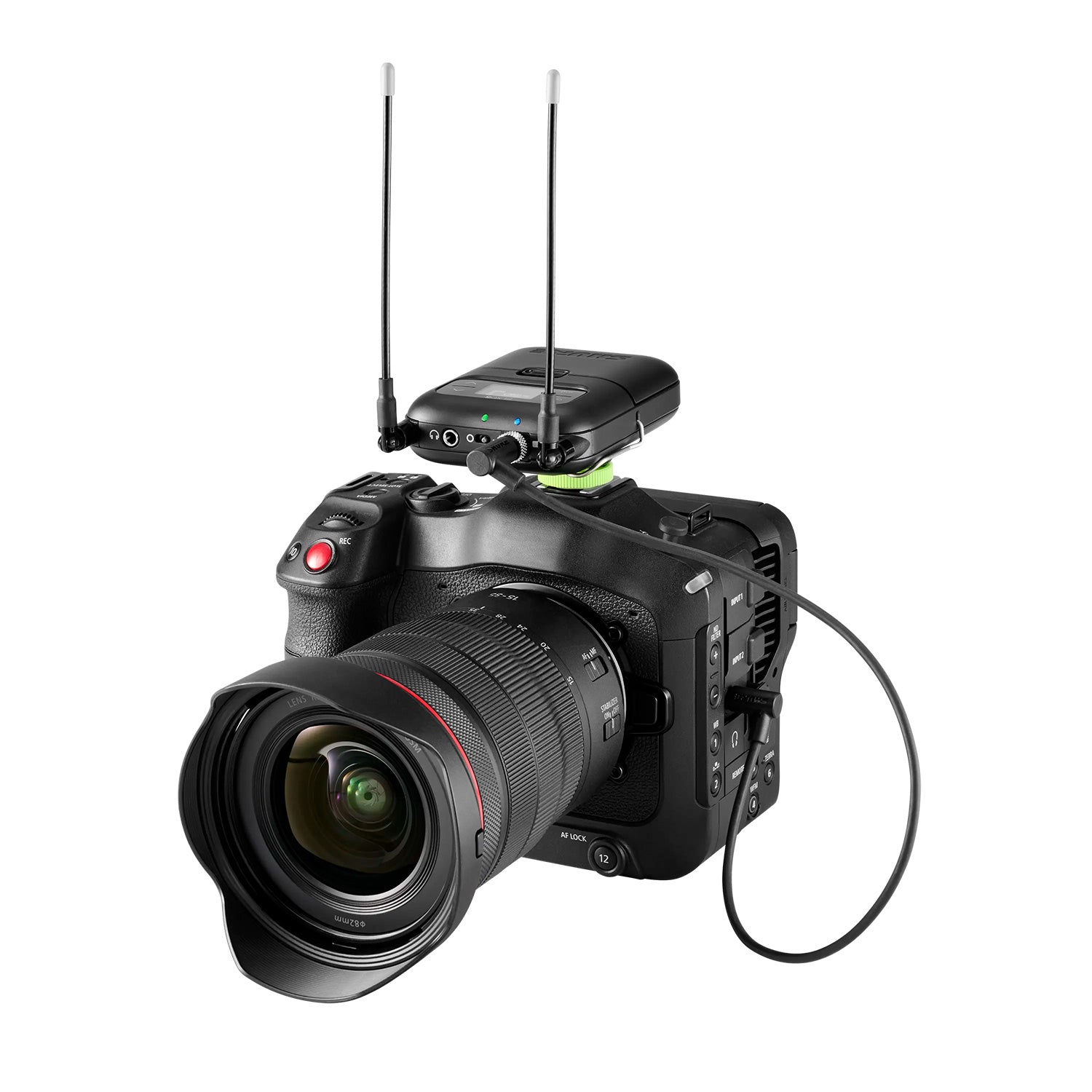

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long-range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non-conductive cold shoe mount adapter and a zippered carrying pouch.

Features:

  • Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
  • Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Over 5.5 Hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Rugged metal construction

More +

Product Specs

Dimensions (H _ W _ D) 4.21 _ 2.68 _ 1.0 in (107 _ 68 _ 25.3 mm)
Weight 1.8 lb (182 g)
Housing Aluminum
Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
RF INPUT
Spurious Rejection >75 dB Typical
Impedance 50 ½
Phantom Power Protection Yes
Antenna Type 1/4 Wave Whip
AUDIO OUTPUT
Audio Frequency Response 20 Hz Ð 20 kHz (+1, -3 dB)
Connector Type 1/8" (3.5 mm), _2
Configuration Balanced (Mono): Tip=audio +, Ring=audio Ð, Sleeve=ground
Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
Impedance (Camera) Balanced (Mono) Line: 450 ½
Balanced (Mono) Mic: 240 ½
Dual Mono Line: 400 ½
Dual Mono Mic: 200 ½
Full Scale Output Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64 ½ Load
In The Box 1 SLXD5 Single-Channel Portable Digital Wireless Transmitter
1 Zippered Carrying Pouch
1 WA311 Non-Conductive Cold Shoe Mount Adapter
2 AA Alkaline Batteries
1 Locking 3.5mm-to-XLR cable (18")
1 Locking 3.5mm audio extender cable (16")

More +
