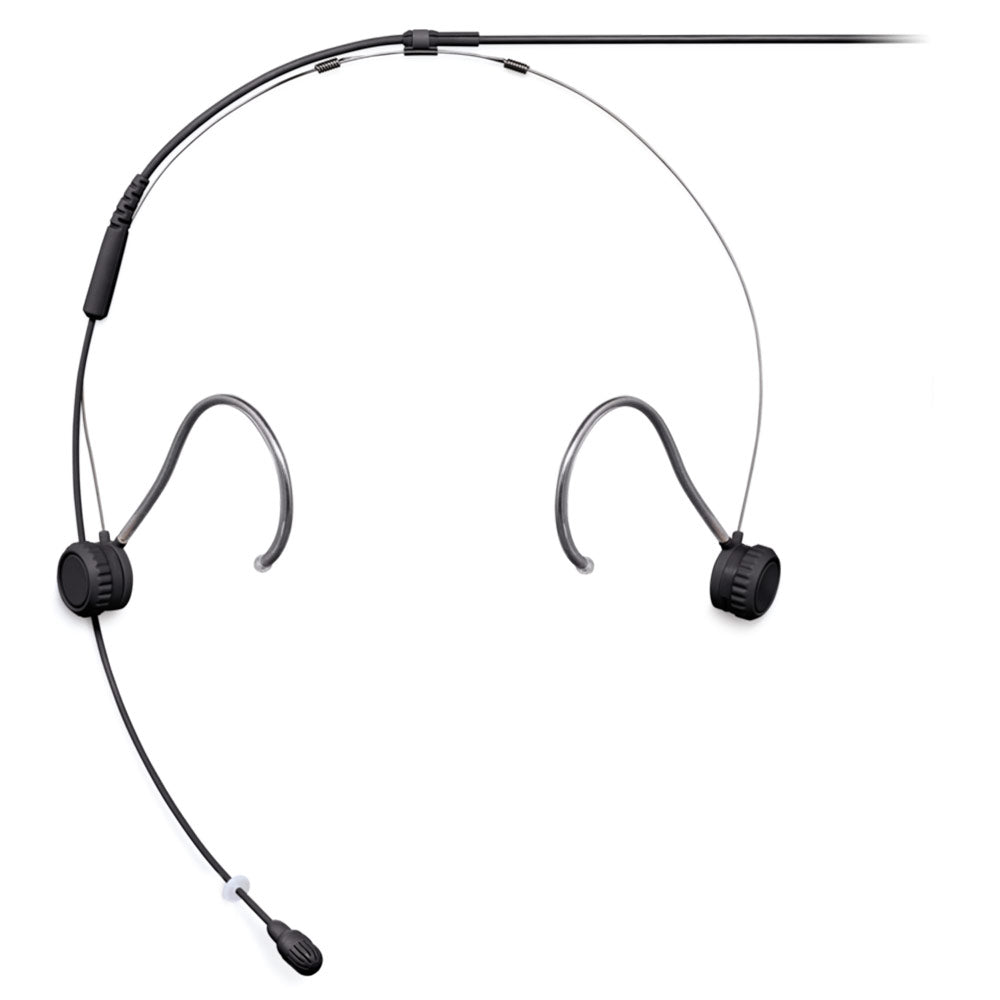

Shure TH53B/O-MDOT TwinPlex TH53 Omnidirectional Subminiature Headset Microphone (MicroDot/Black)


  • Dale #:

    SHUR-TH53BOMDOT
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The TwinPlex™ TH53 offers the natural sound of the TwinPlex element combined with the ease of an ultra-light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, swit... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The TwinPlex™ TH53 offers the natural sound of the TwinPlex element combined with the ease of an ultra-light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, switchable sides and a durable 1.6 mm cable with redundant ground round out this professional headset that overachieves in reliability, audio quality, and comfort.

Features:

  • Comfortable, lightweight, and fully adjustable headset for use in theater, broadcast, and speech applications
  • Innovative clutch system allows for fast boom arm length and pitch adjustment
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Interchangeable sweat- and moisture-resistant frequency caps prevents sweat-outs due to an invisible syperhydrophobic nanoscopic coating
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Natural
  • Sensitivity: Low
  • Colors: Tan, Cocoa, Black
  • Connectors: LEMO, MTQG/TA4F, MicroDot, NC (bare wire)
  • Accessories: Ships with accessories and storage case

In dialogue or monologue. Song or speech. A single word can affect the whole story. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more "sweat-outs." The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your headset rises to the challenge, night after night.

The TwinPlex™ TH53 offers the natural sound quality of the new TwinPlex element combined with the ease of a light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, switchable sides and a durable 1.6 mm cable with redundant ground round out this professional headset that outperforms the competition in reliability, audio quality, and comfort.

More +

Product Specs

Microphone CapsuleDual-Diaphragm, Prepolarized Condenser
Polar PatternOmnidirectional
Frequency Response20 Hz to 20 kHz
Sensitivity-45.0 dBV (5.62 mV)
Self-Noise, A-Weighted, Equivalent Acoustical24.5 dB SPL-A
Signal-To-Noise Ratio69.5 dB
Output Clipping Level3.0 dBV, 1 kHz at 1% THD, typical
Maximum SPL142.0 dB SPL 1 kHz at 1% THD, typical
Dynamic Range117.5 dB typical
Microphone Current Draw120 to 240 µA, typical
Bias Voltage Recommended Operating Voltage5 VDC
HousingMolded ABS
PolarityLEMO, NC, MDOTPositive pressure at diaphragm leads to negative voltage with respect to ground
MTQG, XLR connectorPositive pressure at diaphragm leads to positive voltage with respect to ground
Cable Diameter1.6 mm
Cable LengthMTQG, LEMO, MDOT66 in. (1.67 m)
NC, XLR connector96 in. (2.43 m)
Microphone Length13.5 mm
Microphone Diameter5.6 mm
Net Weight with CableBoom arm, with cable12.0 g (0.42 oz.)
Headset frame6.0 g (0.21 oz.)
Available ModelsTH53B/O-LEMOTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with LEMO Connector, Black
TH53B/O-MDOTTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Black
TH53B/O-MTQGTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MTQG Connector, Black
TH53B/O-NCTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with bare wire terminal, Black
TH53C/O-LEMOTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with LEMO Connector, Cocoa
TH53C/O-MDOTTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Cocoa
TH53C/O-MTQGTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MTQG Connector, Cocoa
TH53T/O-LEMOTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with LEMO Connector, Tan
TH53T/O-MDOTTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Tan
TH53T/O-MTQGTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MTQG Connector, Tan
TH53T/O-NCTwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with bare wire terminal, Tan
