Description
The TwinPlex™ TH53 offers the natural sound of the TwinPlex element combined with the ease of an ultra-light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, swit... Read MoreRetail Price: $724.00 Our Price: $579.00
Free Shipping (Continental US)
Suggested Accessories
Description

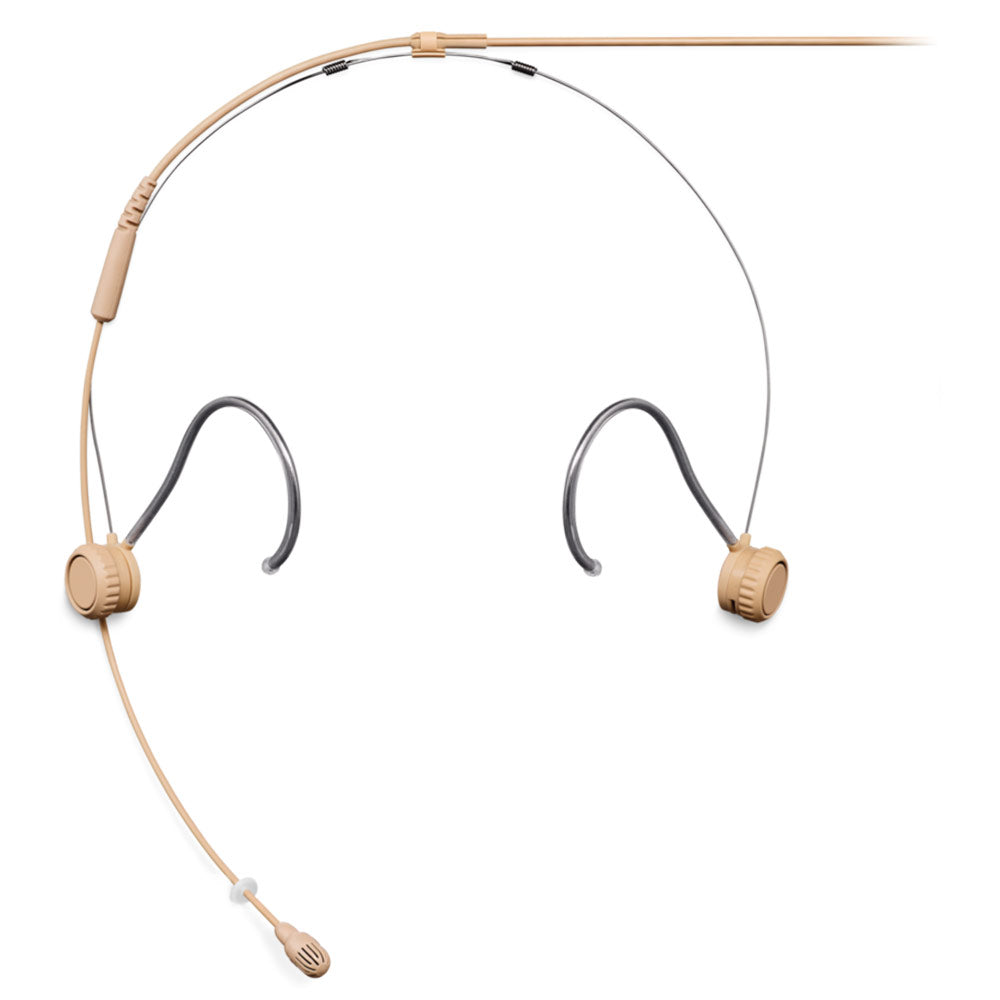

The TwinPlex™ TH53 offers the natural sound of the TwinPlex element combined with the ease of an ultra-light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, switchable sides and a durable 1.6 mm cable with redundant ground round out this professional headset that overachieves in reliability, audio quality, and comfort.
Features:
In dialogue or monologue. Song or speech. A single word can affect the whole story. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.
No more "sweat-outs." The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your headset rises to the challenge, night after night.
The TwinPlex™ TH53 offers the natural sound quality of the new TwinPlex element combined with the ease of a light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, switchable sides and a durable 1.6 mm cable with redundant ground round out this professional headset that outperforms the competition in reliability, audio quality, and comfort.
More +
Product Specs
Microphone Capsule | Dual-Diaphragm, Prepolarized Condenser | |
Polar Pattern | Omnidirectional | |
Frequency Response | 20 Hz to 20 kHz | |
Sensitivity | -45.0 dBV (5.62 mV) | |
Self-Noise, A-Weighted, Equivalent Acoustical | 24.5 dB SPL-A | |
Signal-To-Noise Ratio | 69.5 dB | |
Output Clipping Level | 3.0 dBV, 1 kHz at 1% THD, typical | |
Maximum SPL | 142.0 dB SPL 1 kHz at 1% THD, typical | |
Dynamic Range | 117.5 dB typical | |
Microphone Current Draw | 120 to 240 µA, typical | |
Bias Voltage Recommended Operating Voltage | 5 VDC | |
Housing | Molded ABS | |
Polarity | LEMO, NC, MDOT | Positive pressure at diaphragm leads to negative voltage with respect to ground |
MTQG, XLR connector | Positive pressure at diaphragm leads to positive voltage with respect to ground | |
Cable Diameter | 1.6 mm | |
Cable Length | MTQG, LEMO, MDOT | 66 in. (1.67 m) |
NC, XLR connector | 96 in. (2.43 m) | |
Microphone Length | 13.5 mm | |
Microphone Diameter | 5.6 mm | |
Net Weight with Cable | Boom arm, with cable | 12.0 g (0.42 oz.) |
Headset frame | 6.0 g (0.21 oz.) | |
Available Models | TH53B/O-LEMO | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with LEMO Connector, Black |
TH53B/O-MDOT | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Black | |
TH53B/O-MTQG | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MTQG Connector, Black | |
TH53B/O-NC | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with bare wire terminal, Black | |
TH53C/O-LEMO | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with LEMO Connector, Cocoa | |
TH53C/O-MDOT | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Cocoa | |
TH53C/O-MTQG | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MTQG Connector, Cocoa | |
TH53T/O-LEMO | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with LEMO Connector, Tan | |
TH53T/O-MDOT | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Tan | |
TH53T/O-MTQG | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with MTQG Connector, Tan | |
TH53T/O-NC | TwinPlex™ Subminiature Omnidirectional Headset Microphone Low Sensitivity, 1.6 mm Cable with bare wire terminal, Tan |
