Description

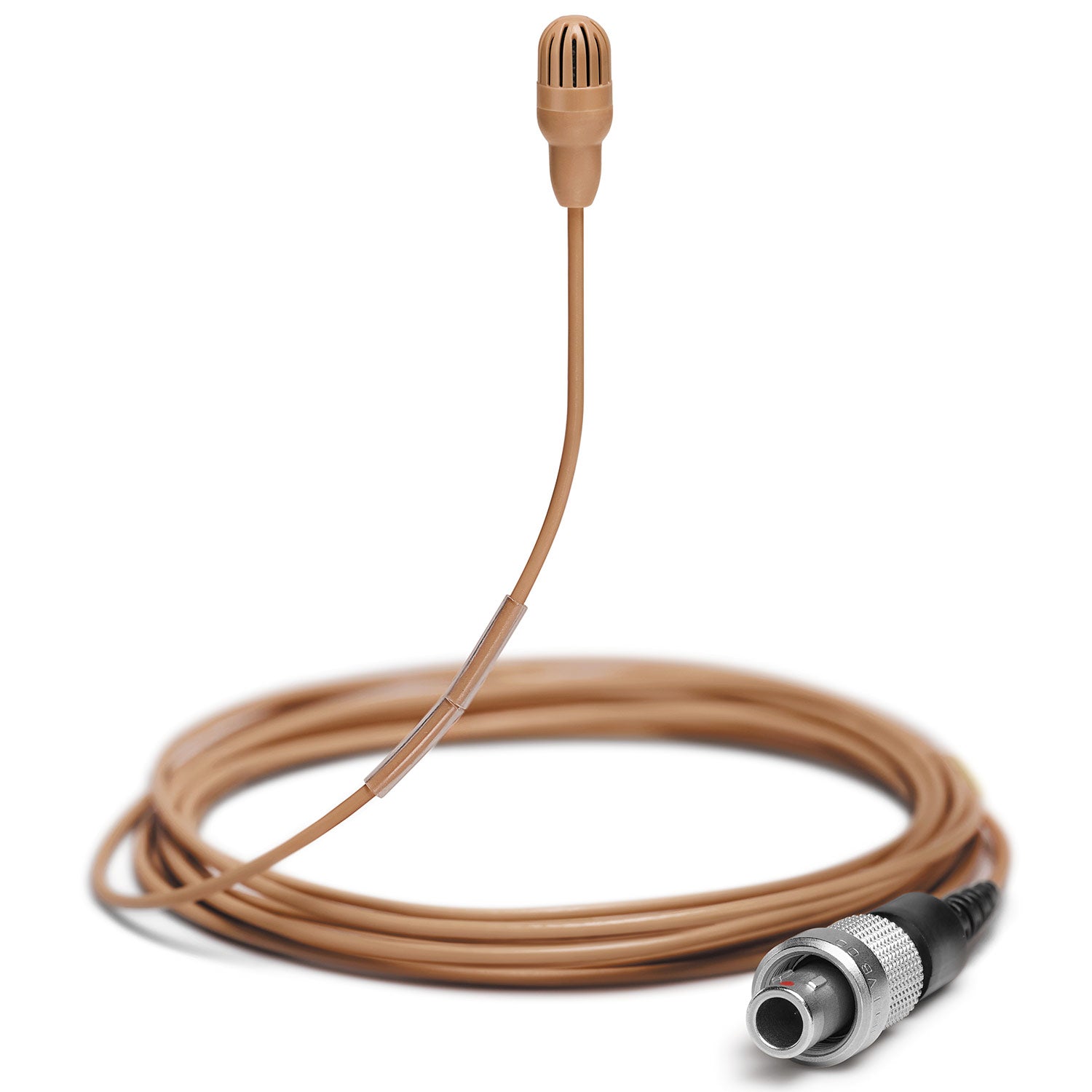

TwinPlex™ TL45 subminiature lavalier microphone features an expressively natural sound signature, easy-to-conceal 1.1 mm cable, and is available in multiple colors witha LEMO connector.Expressively natural sound, low sensitivity, high max SPL, and interchangeable sweat- resistant frequency caps a... Read MoreRetail Price: $499.00 Our Price: $399.00
Free Shipping (Continental US)
Suggested Accessories
Description
TwinPlex™ TL45 subminiature lavalier microphone features an expressively natural sound signature, easy-to-conceal 1.1 mm cable, and is available in multiple colors witha LEMO connector.
Expressively natural sound, low sensitivity, high max SPL, and interchangeable sweat- resistant frequency caps all make the TwinPlex™ TL45 the perfect companion for professional theater applications. The thin 1.1 mm diameter paintable cable is terminated with a professional LEMO connector and is easily concealed in a costume or wig
Features:
In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual- diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.
No more "sweat-outs." The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night. The ultra-thin 1.1 mm diameter paintable cable of the TwinPlex™ TL45 is terminated with a professional LEMO connector and is easily concealed in a costume or wig. Low sensitivity, high max SPL, and interchangeable sweat-resistant frequency caps all make the TL45 the perfect companion for professional theater applications.
TwinPlex TL45 Features and Benefits. The TL45 is ideal for use in theater settings.
More +
Product Specs
Microphone Capsule | Dual-Diaphragm, Prepolarized Condenser | |
Polar Pattern | Omnidirectional | |
Frequency Response | 20 Hz to 20 kHz | |
Sensitivity at 1 kHz | -45.0 dBV (5.62 mV) | |
Self-Noise, A-Weighted, Equivalent Acoustical | 24.5 dB SPL-A | |
Signal-To-Noise Ratio | 69.5 dB | |
Output Clipping Level | 3.0 dBV, 1 kHz at 1% THD, typical | |
Maximum SPL | 142.0 dB SPL 1 kHz at 1% THD, typical | |
Dynamic Range | 117.5 dB typical | |
Microphone Current Draw | 120 to 240 µA, typical | |
Bias Voltage Recommended Operating Voltage | 5 VDC | |
Housing | Molded ABS | |
Polarity | Positive pressure at diaphragm leads to negative voltage with respect to ground | |
Cable Diameter | 1.1 mm | |
Cable Length | 66 in. (1.67 m) | |
Microphone Length | 13.5 mm | |
Microphone Diameter | 5.6 mm | |
Net Weight with Cable | 12.0 g (0.42 oz.) | |
Available Models | TL45B/O-LEMO | TwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.1 mm Cable with LEMO Connector, Black |
TL45C/O-LEMO | TwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.1 mm Cable with LEMO Connector, Cocoa | |
TL45T/O-LEMO | TwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.1 mm Cable with LEMO Connector, Tan | |
TL45W/O-LEMO | TwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.1 mm Cable with LEMO Connector, White |
