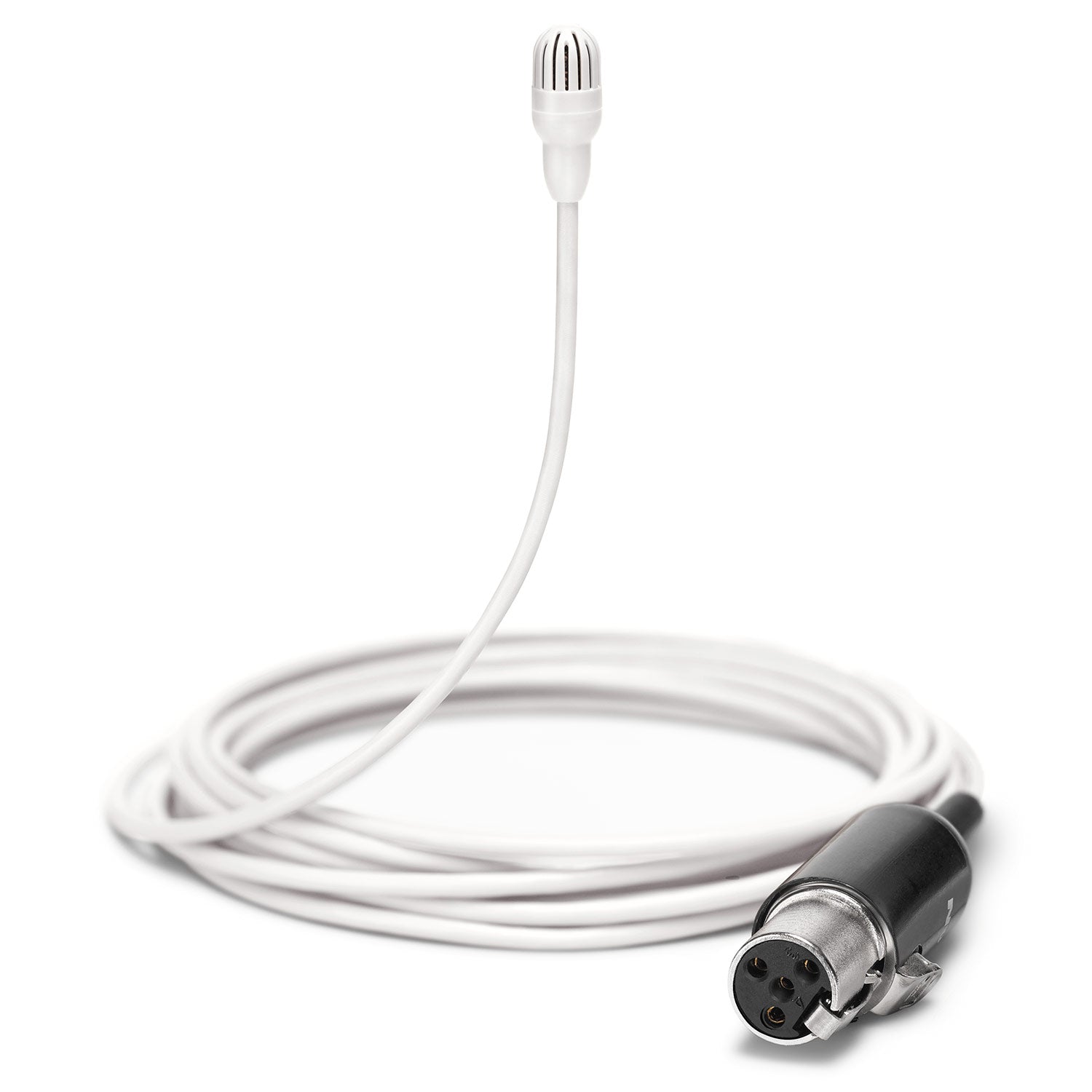

Shure TwinPlex TL46W/O-MTQG Subminiature Lavalier Microphone (Hi Sens, MTQG, White)


  • Dale #:

    SHUR-TL46WOMTQG
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

TwinPlex™ TL46 subminiature microphone features an expressively natural sound combined with high sensitivity for increased output, a durable1.6 mm cable, and is available in multiple color and connector options.TwinPlex™ TL46 offers unmatched signal-to-noise, superior natural sound quality, and a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

TwinPlex™ TL46 subminiature microphone features an expressively natural sound combined with high sensitivity for increased output, a durable1.6 mm cable, and is available in multiple color and connector options.

TwinPlex™ TL46 offers unmatched signal-to-noise, superior natural sound quality, and a high sensitivity output. Perfect for dialogue and medium SPL applications, the TL46 also features an ultra-durable 1.6 mm paintable cable, interchangeable moisture-resistant frequency caps with both LEMO and TA4F (TQG) connector options. It's the premium choice when the message needs to rise above the noise.

Features:

  • The TL46 is ideal for a variety of theater, film, broadcast, and live TV applications when additional output (8-10dB) is required
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Interchangeable sweat- and moisture-resistant frequency caps prevent sweat- outs due to an invisible syperhydrophobic nanoscopic coating
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Natural
  • Sensitivity: High (8-10db increased output)
  • Colors: White, Tan, Cocoa, Black
  • Connectors: LEMO, MTQG/TA4F
  • Accessories: Available separately

In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more "sweat-outs." The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.
The TL46 offers unmatched signal-to-noise, superior natural sound quality, and a high sensitivity output. Perfect for dialogue and medium SPL applications, the TL46 also features an ultra-durable 1.6 mm paintable cable, interchangeable moisture-resistant frequency caps with both LEMO and TA4F (TQG) connector options. It's the premium choice when the message needs to rise above the noise.

More +

Product Specs

Microphone CapsuleDual-Diaphragm, Prepolarized Condenser
Polar PatternOmnidirectional
Frequency Response20 Hz to 20 kHz
Sensitivity-37.0 dBV(14.1 mV) at 1 kHz
Self-Noise, A-Weighted, Equivalent Acoustical24 dB SPL-A
Signal-To-Noise Ratio70 dB
Output Clipping Level3.0 dBV, 1 kHz at 1% THD, typical
Maximum SPL134.0 dB SPL 1 kHz at 1% THD, typical
Dynamic Range110 dB typical
Microphone Current Draw120 to 240 µA, typical
Bias Voltage Recommended Operating Voltage5 VDC
HousingMolded ABS
PolarityLEMOPositive pressure at diaphragm leads to negative voltage with respect to ground
MTQGPositive pressure at diaphragm leads to positive voltage with respect to ground
Cable Diameter1.6 mm
Cable Length66 in. (1.67 m)
Microphone Length13.5 mm
Microphone Diameter5.6 mm
Net Weight with Cable12.0 g (0.42 oz.)
Available ModelsTL46B/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with LEMO Connector, Black
TL46B/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with MTQG Connector, Black
TL46C/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with LEMO Connector, Cocoa
TL46C/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with MTQG Connector, Cocoa
TL46T/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with LEMO Connector, Tan
TL46T/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with MTQG Connector, Tan
TL46W/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with LEMO Connector, White
TL46W/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, High Sensitivity, 1.6 mm Cable with MTQG Connector, White
