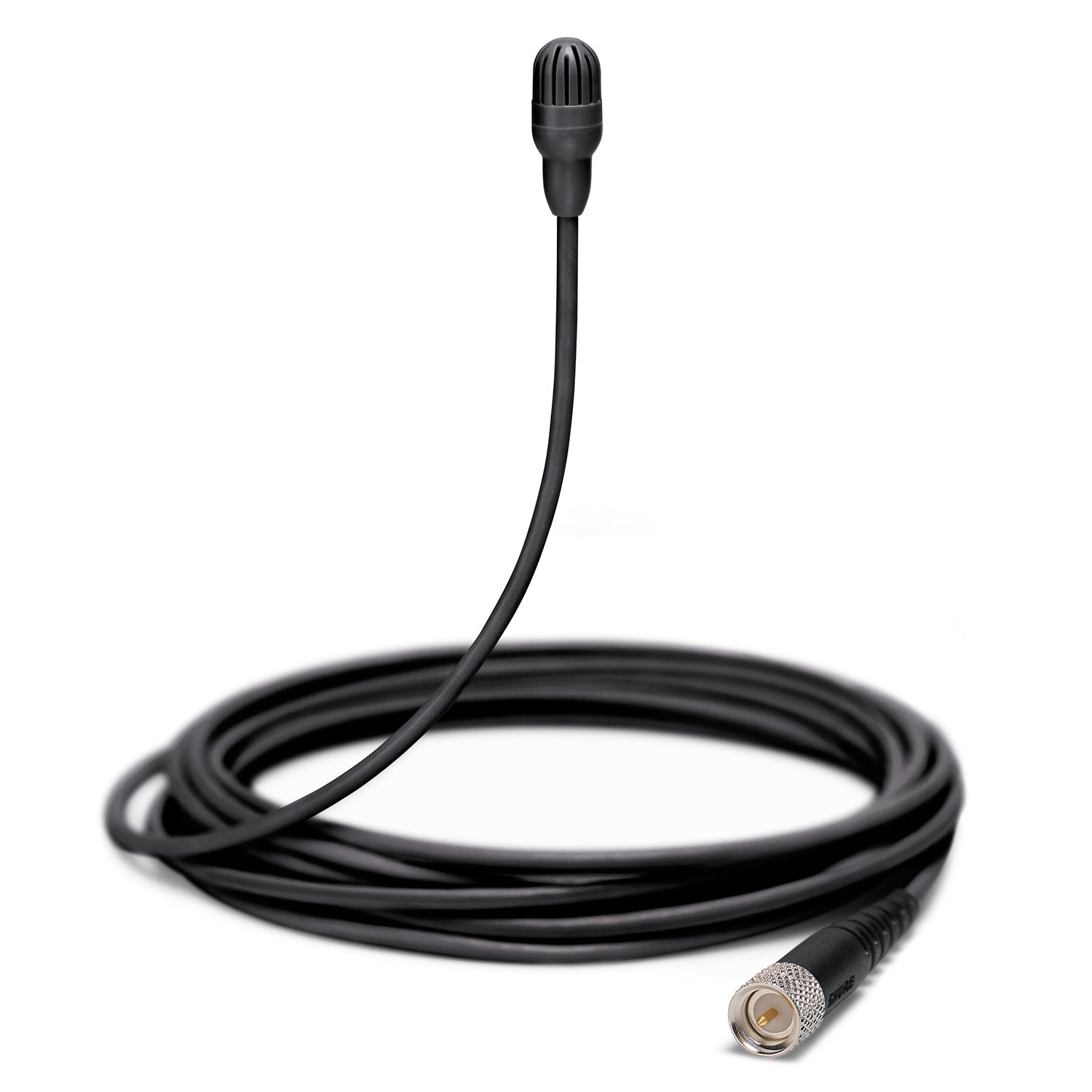

Shure TwinPlex TL47B/O-MDot-A Subminiature Lavalier Microphone (Low Sens, MDot, Black)

  • Dale #:

    SHUR-TL47BOMDOTA
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

TwinPlex™ TL47 subminiature lavalier microphone features an expressively natural sound signature with a durable and paintable 1.6 mm cable. Available in multiple color and connector options.The expressively natural sounding TwinPlex™ TL47 is available with connector options for most bodypack tran... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

TwinPlex™ TL47 subminiature lavalier microphone features an expressively natural sound signature with a durable and paintable 1.6 mm cable. Available in multiple color and connector options.

The expressively natural sounding TwinPlex™ TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it's the go-to line for flexibility.

Features:

  • With a variety of colors and connectors, the TL47 is ideal for nearly any application
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual- diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Interchangeable sweat and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic nanoscopic coating
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Natural
  • Sensitivity: Low
  • Colors: White, Tan, Cocoa, Black
  • Connectors: LEMO, MTQG/TA4F, MicroDot, XLR/Preamp, NC (bare wire)

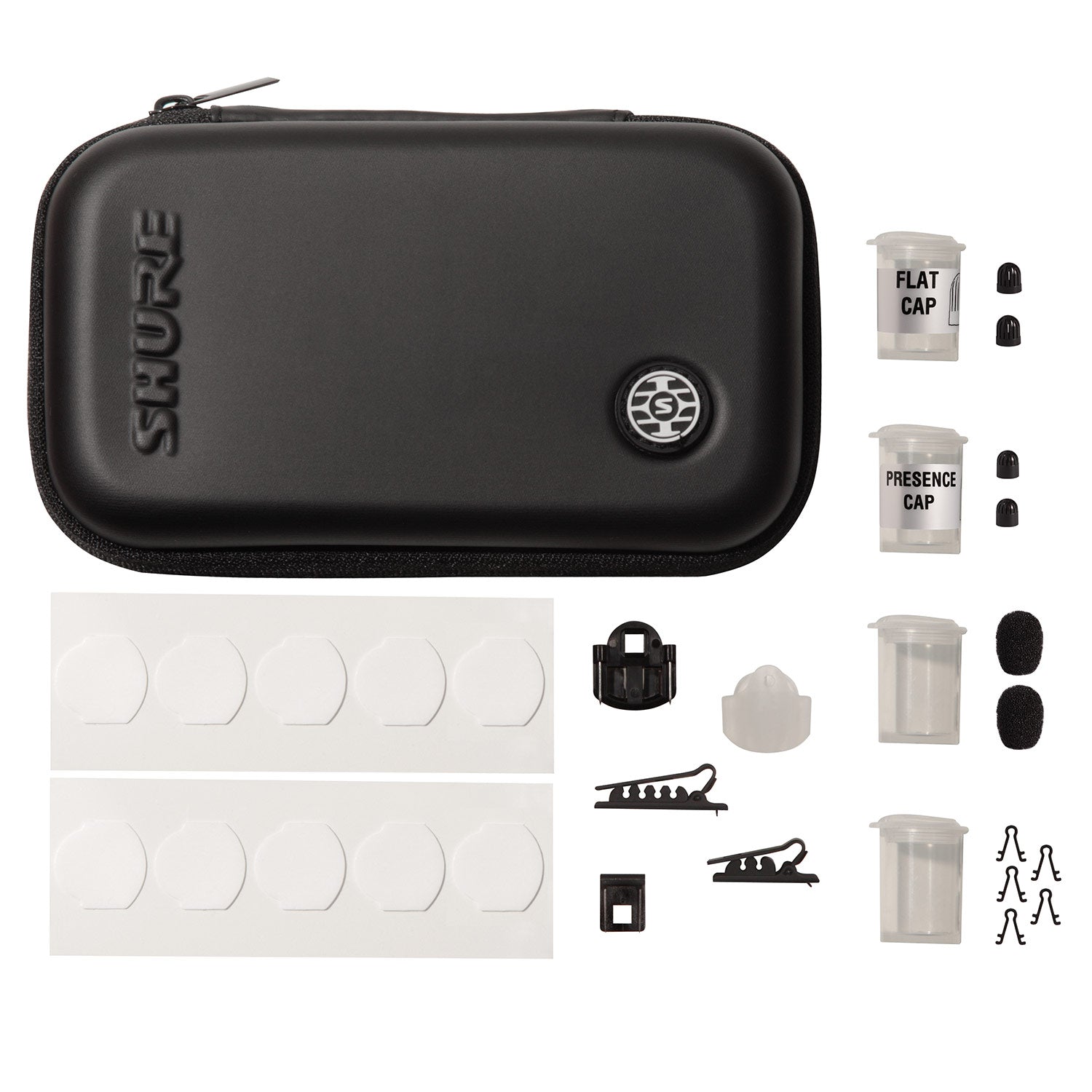

  • Accessories: Available with or without accessories

In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual- diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more "sweat-outs." The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.

The TwinPlex™ TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it's the go-to line for flexibility.

More +

Product Specs

Microphone CapsuleDual-Diaphragm, Prepolarized Condenser
Polar PatternOmnidirectional
Frequency Response20 Hz to 20 kHz
Sensitivity-45.0 dBV (5.62 mV)
Self-Noise, A-Weighted, Equivalent Acoustical24.5 dB SPL-A
Signal-To-Noise Ratio69.5 dB
Output Clipping Level3.0 dBV, 1 kHz at 1% THD, typical
Maximum SPL142.0 dB SPL 1 kHz at 1% THD, typical
Dynamic Range117.5 dB typical
Microphone Current Draw120 to 240 µA, typical
Bias Voltage Recommended Operating Voltage5 VDC
HousingMolded ABS
PolarityLEMO, NC, MDOTPositive pressure at diaphragm leads to negative voltage with respect to ground
MTQG, XLR connectorPositive pressure at diaphragm leads to positive voltage with respect to ground
Cable Diameter1.6 mm
Cable Length66 in. (1.67 m)
Microphone Length13.5 mm
Microphone Diameter5.6 mm
Net Weight with Cable12.0 g (0.42 oz.)
Available ModelsTL47B/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, Black
TL47B/O-LEMO-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, Black with Accessories
TL47B/O-MDOT-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Black with Accessories
TL47B/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, Black
TL47B/O-MTQG-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, Black with Accessories
TL47B/0-NC-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with bare wire terminal, Black
TL47B/O-XLR-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with XLR Connector, Black with Accessories
TL47C/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, Cocoa
TL47C/O-LEMO-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, Cocoa with Accessories
TL47C/O-MDOT-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Cocoa with Accessories
TL47C/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, Cocoa
TL47C/O-MTQG-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, Cocoa with Accessories
TL47C/O-NC-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with bare wire terminal, Cocoa with Accessories
TL47T/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, Tan
TL47T/O-LEMO-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, Tan with Accessories
TL47T/O-MDOT-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MicroDot Connector, Tan with Accessories
TL47T/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, Tan
TL47T/O-MTQG-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, Tan with Accessories
TL47T/O-NC-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with bare wire terminal, Tan with Accessories
TL47W/O-LEMOTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, White
TL47W/O-LEMO-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with LEMO Connector, White with Accessories
TL47W/O-MDOT-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MicroDot Connector, White with Accessories
TL47W/O-MTQGTwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, White
TL47W/O-MTQG-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with MTQG Connector, White with Accessories
TL47W/O-NC-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, 1.6 mm Cable with bare wire terminal, White with Accessories
