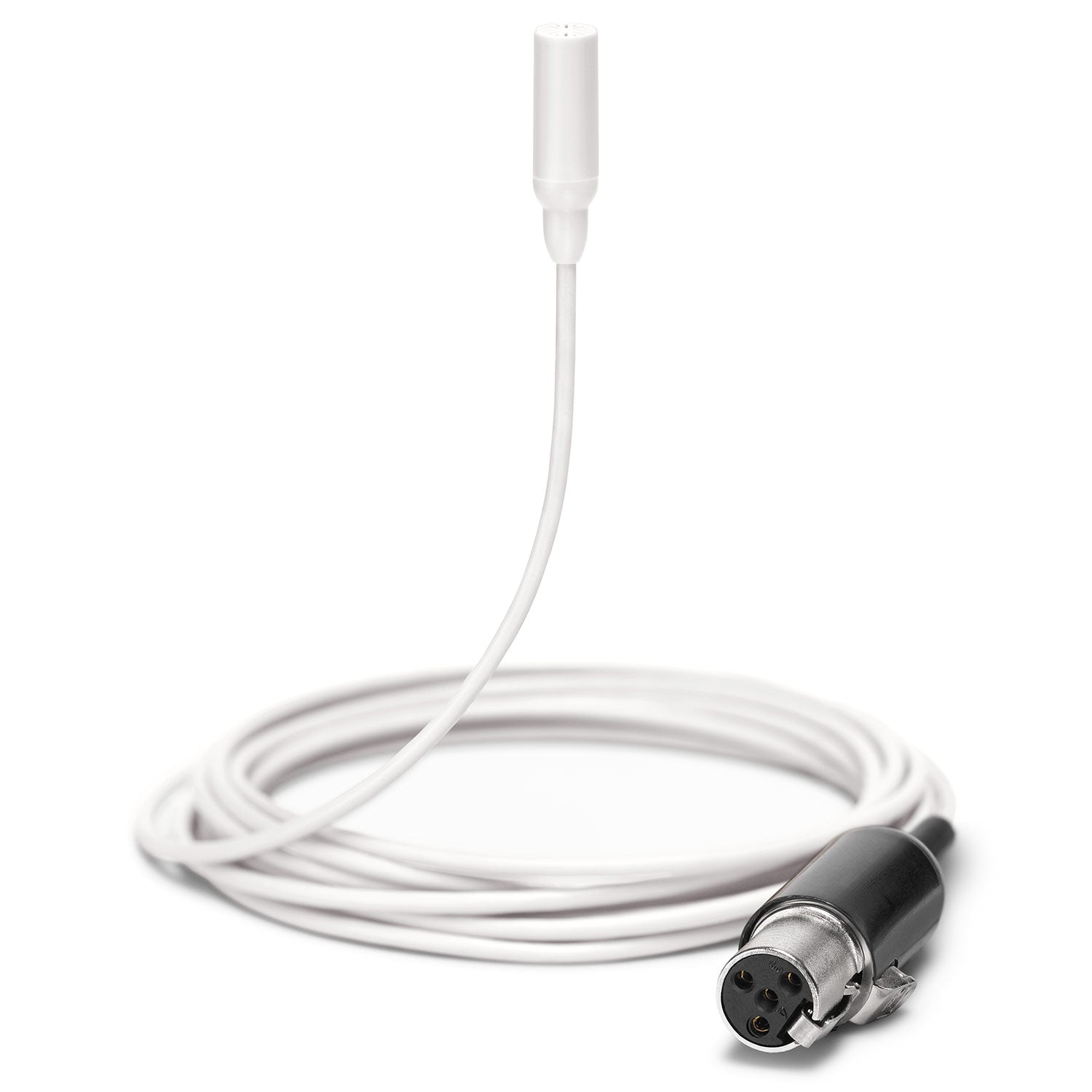

Shure TwinPlex TL48W/O-MTQG-A Subminiature Lavalier Microphone (Tailored, MTQG, White)

  • Dale #:

    SHUR-TL48WOMTQGA
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

TwinPlex™ TL48 subminiature lavalier microphone features a tailored sound signature optimized for dialogue with a durable 1.6 mm cable. Available in multiple color and connector options.The TwinPlex™ TL48 offers a tailored response with a mid-range rise that's ideal for speech and dialogue applic... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

TwinPlex™ TL48 subminiature lavalier microphone features a tailored sound signature optimized for dialogue with a durable 1.6 mm cable. Available in multiple color and connector options.

The TwinPlex™ TL48 offers a tailored response with a mid-range rise that's ideal for speech and dialogue applications, such as film and TV. Designed with leading audio professionals' input, the TL48 is easily concealed in a costume or directly against the skin under wardrobe, and offers extensive accessories to ensure quick, easy, and secure mounting-all with no impact on sound quality.

Features:

  • With a paintable, fixed frequency cap and mid-band boost that accentuates dialogue, the TL48 is ideal for film and TV applications
  • Improved off-axis consistency, due to the patent pending dual-diaphragm design, yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Tailored for dialogue (6dB mid-band boost at about 7kHz)
  • Sensitivity: Low
  • Colors: White, Tan, Black
  • Connectors: LEMO, MTQG/TA4F, MicroDot, XLR/Preamp, NC (bare wire)

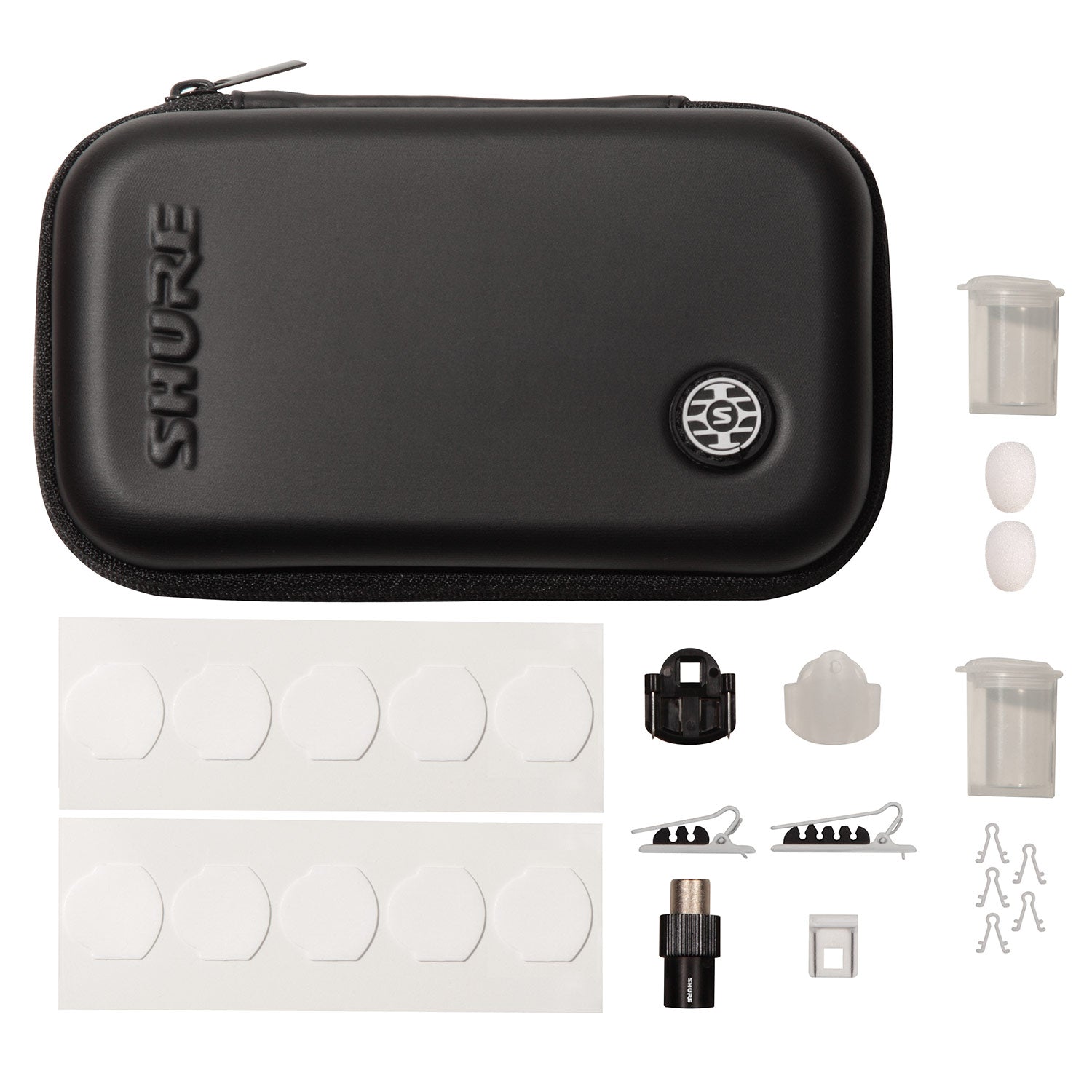

  • Accessories: Available with accessories

In dialogue or monologue. Song or speech. A single word can affect the whole story. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual- diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more "sweat-outs." The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your headset rises to the challenge, night after night.

The TwinPlex™ TL48 offers a tailored response with a mid-range rise that's ideal for speech and dialogue applications, such as film and TV. Designed with leading audio professionals' input, the TL48 is easily concealed in a costume or directly against the skin under wardrobe, and offers extensive accessories to ensure quick, easy, and secure mounting-all with no impact on sound quality.

More +

Product Specs

Microphone CapsuleDual-Diaphragm, Prepolarized Condenser
Polar PatternOmnidirectional
Frequency Response20 Hz to 20 kHz
Sensitivity-45.0 dBV (5.62 mV)
Self-Noise, A-Weighted, Equivalent Acoustical24.5 dB SPL-A
Signal-To-Noise Ratio69.5 dB
Output Clipping Level3.0 dBV, 1 kHz at 1% THD, typical
Maximum SPL142.0 dB SPL 1 kHz at 1% THD, typical
Dynamic Range117.5 dB typical
Microphone Current Draw120 to 240 µA, typical
Bias Voltage Recommended Operating Voltage5 VDC
HousingMolded ABS
PolarityLEMO, NC, MDOTPositive pressure at diaphragm leads to negative voltage with respect to ground
MTQG, XLR connectorPositive pressure at diaphragm leads to positive voltage with respect to ground
Cable Diameter1.6 mm
Cable LengthMTQG, LEMO, MDOT66 in. (1.67 m)
NC, XLR connector96 in. (2.43 m)
Microphone Length19 mm
Microphone Diameter5.3 mm
Net Weight with Cable12.0 g (0.42 oz.)
Available ModelsTL48B/O-LEMO-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with LEMO Connector, Black with Accessories
TL48B/O-MDOT-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with MicroDot Connector, Black with Accessories
TL48B/O-MTQG-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with MTQG Connector, Black with Accessories
TL48B/O-NC-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with bare wire terminal, Black with Accessories
TL48B/O-XLR-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with XLR Preamp, Black with Accessories
TL48T/O-LEMO-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with LEMO Connector, Tan with Accessories
TL48T/O-MDOT-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with MicroDot Connector, Tan with Accessories
TL48T/O-MTQG-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with LEMO Connector, Tan with Accessories
TL48T/O-NC-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with bare wire terminal, Tan with Accessories
TL48W/O-LEMO-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with LEMO Connector, White with Accessories
TL48W/O-MDOT-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with MicroDot Connector, White with Accessories
TL48W/O-MTQG-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with MTQG Connector, White with Accessories
TL48W/O-NC-ATwinPlex™ Subminiature Omnidirectional Lavalier, Low Sensitivity, Tailored Response, 1.6 mm Cable with bare wire terminal, White with Accessories
