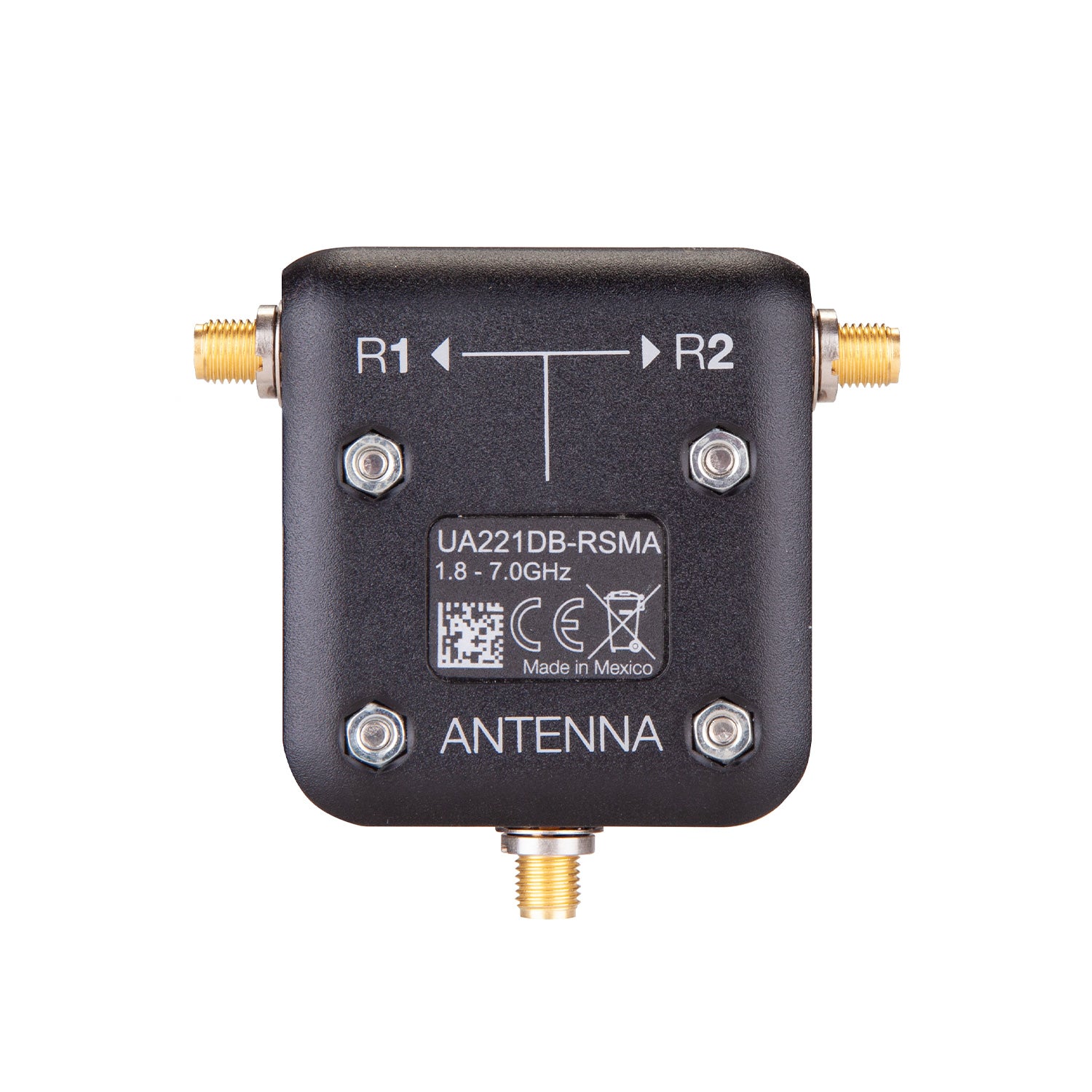

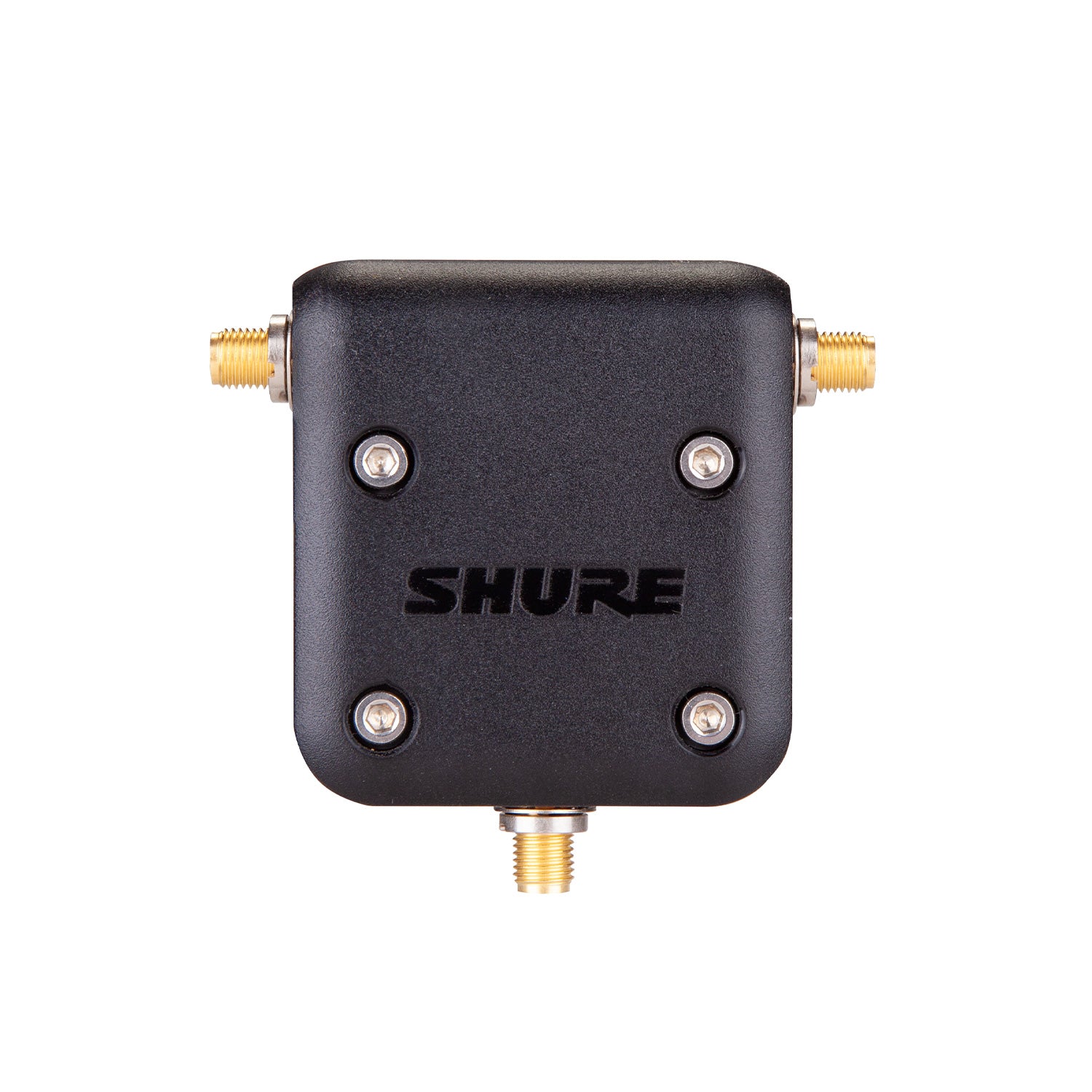

Shure UA221DB-RSMA - RSMA Dual Band Passive Antenna Splitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The UA221DB-RSMA splits an incoming signal into two outgoing signals, allowing two GLXD4R+ receivers to share a single pair of antennas. Designed for use with UA8-2.4-5.8 omnidirectional antennas and PA805-RSMA directional antennas. Each kit includes two UA221DB-RSMA Splitters, four coaxial cables, and attaching hardware.
| Frequency Range | 1.8 GHz to 7.0 GHz (Wi-Fi Band) |
| Isolation | Over 20 dB (24 dB, typical) |
| Insertion Loss | 2.45 MHz: over 0.9 dB (0.5 dB, typical) 5.8 GHz: over 1.8 dB (1.4 dB, typical) |
| Voltage Standing Wave Ratio (VSWR) | 1.8 GHzÐ7 GHz less than 2 (less than 1.4, typical) |
| Dimensions | 2.5 x 2.7 x 0.6 in. (64.2 x 67.7 x 16 mm), (H x W x D) |
| Weight | 1.5 oz. (42.5 g) |
The UA221DB-RSMA splits an incoming signal into two outgoing signals, allowing two GLXD4R+ receivers to share a single pair of antennas. Designed for use with UA8-2.4-5.8 omnidirectional antennas and PA805-RSMA directional antennas. Each kit includes two UA221DB-RSMA Splitters, four coaxial cables, and attaching hardware.
| Frequency Range | 1.8 GHz to 7.0 GHz (Wi-Fi Band) |
| Isolation | Over 20 dB (24 dB, typical) |
| Insertion Loss | 2.45 MHz: over 0.9 dB (0.5 dB, typical) 5.8 GHz: over 1.8 dB (1.4 dB, typical) |
| Voltage Standing Wave Ratio (VSWR) | 1.8 GHzÐ7 GHz less than 2 (less than 1.4, typical) |
| Dimensions | 2.5 x 2.7 x 0.6 in. (64.2 x 67.7 x 16 mm), (H x W x D) |
| Weight | 1.5 oz. (42.5 g) |
