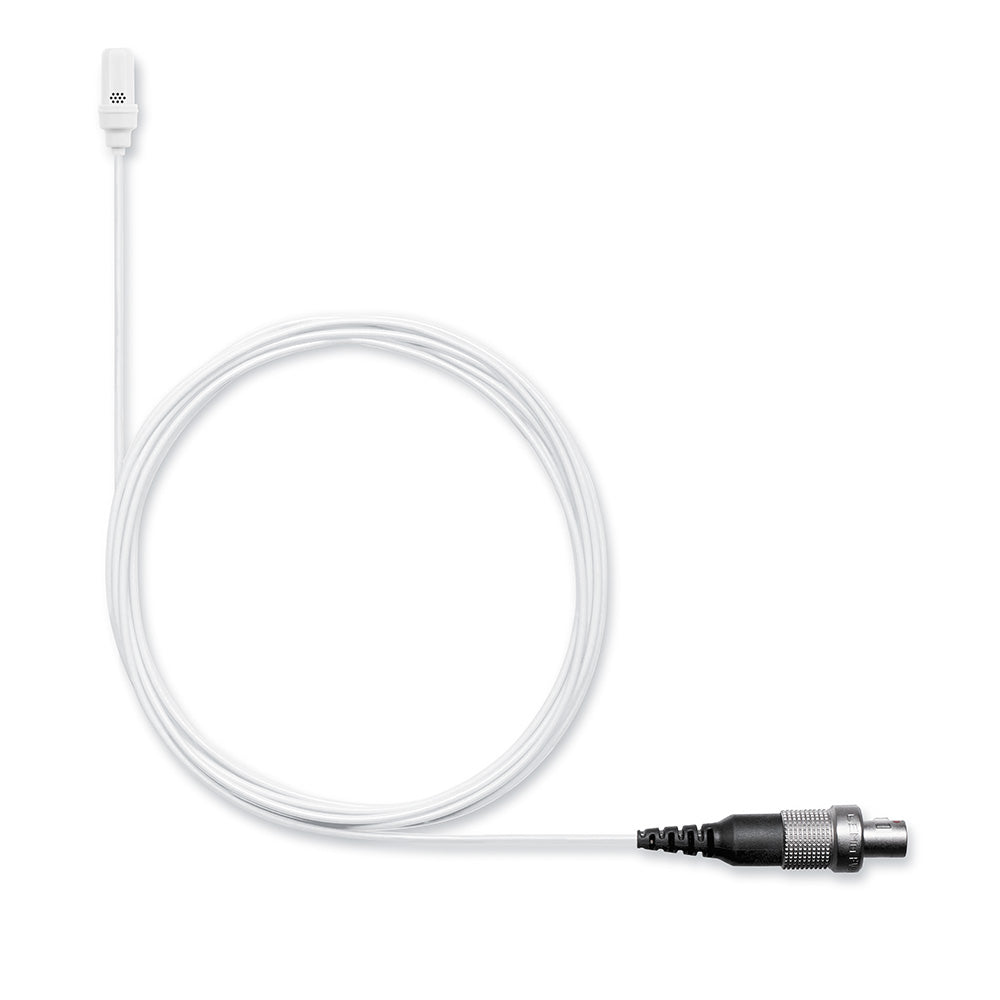

Shure UL4W/C-LM3-A - UniPlex Lavalier Microphone (White / 3-Pin Lemo)

  • Dale #:

    SHUR-UL4WCLM3A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Shure UniPlex UL4 is a professional MEMS lavalier microphone that is ideal for speech and performance applications in broadcast, corporate, and conference environments. The subminiature design and custom cardioid element provide robust audio performance. Each microphone is supplied with a sto... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

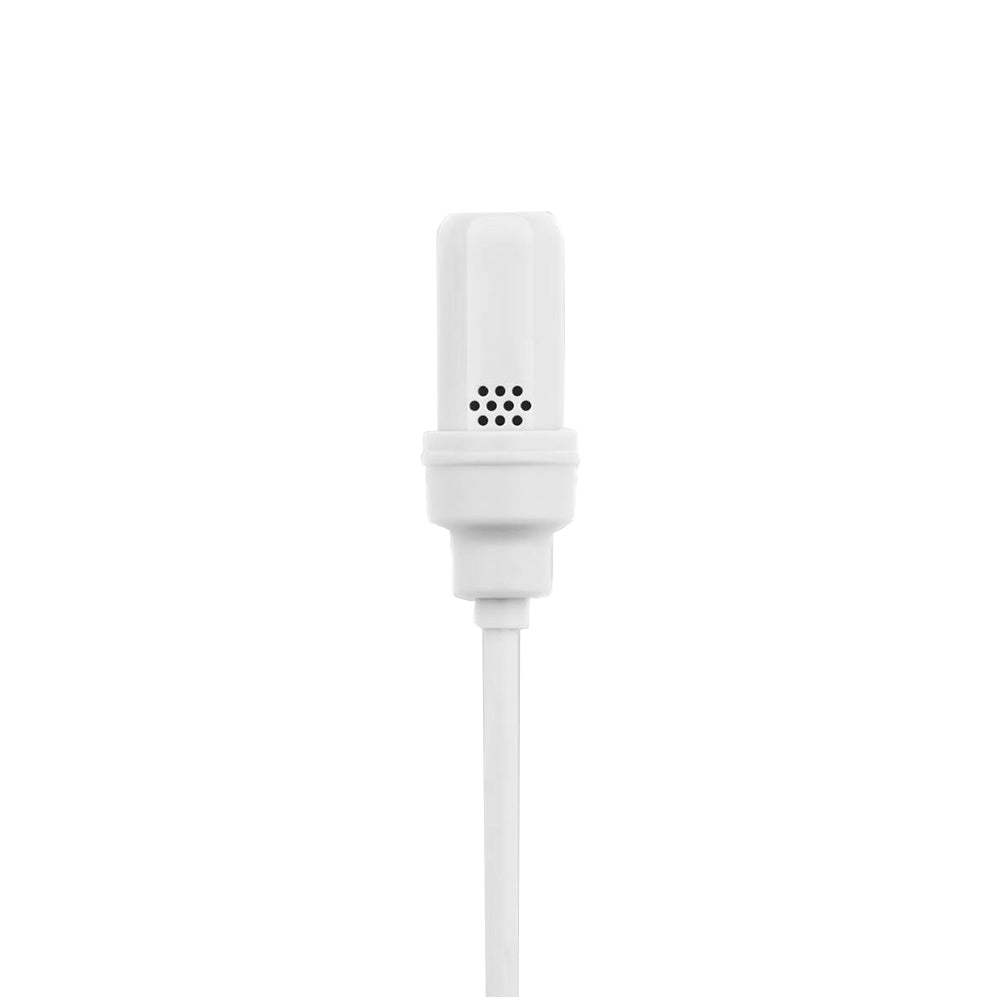

The Shure UniPlex UL4 is a professional MEMS lavalier microphone that is ideal for speech and performance applications in broadcast, corporate, and conference environments. The subminiature design and custom cardioid element provide robust audio performance. Each microphone is supplied with a storage pouch, single tie clip, and snap fit windscreen.

The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero "memory effect," won't kink, and is fully paintable.

Features:

  • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
  • IP57 dust-resistant, waterproof rated
  • Professional sound quality for speech and presentation applications
  • Advanced 1.6 mm Shure Plex cable:
    • Dual redundant ground in cable serves as secondary shield for unprecedented longevity
    • Immune to memory effect and kinks
    • Fully paintable with typical theater paints, pens, and polishes
  • Available in four colors: Black, Cocoa, Tan, White
  • Available in three connector types: TA4F (mTQG), LEMO*, and XLR

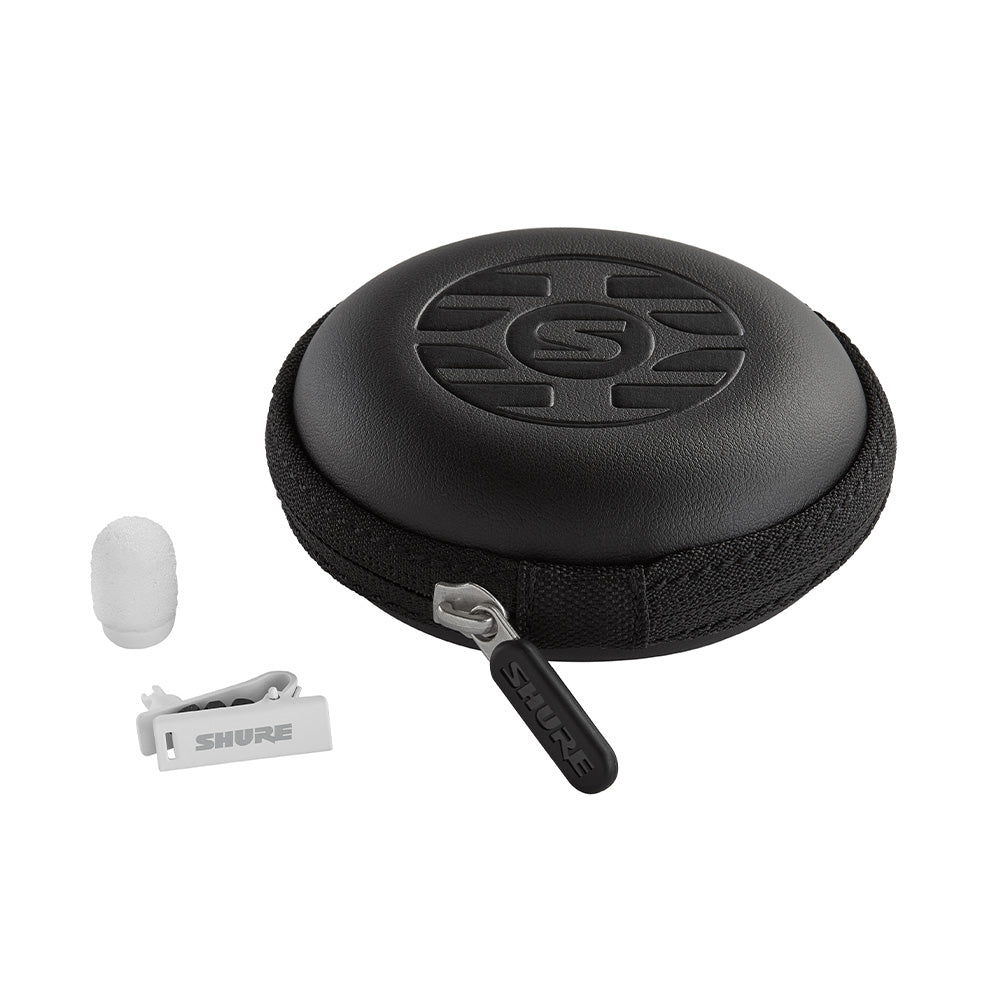

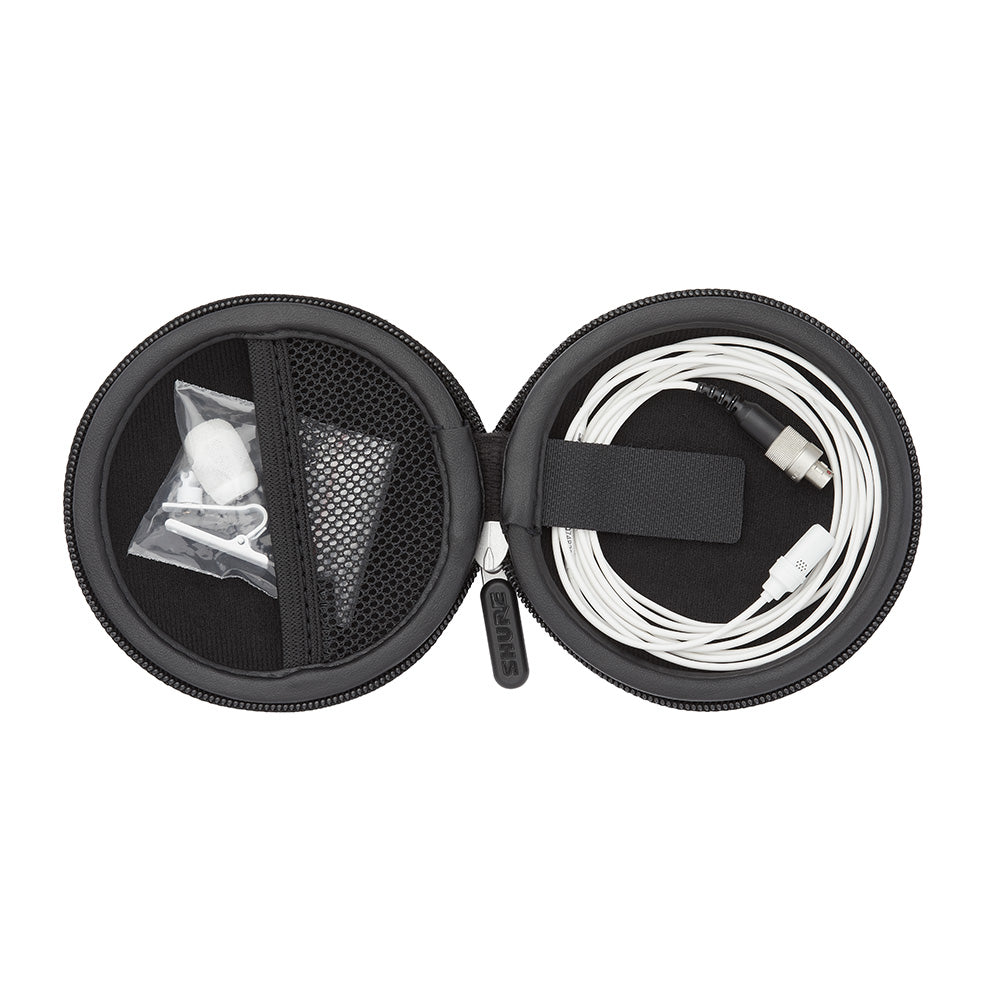

  • Kit includes the following accessories: Case, Snap-fit Windscreen, Single Tie Clip

More +

Product Specs

Microphone Capsule MEMS
Polar Pattern Cardioid
Frequency Response 40 Hz to 20 kHz
Sensitivity –42.5 dBV/Pa (Pa=94 dB SPL)
Self-Noise 32 dB SPL-A
A-weighted, Equivalent Acoustical
Signal-to-Noise Ratio 62 dB-A
Maximum SPL 130.0 dB SPL
1 kHz @ 1% THD, typical
Dynamic Range 98 dB Typical
Microphone Current Draw 530 μA, maximum
Bias Voltage
Recommended Operating Voltage
3.5-5 VDC (5.5VDC MAX)
Housing Molded ABS
Polarity MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
Cable Diameter 1.6 mm
Cable Length 66.0 in (1.67 m)
Net Weight 12.5 g (0.44 oz)
Capsule Dimensions (L × D) 17 mm × 5 mm
