Shure ULXD2/B58 Wireless Handheld Transmitter (G50 Band - 470-534 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Shure ULXD2/B58 Wireless Handheld Transmitter (G50 Band - 470-534 MHz)
Sale price$750.00
Regular price$1,050.00
Description

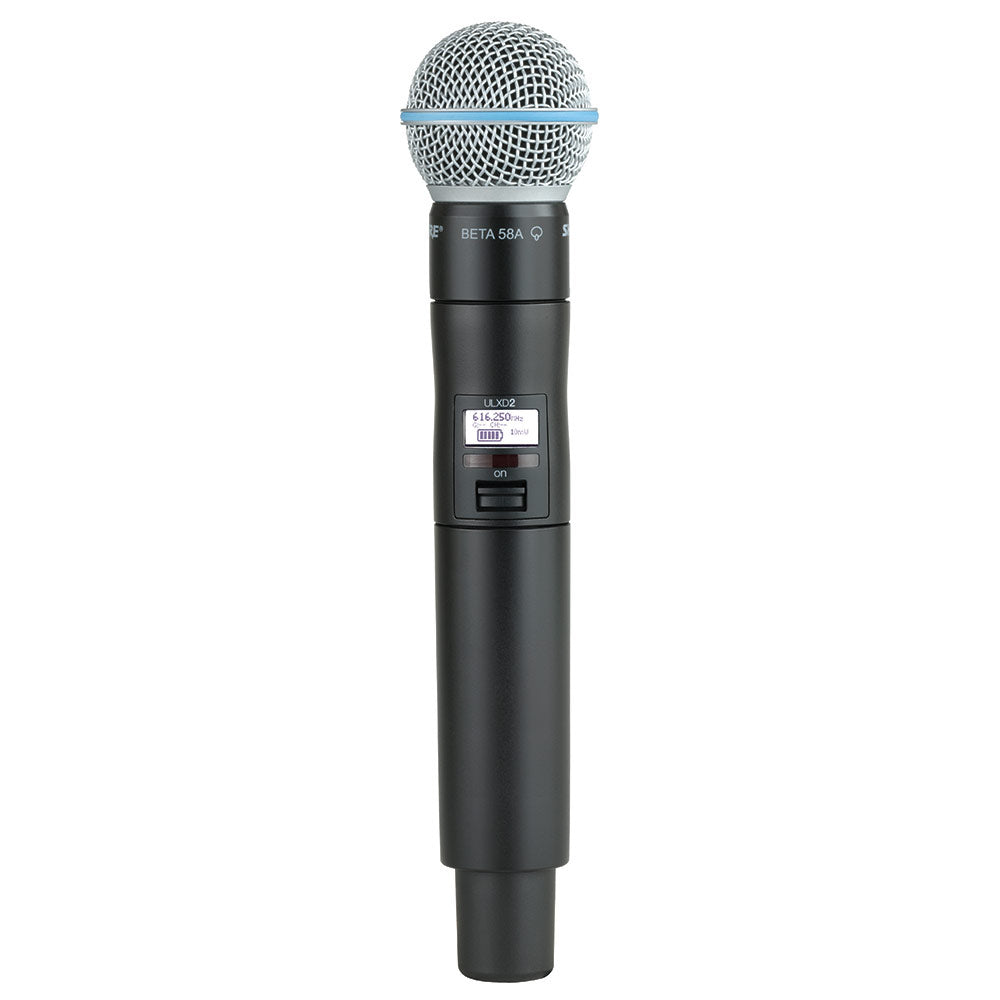

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.
Features
- 30 Hz-20 kHz range with flat frequency response (actual response is microphone dependent)
- Interchangeable Shure microphone cartridges, including the legendary SM58
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect

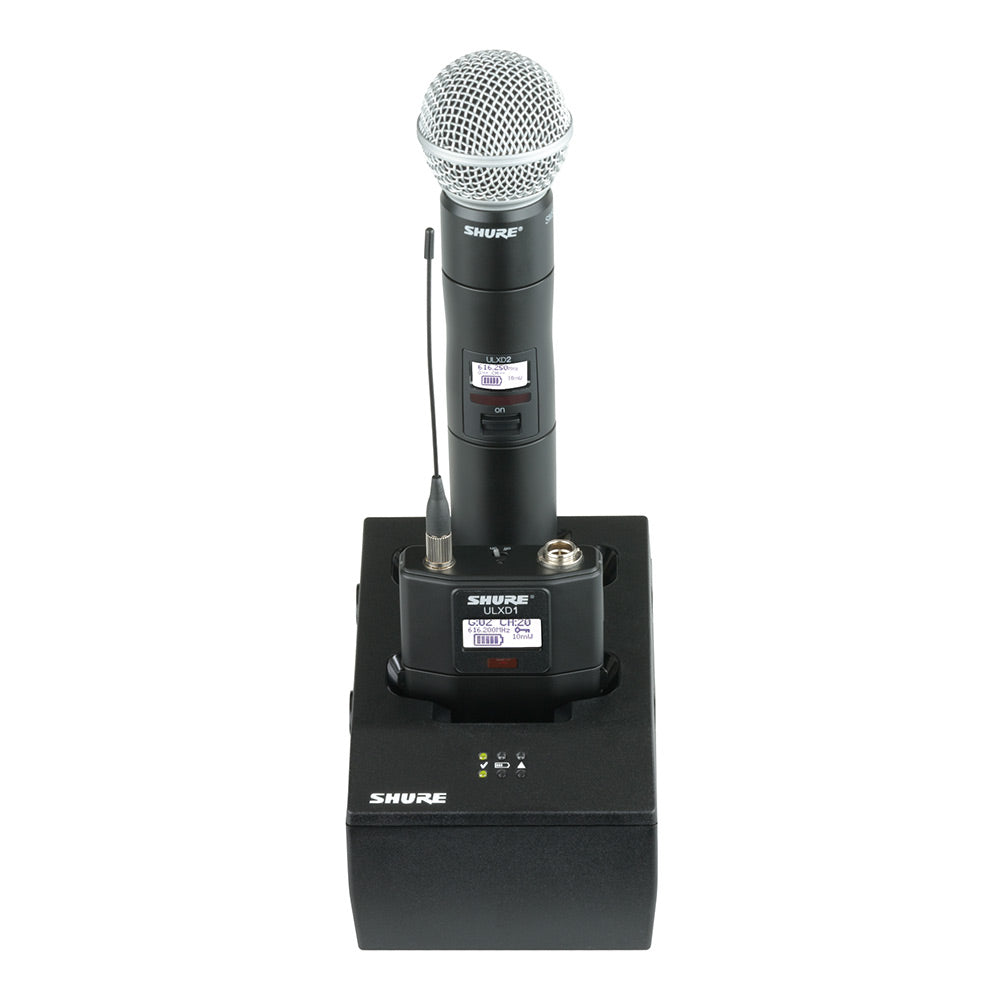

- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
Uncompromising Wireless Audio
- 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
- 20 Hz-20 kHz frequency range with flat response
- Greater than 120 dB dynamic range through the analog outputs
- 130 dB dynamic range (typical) using Dante networked audio
- 60 dB of adjustable system gain easily accessible from the receiver front panel
- No transmitter gain adjustments needed: optimized for any input source
- Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
- Up to 64 MHz overall tuning range (region dependent)
- Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
- High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
- Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
- Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
- Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
- Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
- AES 256-bit encryption equipped for secure wireless transmission
- Ethernet networking for streamlined setup across multiple receivers
- Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatibility
- Rugged metal housing on both transmitters and receiver
- Dual and Quad receivers additionally feature:
- RF cascade ports, internal power supply, and dual Ethernet ports
- Dante networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes audio signal to multiple outputs
Shure Advanced Power Management
- Adapted from industry-leading Axient rechargeable technology
- Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
- Provides ULX-D transmitters with unmatched 11+ hours of performance time
- Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
- AA backwards compatibility
Uncompromising Wireless Audio
- 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
- 20 Hz-20 kHz frequency range with flat response
- Greater than 120 dB dynamic range through the analog outputs
- 130 dB dynamic range (typical) using Dante networked audio
- 60 dB of adjustable system gain easily accessible from the receiver front panel
- No transmitter gain adjustments needed: optimized for any input source
- Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
- Up to 64 MHz overall tuning range (region dependent)
- Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
- High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
- Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
- Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
- Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
- Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
- AES 256-bit encryption equipped for secure wireless transmission
- Ethernet networking for streamlined setup across multiple receivers
- Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatibility
- Rugged metal housing on both transmitters and receiver
- Dual and Quad receivers additionally feature:
- RF cascade ports, internal power supply, and dual Ethernet ports
- Dante networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes audio signal to multiple outputs
Shure Advanced Power Management
- Adapted from industry-leading Axient rechargeable technology
- Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
- Provides ULX-D transmitters with unmatched 11+ hours of performance time
- Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
- AA backwards compatibility
| AUDIO INPUT | |
| Configuration | Unbalanced |
| Maximum Input Level, 1 kHz at 1% THD | 145 dB SPL (SM58), typical |
| Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20 | 120 dBV, A-weighted, typical |
| RF OUTPUT | |
| Antenna Type | Integrated Single Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Proprietary Digital |
| Power | 1 mW, 10 mW, 20 mW |
| Audio Frequency Response | 30 Hz to 20 kHz (±1 dB), flat |
| Dynamic Range | >120 dB |
| Operating Range | 300 ft (100 m) |
| Gain Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries |
| Battery Runtime @ 10 mW | Shure SB900:>12 hours Alkaline: 11 hours |
| Dimensions | 10.1" x 2.0" (256 mm x 51 mm), L x Dia. |
| Weight | 12.0 oz (340 g), without batteries |
| Housing | Machined aluminum |
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.
Features
- 30 Hz-20 kHz range with flat frequency response (actual response is microphone dependent)
- Interchangeable Shure microphone cartridges, including the legendary SM58
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
Uncompromising Wireless Audio
- 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
- 20 Hz-20 kHz frequency range with flat response
- Greater than 120 dB dynamic range through the analog outputs
- 130 dB dynamic range (typical) using Dante networked audio
- 60 dB of adjustable system gain easily accessible from the receiver front panel
- No transmitter gain adjustments needed: optimized for any input source
- Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
- Up to 64 MHz overall tuning range (region dependent)
- Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
- High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
- Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
- Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
- Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
- Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
- AES 256-bit encryption equipped for secure wireless transmission
- Ethernet networking for streamlined setup across multiple receivers
- Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatibility
- Rugged metal housing on both transmitters and receiver
- Dual and Quad receivers additionally feature:
- RF cascade ports, internal power supply, and dual Ethernet ports
- Dante networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes audio signal to multiple outputs
Shure Advanced Power Management
- Adapted from industry-leading Axient rechargeable technology
- Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
- Provides ULX-D transmitters with unmatched 11+ hours of performance time
- Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
- AA backwards compatibility
Uncompromising Wireless Audio
- 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
- 20 Hz-20 kHz frequency range with flat response
- Greater than 120 dB dynamic range through the analog outputs
- 130 dB dynamic range (typical) using Dante networked audio
- 60 dB of adjustable system gain easily accessible from the receiver front panel
- No transmitter gain adjustments needed: optimized for any input source
- Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
- Up to 64 MHz overall tuning range (region dependent)
- Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
- High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
- Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
- Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
- Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
- Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
- AES 256-bit encryption equipped for secure wireless transmission
- Ethernet networking for streamlined setup across multiple receivers
- Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatibility
- Rugged metal housing on both transmitters and receiver
- Dual and Quad receivers additionally feature:
- RF cascade ports, internal power supply, and dual Ethernet ports
- Dante networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes audio signal to multiple outputs
Shure Advanced Power Management
- Adapted from industry-leading Axient rechargeable technology
- Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
- Provides ULX-D transmitters with unmatched 11+ hours of performance time
- Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
- AA backwards compatibility
| AUDIO INPUT | |
| Configuration | Unbalanced |
| Maximum Input Level, 1 kHz at 1% THD | 145 dB SPL (SM58), typical |
| Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20 | 120 dBV, A-weighted, typical |
| RF OUTPUT | |
| Antenna Type | Integrated Single Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Proprietary Digital |
| Power | 1 mW, 10 mW, 20 mW |
| Audio Frequency Response | 30 Hz to 20 kHz (±1 dB), flat |
| Dynamic Range | >120 dB |
| Operating Range | 300 ft (100 m) |
| Gain Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries |
| Battery Runtime @ 10 mW | Shure SB900:>12 hours Alkaline: 11 hours |
| Dimensions | 10.1" x 2.0" (256 mm x 51 mm), L x Dia. |
| Weight | 12.0 oz (340 g), without batteries |
| Housing | Machined aluminum |
