Shure ULXD2/K11 - ULX-D Wireless Handheld Transmitter with KSM11 (K51 Band / 606-670 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

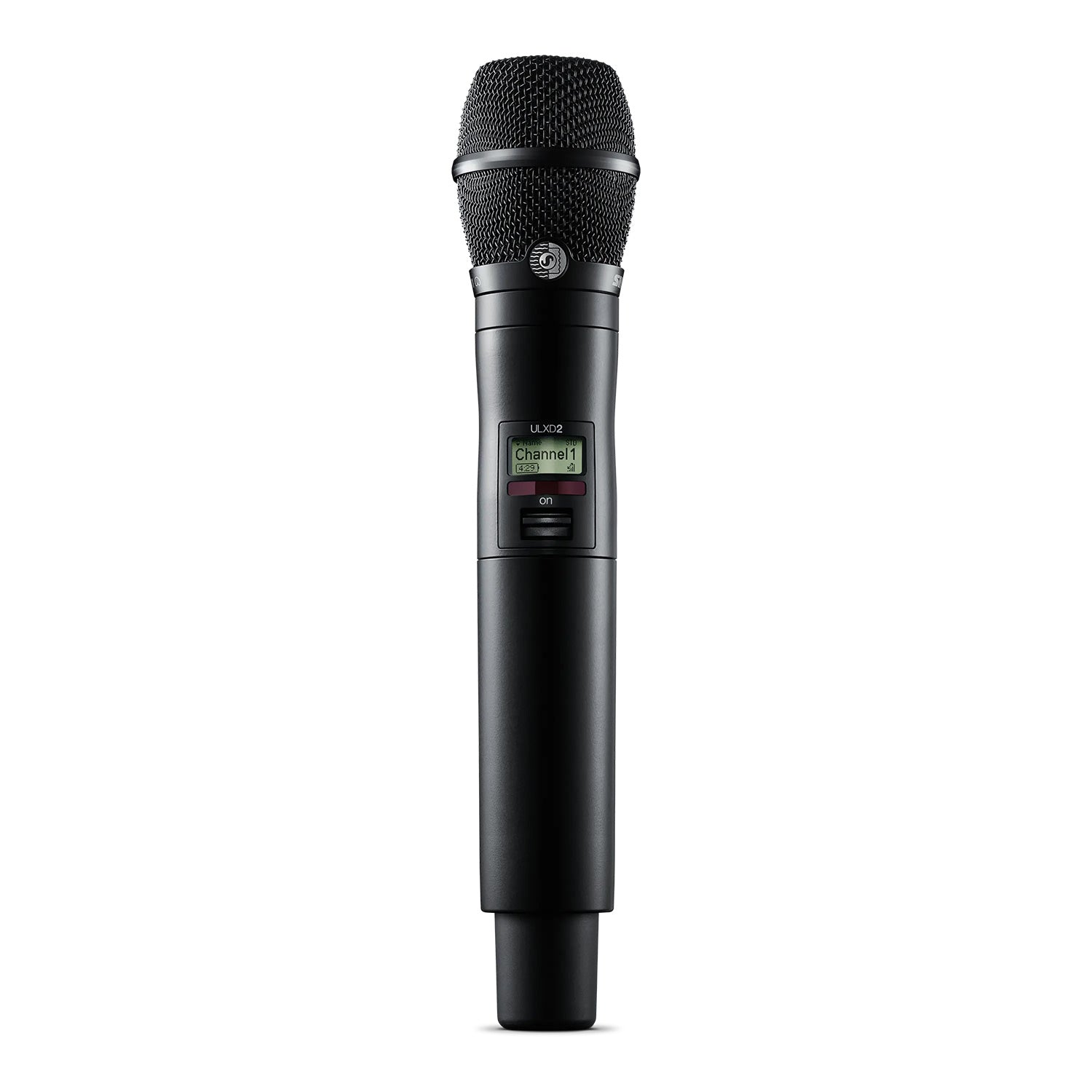

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems featuring the KSM11 Cardioid Condensor Microphone that provides full lows, clear mids and high-end detail, without the need for extensive EQ.
The ULXD/K11 is a handheld wireless microphone transmitter compatible with ULX-D Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
In The Box:
- 1 95B2313 Zipper Bag
- 1 WA371 Microphone Clip
- 1 31A1856 Euro-Threaded Adapter
- 1 80B8201 AA Alkaline Batteries (2)
| AUDIO INPUT | |
| Configuration | Unbalanced |
| Maximum Input Level, 1 kHz at 1% THD | 145 dB SPL (SM58), typical |
| Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20 | 120 dBV, A-weighted, typical |
| RF OUTPUT | |
| Antenna Type | Integrated Single Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Proprietary Digital |
| Power | 1 mW, 10 mW, 20 mW |
| Audio Frequency Response | 30 Hz to 20 kHz (±1 dB), flat |
| Dynamic Range | >120 dB |
| Operating Range | 300 ft (100 m) |
| Gain Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries |
| Battery Runtime @ 10 mW | Shure SB900:>12 hours Alkaline: 11 hours |
| Dimensions | 10.1" x 2.0" (256 mm x 51 mm), L x Dia. |
| Weight | 12.0 oz (340 g), without batteries |
| Housing | Machined aluminum |
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems featuring the KSM11 Cardioid Condensor Microphone that provides full lows, clear mids and high-end detail, without the need for extensive EQ.
The ULXD/K11 is a handheld wireless microphone transmitter compatible with ULX-D Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
In The Box:
- 1 95B2313 Zipper Bag
- 1 WA371 Microphone Clip
- 1 31A1856 Euro-Threaded Adapter
- 1 80B8201 AA Alkaline Batteries (2)
| AUDIO INPUT | |
| Configuration | Unbalanced |
| Maximum Input Level, 1 kHz at 1% THD | 145 dB SPL (SM58), typical |
| Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20 | 120 dBV, A-weighted, typical |
| RF OUTPUT | |
| Antenna Type | Integrated Single Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Proprietary Digital |
| Power | 1 mW, 10 mW, 20 mW |
| Audio Frequency Response | 30 Hz to 20 kHz (±1 dB), flat |
| Dynamic Range | >120 dB |
| Operating Range | 300 ft (100 m) |
| Gain Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900 Rechargeable Li-Ion or AA batteries |
| Battery Runtime @ 10 mW | Shure SB900:>12 hours Alkaline: 11 hours |
| Dimensions | 10.1" x 2.0" (256 mm x 51 mm), L x Dia. |
| Weight | 12.0 oz (340 g), without batteries |
| Housing | Machined aluminum |
