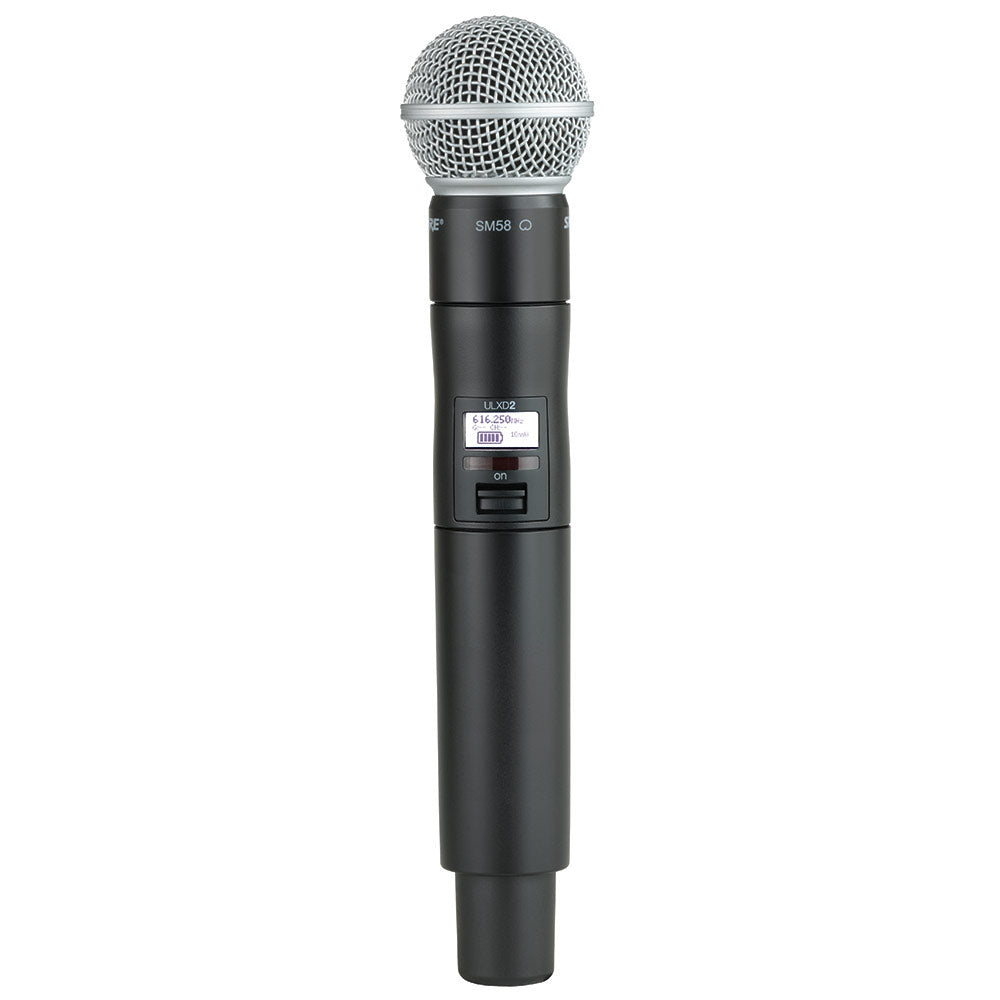

Shure ULXD2/SM58 Wireless Handheld Transmitter (G50 Band - 470-534 MHz)


  • Dale #:

    SHUR-ULXD2SM58G50
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargea... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Features

  • 30 Hz-20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges, including the legendary SM58
  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Shure Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

Uncompromising Wireless Audio

  • 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
  • 20 Hz-20 kHz frequency range with flat response
  • Greater than 120 dB dynamic range through the analog outputs
  • 130 dB dynamic range (typical) using Dante networked audio
  • 60 dB of adjustable system gain easily accessible from the receiver front panel
  • No transmitter gain adjustments needed: optimized for any input source
  • Wide selection of trusted Shure Microphones

Extremely Efficient and Reliable RF Performance

  • Up to 64 MHz overall tuning range (region dependent)
  • Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
  • High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
  • Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
  • Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
  • Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available

Scalable, Intelligent Hardware

  • Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
  • AES 256-bit encryption equipped for secure wireless transmission
  • Ethernet networking for streamlined setup across multiple receivers
  • Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
  • AMX/Crestron control
  • AXT600 Axient Spectrum Manager compatibility
  • Rugged metal housing on both transmitters and receiver
  • Dual and Quad receivers additionally feature:
    • RF cascade ports, internal power supply, and dual Ethernet ports
    • Dante networked audio over Ethernet
    • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
    • Audio summing routes audio signal to multiple outputs

Shure Advanced Power Management

  • Adapted from industry-leading Axient rechargeable technology
  • Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
  • Provides ULX-D transmitters with unmatched 11+ hours of performance time
  • Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
  • AA backwards compatibility

Uncompromising Wireless Audio

  • 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
  • 20 Hz-20 kHz frequency range with flat response
  • Greater than 120 dB dynamic range through the analog outputs
  • 130 dB dynamic range (typical) using Dante networked audio
  • 60 dB of adjustable system gain easily accessible from the receiver front panel
  • No transmitter gain adjustments needed: optimized for any input source
  • Wide selection of trusted Shure Microphones

Extremely Efficient and Reliable RF Performance

  • Up to 64 MHz overall tuning range (region dependent)
  • Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
  • High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
  • Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
  • Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
  • Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available

Scalable, Intelligent Hardware

  • Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
  • AES 256-bit encryption equipped for secure wireless transmission
  • Ethernet networking for streamlined setup across multiple receivers
  • Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
  • AMX/Crestron control
  • AXT600 Axient Spectrum Manager compatibility
  • Rugged metal housing on both transmitters and receiver
  • Dual and Quad receivers additionally feature:
    • RF cascade ports, internal power supply, and dual Ethernet ports
    • Dante networked audio over Ethernet
    • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
    • Audio summing routes audio signal to multiple outputs

Shure Advanced Power Management

  • Adapted from industry-leading Axient rechargeable technology
  • Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
  • Provides ULX-D transmitters with unmatched 11+ hours of performance time
  • Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
  • AA backwards compatibility

More +

Product Specs

System Specifications
RF Carrier RangeG50 Band (470 to 534 MHz)
Working Range 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference
RF Tuning Step Size 25 kHz, varies by region
Image Rejection >70 dB, typical
RF Sensitivity-98 dBm at 10-5 BER
Latency<2.9 ms
Audio Frequency ResponseULXD1: 20 Hz - 20 kHz (+/- 1 dB)
ULXD2: 30 Hz - 20 kHz (+/- 1 dB)
Note: Dependent on microphone type
Audio Dynamic Range
System Gain @ +10
XLR Analog Output: >120 dB, A-weighted
Dante Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion
-12 dBFS input, System Gain @ +10
<0.1%
System Audio PolarityPositive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
Operating Temperature Range-18ºC (0ºF) to 50ºC (122ºF)
Note: Battery characterstics may limit this range.
Storage Temperature Range-29ºC (-20ºF) to 74ºC (165ºF)
Note: Battery characteristics may limit this range.
