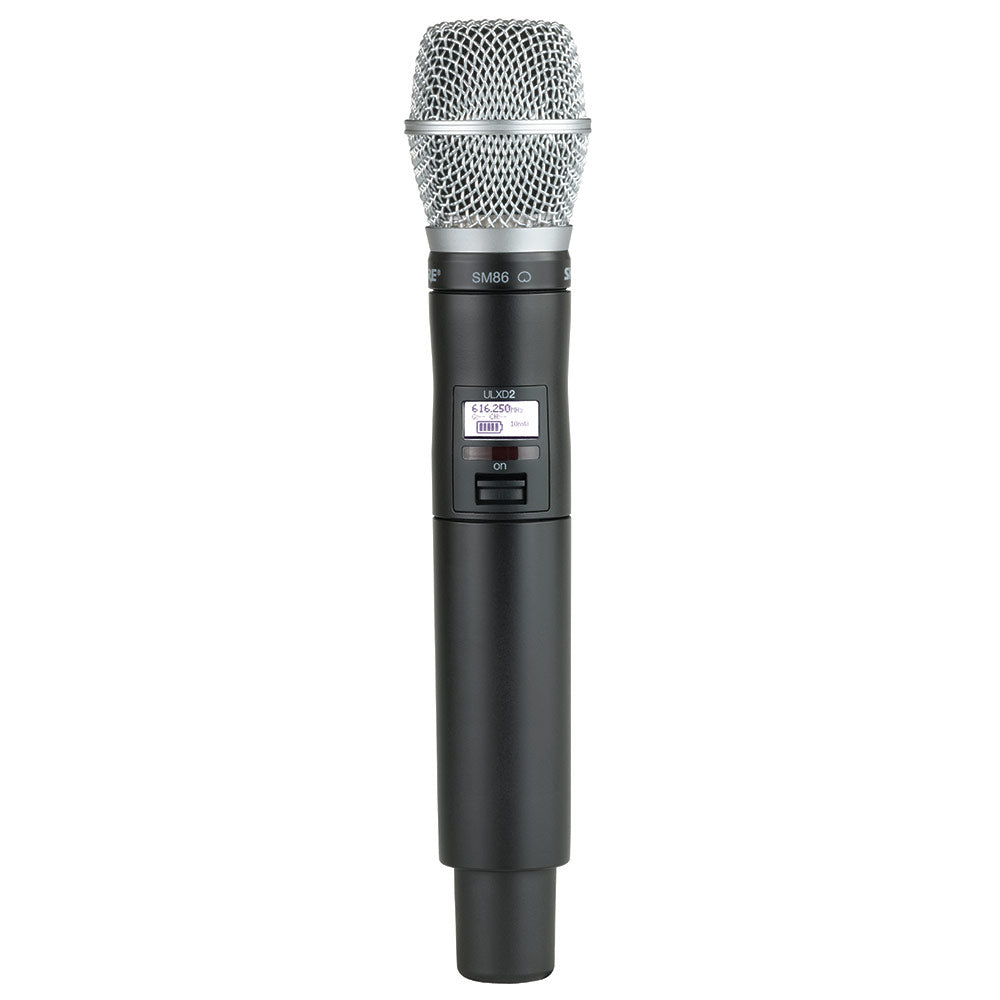

Shure ULXD2/SM86 Wireless Handheld Transmitter (V50 Band - 174-216 MHz)


  • Dale #:

    SHUR-ULXD2SM86V50
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargea... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Features

  • 30 Hz-20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges, including the legendary SM58
  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Shure Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

Uncompromising Wireless Audio

  • 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
  • 20 Hz-20 kHz frequency range with flat response
  • Greater than 120 dB dynamic range through the analog outputs
  • 130 dB dynamic range (typical) using Dante networked audio
  • 60 dB of adjustable system gain easily accessible from the receiver front panel
  • No transmitter gain adjustments needed: optimized for any input source
  • Wide selection of trusted Shure Microphones

Extremely Efficient and Reliable RF Performance

  • Up to 64 MHz overall tuning range (region dependent)
  • Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
  • High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
  • Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
  • Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
  • Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available

Scalable, Intelligent Hardware

  • Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
  • AES 256-bit encryption equipped for secure wireless transmission
  • Ethernet networking for streamlined setup across multiple receivers
  • Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
  • AMX/Crestron control
  • AXT600 Axient Spectrum Manager compatibility
  • Rugged metal housing on both transmitters and receiver
  • Dual and Quad receivers additionally feature:
    • RF cascade ports, internal power supply, and dual Ethernet ports
    • Dante networked audio over Ethernet
    • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
    • Audio summing routes audio signal to multiple outputs

Shure Advanced Power Management

  • Adapted from industry-leading Axient rechargeable technology
  • Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
  • Provides ULX-D transmitters with unmatched 11+ hours of performance time
  • Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
  • AA backwards compatibility

More +

Product Specs

System Specifications
RF Carrier RangeV50 Band (174-216 MHz)
Working Range 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference
RF Tuning Step Size 25 kHz, varies by region
Image Rejection >70 dB, typical
RF Sensitivity-98 dBm at 10-5 BER
Latency<2.9 ms
Audio Frequency ResponseULXD1: 20 Hz - 20 kHz (+/- 1 dB)
ULXD2: 30 Hz - 20 kHz (+/- 1 dB)
Note: Dependent on microphone type
Audio Dynamic Range
System Gain @ +10
XLR Analog Output: >120 dB, A-weighted
Dante Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion
-12 dBFS input, System Gain @ +10
<0.1%
System Audio PolarityPositive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
Operating Temperature Range-18ºC (0ºF) to 50ºC (122ºF)
Note: Battery characterstics may limit this range.
Storage Temperature Range-29ºC (-20ºF) to 74ºC (165ºF)
Note: Battery characteristics may limit this range.
