Shure ULXD4 Wireless Receiver (J50A Band - 572-608 + 614-616MHz)


  • Dale #:

    SHUR-ULXD4J50A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

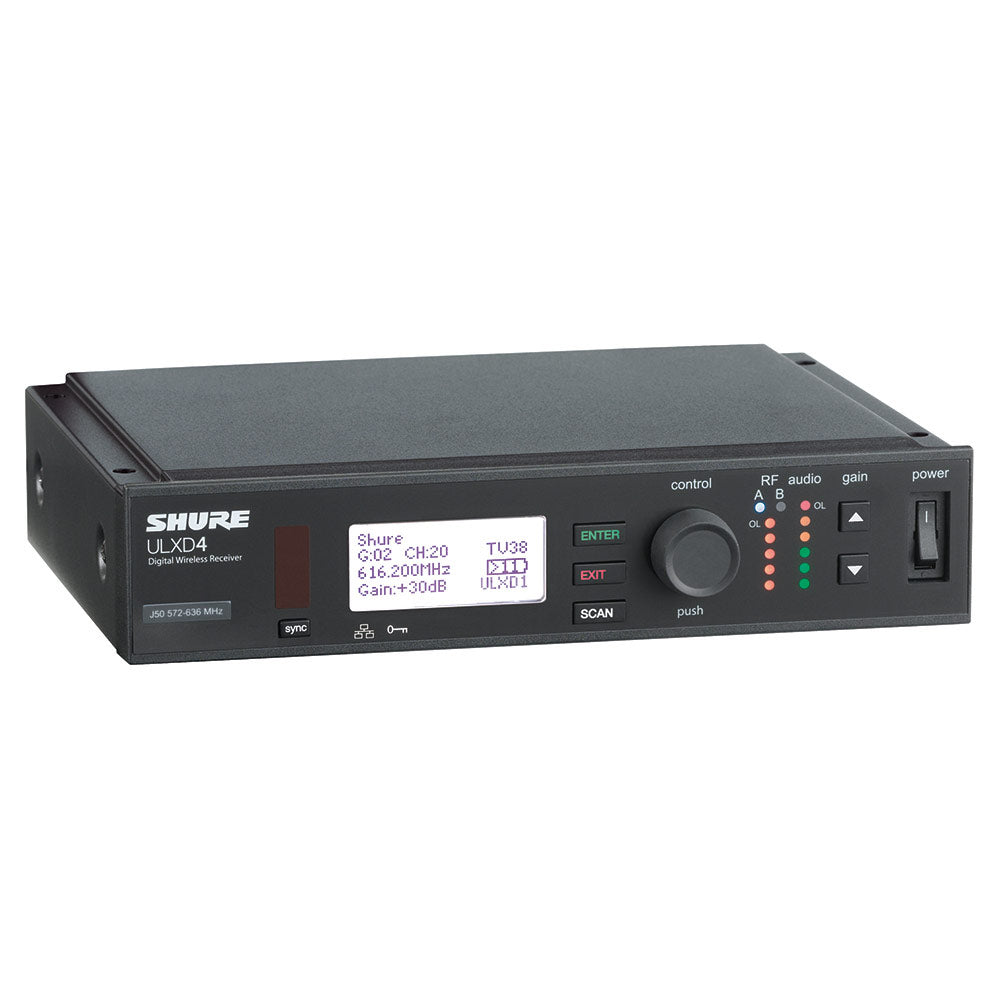

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Wireless Systems. With an expansive set of professional features, including 24-bit / 48 kHz audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX offers uncompromising wireless tail... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Wireless Systems. With an expansive set of professional features, including 24-bit / 48 kHz audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX offers uncompromising wireless tailored for professional sound reinforcement.

Features

  • Predictive switching diversity
  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
    Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
  • Support for frequency coordination with the Axient Spectrum Manager
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable 1/2 wave antennas
  • Furnished rack hardware

More +

Product Specs

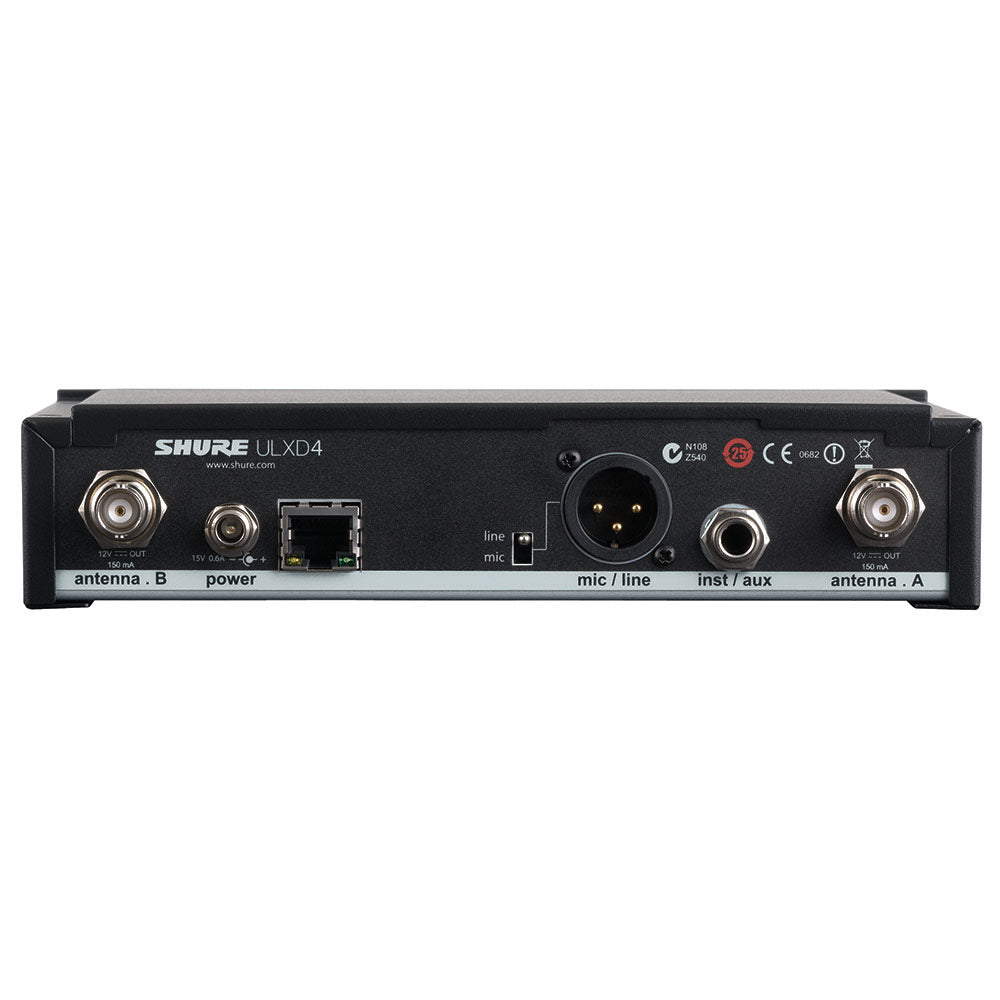

RF INPUT
Spurious Rejection>80 dB, typical
Connector TypeBNC
Impedance50 Ohms
Bias Voltage12-13 V DC, 170 mA maximum, per antenna
AUDIO OUTPUT
Gain Adjustment Range-18 to +42 dB in 1 dB steps (plus Mute setting)
Configuration1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms
Full Scale Output1/4" (6.35 mm): +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
Mic / Line Switch30 dB pad
Phantom Power Protection1/4" (6.35 mm): Yes
XLR: Yes
NETWORKINGPower Over Ethernet (PoE)
No, protected
Network InterfaceSingle Port Ethernet 10 / 100 Mbps
Network Addressing CapabilityDHCP or Manual IP address
Maximum Cable Length328 ft (100 m)
ADDITIONAL SPECSAudio Frequency Response
20 Hz-20 kHz, flat
Dynamic Range120 dB, extended
Tuning RangeUp to 64 MHz
Dimensions7.75" x 6.75" x 1.65" (197 mm x 171 mm x 42 mm), H x W x D
Weight2.0 lbs (913 g), without antennas
HousingGalvanized steel
