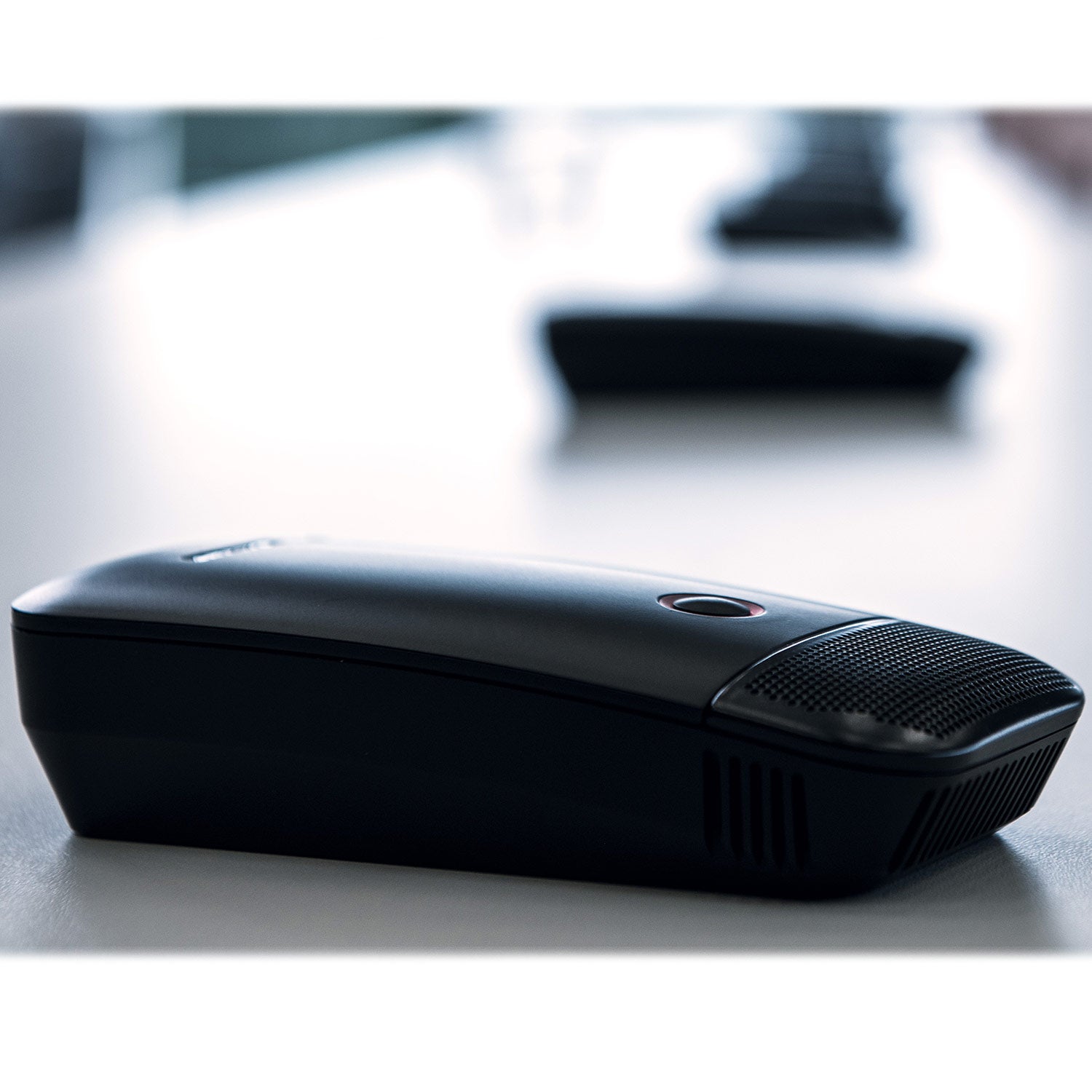

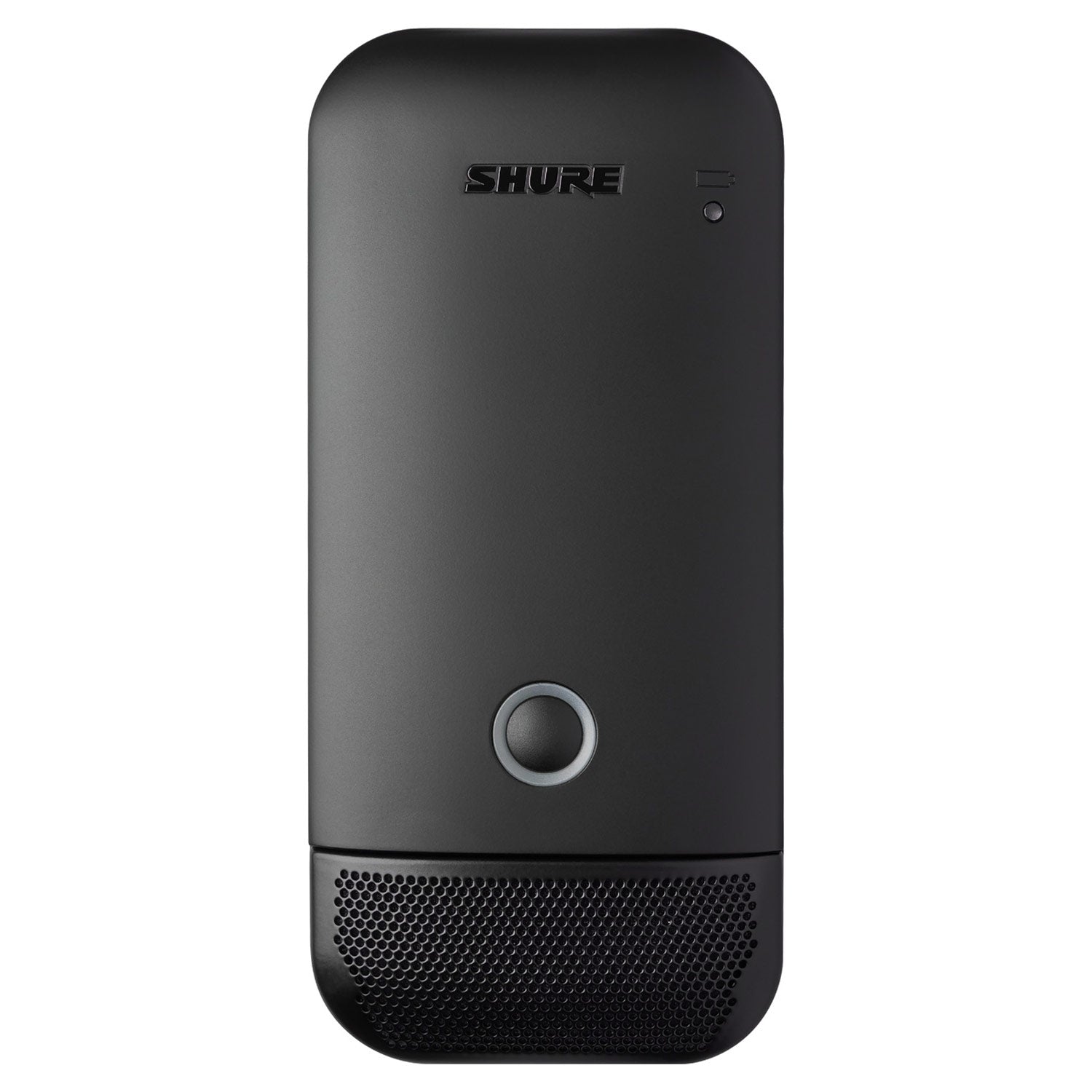

Shure ULXD6/O Omni Boundary Microphone Transmitter for ULX-D Wireless (Black / J50 Band - 572-636 MHz)


  • Dale #:

    SHUR-ULXD6OJ50
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The ULXD6 Boundary Microphone Transmitter offers a low-profile boundary form factor that is ideal for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ULXD6 Boundary Microphone Transmitter offers a low-profile boundary form factor that is ideal for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

Features:

  • Very low latency makes the ULXD6 ideal for meetings that require live sound reinforcement
  • Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
  • Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas for efficient setup
  • Compatible with ULX-D® and QLX-D® digital receivers
  • Optional SB900A rechargeable batteries provide up to 9 hours of runtime
  • Compatible with standard AA alkaline batteries
  • Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings

More +

Product Specs

RF Carrier Range 174–216 MHz, 470–865 MHz, 1492–1525 MHz, 1785–1805 MHz
Note: Varies by region
Working Range 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz, varies by region
Image Rejection >70 dB, typical
RF Sensitivity -98 dBm at 10-5 BER
Latency <2.9 ms
Audio Frequency Response ULXD1: 20 Hz – 20 kHz (±1 dB)
ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type
Audio Dynamic Range
System Gain @ +10
XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion
?12 dBFS input, System Gain @ +10
<0.1%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range ?18 °C (0 °F) to 50 °C (122 °F)
Note: Battery characteristics may limit this range.
Storage Temperature Range ?29°C (?20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Gain Offset Range 0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
Battery Runtime
@ 10 mW
Shure SB900: Up to 9 hours 20 minutes
AA batteries: Up to 8 hours 40 minutes
Dimensions 114 mm × 62 mm × 34 mm (4.5 in. × 2.4 in. × 1.4 in.) H × W × D
Weight 241 g with AA batteries
Housing Molded Plastic
Audio Input
Microphone Pattern Cardioid or Omnidirectional
RF Output
Antenna Type Integrated PIFA
Impedance 50 ?
Occupied Bandwidth <200 kHz
Modulation Type Shure proprietary digital
Power 1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region

More +
