Shure ULXD8 Gooseneck Base Transmitter for ULX-D Wireless (Black / J50A Band - 572-608 + 614-616MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Shure ULXD8 Gooseneck Base Transmitter for ULX-D Wireless (Black / J50A Band - 572-608 + 614-616MHz)
Sale price$581.00
Regular price$813.00
Description
This unit requires a MicroFlex gooseneck microphone to operate. Microphones are not included and sold separately.

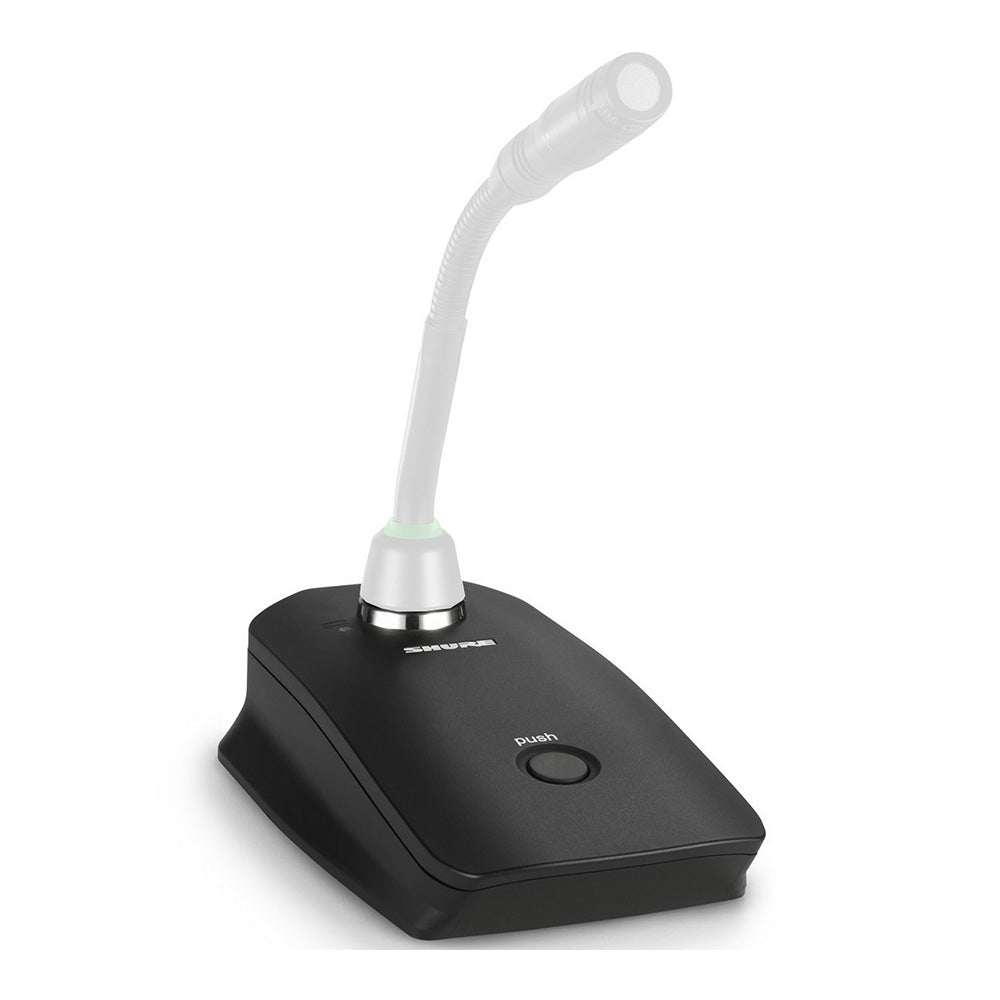

The ULXD8 Gooseneck Base Transmitter offers a flexible gooseneck mic form factor that is ideal for use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the the ULXD8 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.
Features:
- Designed for use with Shure Microflex MX405, MX410, and MX415 gooseneck microphones, as well as Microflex MX410DF and MX415DF Dualflex gooseneck microphones
- Very low latency makes the ULXD8 ideal for meetings that require live sound reinforcement
- Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
- Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD8 gooseneck base transmitters to be used with just one pair of receiving antennas for efficient setup
- Compatible with ULX-D and QLX-D digital receivers
- Optional SB900A rechargeable batteries provide up to 9 hours of runtime
- Compatible with standard AA alkaline batteries
- Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
- Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
- Adjustable RF power, high-pass filter, and power lock settings
| RF Carrier Range | 174-216 MHz, 470-865 MHz, 1492-1525 MHz, 1785-1805 MHz Note: Varies by region (See Frequency Range and Ouput Power table) |
| Working Range | 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz, varies by region |
| Image Rejection | >70 dB, typical |
| RF Sensitivity | -98 dBm at 10-5 BER |
| Latency | <2.9 ms |
| Audio Frequency Response | ULXD1: 20 Hz - 20 kHz (±1 dB) ULXD2: 30 Hz - 20 kHz (±1 dB) Note: Dependent on microphone type |
| Audio Dynamic Range System Gain @ +10 | XLR Analog Output:>120 dB, A-weighted Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted |
| Total Harmonic Distortion | ?12 dBFS input, System Gain @ +10 <0.1% |
| System Audio Polarity | Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output. |
| Operating Temperature Range | ?18 ¡C (0 ¡F) to 50 ¡C (122 ¡F) Note: Battery characteristics may limit this range. |
| Storage Temperature Range | ?29¡C (?20¡F) to 74¡C (165¡F) Note: Battery characteristics may limit this range |
| Gain Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900A Rechargeable Li-Ion or AA batteries |
| Battery Runtime @ 10 mW | Shure SB900A: Up to 9 hours Alkaline: Up to 8 hours 20 minutes |
| Dimensions | 137 mm _ 78 mm _ 41 mm (5.4 in. _ 3.1 in. _ 1.6 in.) H _ W _ D |
| Weight | 293 g (10.3 oz.), with 2 AA batteries |
| Housing | Molded Plastic |
| Audio Input | |
| Connector | 6-pin connector for Shure MX405/MX410/MX415 |
| Configuration | Unbalanced |
| Impedance | >20 k? |
| RF Output | |
| Antenna Type | Integrated PIFA |
| Impedance | 50 ? |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Proprietary Digital |
| Power | 1 mW, 10 mW, 20 mW See Frequency Range and Ouput Power table, varies by region |
This unit requires a MicroFlex gooseneck microphone to operate. Microphones are not included and sold separately.
The ULXD8 Gooseneck Base Transmitter offers a flexible gooseneck mic form factor that is ideal for use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the the ULXD8 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.
Features:
- Designed for use with Shure Microflex MX405, MX410, and MX415 gooseneck microphones, as well as Microflex MX410DF and MX415DF Dualflex gooseneck microphones
- Very low latency makes the ULXD8 ideal for meetings that require live sound reinforcement
- Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
- Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD8 gooseneck base transmitters to be used with just one pair of receiving antennas for efficient setup
- Compatible with ULX-D and QLX-D digital receivers
- Optional SB900A rechargeable batteries provide up to 9 hours of runtime
- Compatible with standard AA alkaline batteries
- Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
- Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
- Adjustable RF power, high-pass filter, and power lock settings
| RF Carrier Range | 174-216 MHz, 470-865 MHz, 1492-1525 MHz, 1785-1805 MHz Note: Varies by region (See Frequency Range and Ouput Power table) |
| Working Range | 100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz, varies by region |
| Image Rejection | >70 dB, typical |
| RF Sensitivity | -98 dBm at 10-5 BER |
| Latency | <2.9 ms |
| Audio Frequency Response | ULXD1: 20 Hz - 20 kHz (±1 dB) ULXD2: 30 Hz - 20 kHz (±1 dB) Note: Dependent on microphone type |
| Audio Dynamic Range System Gain @ +10 | XLR Analog Output:>120 dB, A-weighted Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted |
| Total Harmonic Distortion | ?12 dBFS input, System Gain @ +10 <0.1% |
| System Audio Polarity | Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output. |
| Operating Temperature Range | ?18 ¡C (0 ¡F) to 50 ¡C (122 ¡F) Note: Battery characteristics may limit this range. |
| Storage Temperature Range | ?29¡C (?20¡F) to 74¡C (165¡F) Note: Battery characteristics may limit this range |
| Gain Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900A Rechargeable Li-Ion or AA batteries |
| Battery Runtime @ 10 mW | Shure SB900A: Up to 9 hours Alkaline: Up to 8 hours 20 minutes |
| Dimensions | 137 mm _ 78 mm _ 41 mm (5.4 in. _ 3.1 in. _ 1.6 in.) H _ W _ D |
| Weight | 293 g (10.3 oz.), with 2 AA batteries |
| Housing | Molded Plastic |
| Audio Input | |
| Connector | 6-pin connector for Shure MX405/MX410/MX415 |
| Configuration | Unbalanced |
| Impedance | >20 k? |
| RF Output | |
| Antenna Type | Integrated PIFA |
| Impedance | 50 ? |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Proprietary Digital |
| Power | 1 mW, 10 mW, 20 mW See Frequency Range and Ouput Power table, varies by region |
