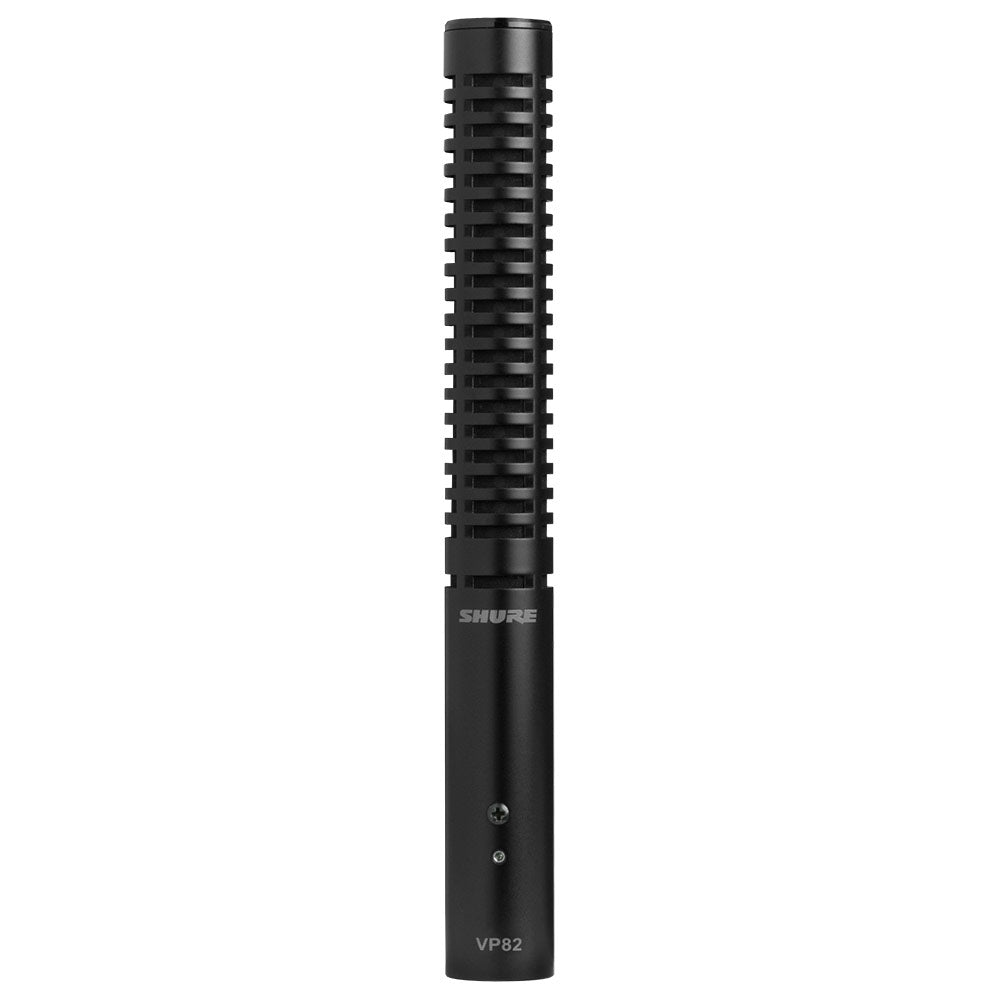

Shure VP82 End Address Condenser Shotgun Microphone


  • Dale #:

    SHUR-VP82
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The VP82 is a professional shotgun microphone for use in A / V sound reinforcement. Compact and lightweight with a wide aperture and excellent off-axis rejection, the VP82 is the affordable and reliable choice for camera-mounted broadcast and media production applications.Features Best-in-class a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The VP82 is a professional shotgun microphone for use in A / V sound reinforcement. Compact and lightweight with a wide aperture and excellent off-axis rejection, the VP82 is the affordable and reliable choice for camera-mounted broadcast and media production applications.

Features

  • Best-in-class audio performance
  • Integrated preamplifier design (not modular)
  • Wide aperture for near-field sound sources
  • Natural off-axis rejection
  • Economical choice with small footprint; compact and lightweight
  • Superior Shure design and rugged, roadworthy construction

More +

Product Specs

Cartridge TypeElectret Condenser
Frequency Response150 to 20,000 Hz
Polar PatternSupercardioid / lobar
Output Impedance144 O
Sensitivity (open circuit voltage, @ 1 kHz, typical)15.8 mV/Pa
Maximum SPL (1 kHz at 1% THD)2500 O load: 137.5 dB SPL
1000 O load: 131.5 dB SPL
Signal-to-Noise Ratio79 dB
Dynamic Range (@ 1 kHz)2500 O load: 122.5 dB
1000 O load: 116.5 dB
Clipping Level (@ 1 kHz, 1% THD)2500 O load: 7.0 dBV
1000 O load: 0.0 dBV
Self Noise (equivalent SPL, A-weighted, typical)15.0 dB SPL-A
Common Mode Rejection (20 to 20,000 Hz)= 55 dB
Operating Temperature Range-18°C (0°F) to 57°C (135°F)
Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
Operating Relative Humidity0 to 95%
PolarityPositive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
HousingSatin-black vinyl painted aluminum alloy with stainless steel screen
Power Requirements11–52 V DC phantom power (IEC-61938), < 2.0 mA
Net Weight76 g (2.7 oz.)
Length195 mm (7.68 in)

More +
