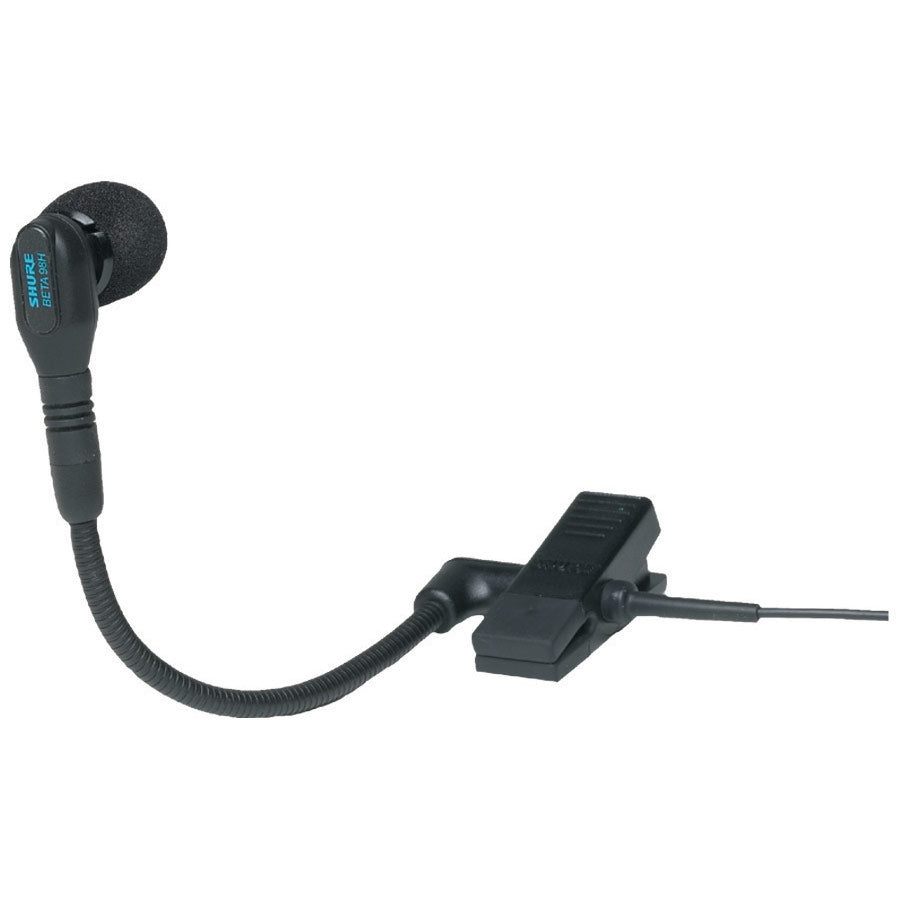

Shure WB98H/C Beta 98 Clip-On Condenser Instrument Microphone with TA4F Connector


  • Dale #:

    SHUR-WB98HC
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Shure WB98H/C (the wireless version of the Beta 98H/C) is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the microphone to be easily posit... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Shure WB98H/C (the wireless version of the Beta 98H/C) is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the microphone to be easily positioned and secured in place, and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

Features:
  • The WB98H/C features transformerless preamplifier circuitry, which improves linearity across the full frequency range.
  • The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise.
  • Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
  • Tailored frequency response for studio quality performance
  • Wide dynamic range for use in high SPL environments
  • Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound
  • Optional A98D drum mount is unobtrusive and versatile--allows precise positioning of the microphone while holding it firmly in place
  • Compact design reduces stage clutter
  • Detachable cable for easy storage
  • Interchangeable microphone cartridges with different polar patterns are available
  • Legendary Shure quality, ruggedness, and reliability

More +

Product Specs

TypeCondenser (electret bias)
Frequency Response20 to 20,000 Hz
Polar PatternSupercardioid (as supplied), uniform with frequency, symmetrical about axis. Cartridge for cardioid polar pattern also available.
Output Level (at 1,000 Hz)
Open Circuit Voltage-59 dBV/Pa* (1 mV) typical)
Maximum SPL (20 Hz to 20 kHz, less than 1% THD)
2.5 kilohm load160 dB
1 kilohm load156 dB
Preamplifier Output Clipping Level (20 Hz to 20 kHz, less than 1% THD)
2.5 kilohm load+ 6 dBV (2.0 V)
1 kilohm load+ 2 dBV (1.26 V)
Dynamic Range (at 20 Hz to 20 kHz, less than 1% THD, 2.5 kilohm load)125 dB (max SPL minus A-weighted noise)
Output Noise35 dB SPL, A-weighted
Signal-to-Noise Ratio59 dB re 94 dB SPL
Output Impedance Rated at 150 ohms (actual)
Recommended minimum load impedance1 kilohm
Hum Pickup-7.5 dB equivalent SPL in 1 mOe field (60Hz)
PolarityPositive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Phantom Power48 Vdc +/- 4 Vdc(IEC-268-15/DIN 45 596), positive pins 2 and 3
Cable
BETA 98/S7.6 m (25 ft) light-weight, two-conductor shielded, TA4F to TA3F mini connectors
BETA 98D/S4.6 m (15 ft) heavy-duty, two-conductor shielded, TA4F to TA3F mini connectors
Case
MicrophoneMatte black enamel brass case and stainless steel inner grille
PreamplifierMatte black enamel finished steel
Dimensions
Microphone11.7 mm X 35.6 mm (0.46 in. X 1.40 in.)
Preamplifier20 mm X 99 mm (0.79 in. X 3.89 in.)
Net Weight
Microphone12 g (0.4 oz) less cable
Preamplifier96 g (3.4 oz)
