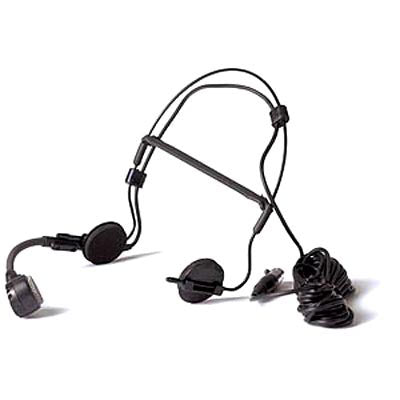

Shure WBH54B BETA54 Cardioid Condensor Headworn Microphone with TA4F Connector - Black
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Shure Beta 54TM is a subminiature, electret condenser head worn microphone. It provides uncompromised sound quality and reliability with minimal visibility in applications such as broadcast, theater, and touring. Despite their small size, the condenser element delivers full, clear, and natural reproduction of speech and vocals. The microphone features a durable, low-profile wire frame headband which is fully adjustable for stability and comfort. A plastic carrying case protects the microphone and its accessories.
Features
- Supercardioid polar pattern provides maximum gain-before-feedback and ambient rejection
- Extended frequency response tailored for vocal performances
- Able to handle extremely high sound pressure levels (SPL)
- Snap-fit foam windscreens stay in place during intensive movement
- Comes with a TA4F connector for wireless applications
| Transducer | Electret Condenser |
| Polar Pattern | Super-cardioid |
| Frequency Response | 50Hz to 20kHz |
| Dynamic Range (Typical) | 110dB (max. SPL with 1k load, minus typical A-wt. noise) |
| Signal-to-Noise Ratio | 55dB @ 94dB SPL |
| Maximum Input Sound Level | 149dB SPL produces 1% THD/1k ohms load |
| Power Requirements | Phantom power; 11 to 52VDC |
| Output Impedance | 136 ohms |
| Output Connectors | TA4-Female Connector |
| Pad | No |
| Low Frequency Roll-Off | No |
| Dimensions | 5ft (1.5m) cable length |
| Weight | 4.75 oz (135.35 g) |
The Shure Beta 54TM is a subminiature, electret condenser head worn microphone. It provides uncompromised sound quality and reliability with minimal visibility in applications such as broadcast, theater, and touring. Despite their small size, the condenser element delivers full, clear, and natural reproduction of speech and vocals. The microphone features a durable, low-profile wire frame headband which is fully adjustable for stability and comfort. A plastic carrying case protects the microphone and its accessories.
Features
- Supercardioid polar pattern provides maximum gain-before-feedback and ambient rejection
- Extended frequency response tailored for vocal performances
- Able to handle extremely high sound pressure levels (SPL)
- Snap-fit foam windscreens stay in place during intensive movement
- Comes with a TA4F connector for wireless applications
| Transducer | Electret Condenser |
| Polar Pattern | Super-cardioid |
| Frequency Response | 50Hz to 20kHz |
| Dynamic Range (Typical) | 110dB (max. SPL with 1k load, minus typical A-wt. noise) |
| Signal-to-Noise Ratio | 55dB @ 94dB SPL |
| Maximum Input Sound Level | 149dB SPL produces 1% THD/1k ohms load |
| Power Requirements | Phantom power; 11 to 52VDC |
| Output Impedance | 136 ohms |
| Output Connectors | TA4-Female Connector |
| Pad | No |
| Low Frequency Roll-Off | No |
| Dimensions | 5ft (1.5m) cable length |
| Weight | 4.75 oz (135.35 g) |
