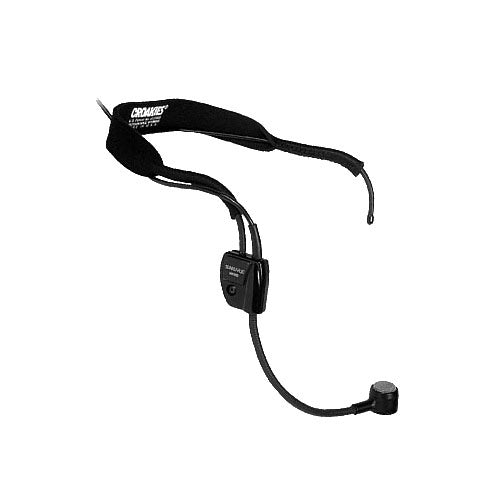

Shure WH20QTR Headworn Dynamic Microphone with 1/4" Connector



  • Dale #:

    SHUR-WH20QTR

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Shure WH20 is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances.The cardioid (unidirectional) pickup pattern provides gr... Read More

Retail Price: $95.00 Our Price: $80.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Shure WH20 is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances.

The cardioid (unidirectional) pickup pattern provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency roll-off to compensate for the proximity effect inherent in cardioid mics during close-talk operation.

Includes right-angle 1/4" phone plug for unbalanced mic input

Features:

  • Lightweight wireframe and elastic headband adjust for a secure, comfortable fit
  • Extra-strong, small-diameter attached microphone cable resists breakage
  • Collapsible microphone boom for easy storage and transportation
  • Smooth, natural frequency response comparable to high-quality dynamic hand-held vocal microphones
  • High input clipping level eliminates overload distortion
  • Reliable at temperature and humidity extremes
  • Supplied foam windscreen and clothing clip

More +

Product Specs

TypeDynamic, Close-Talking
Frequency Response (at 8 mm)50 to 15,000 Hz
Polar PatternCardioid (unidirectional) response -- uniform with frequency, symmetrical about axis
ImpedanceMicrophone rating impedance is 150 ohms (200 ohms actual)
Output Level (close talked (at 12.5 mm (1/2 inch)) at 1,000 Hz)
Open Circuit Voltage-67.0 db/Pa (0.45 mV) (1 Pa = 94 dB SPL)
Hum Sensitivity38.4 dB equivalent SPL in a 1 millioersted field
Polarity
WH20QTR as a wired microphonePositive sound pressure on diaphragm produces positive voltage on tip with respect to sleeve (ground) of microphone output phone plug connector.
WH20QTR, WH20TQG used with Shure Wireless Systems
1/4-inch Phone Jack Receiver OutputsPositive sound pressure on diaphragm produces positive voltage on tip of receiver output connector.
3-pin XLR Receiver OutputsPositive sound pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 of low-impedance output connector, and on tip of Aux output connector.
WH20XLR as a wired microphonePositive sound pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 of microphone output XLR connector.
Environmental Conditions
Operating Temperatures-18 to 60 degrees C (0 to 140 degrees F)
Storage Temperatures-29 to 74 degreesC (-20 to 165 degrees F)
Humidity0 to 95%
CableAttached 1.22 m (4 ft), small-diameter, shielded, PVC-jacketed, two-conductor.
Cable Connector
WH20QTRRight-angle 1/4-inch phone plug
WH20TQGFemale 4 pin mini connector (TA4F)
WH20XLRThree-pin XLR with detachable belt clip
ConstructionBlack thermoplastic housing; stainless steel grille; black TEFLON®-coated stainless steel wireframe; flexible plastic-clad monel gooseneck; rubber/nylon elastic headband
Net Weight (including connector)
WH2063 g (2.2 oz)
WH20TQG63 g (2.2 oz)
WH20XLR98 g (3.5 oz)

More +
