Shure WL183MW/O-TQG - Omnidirectional Lavalier Microphone (White / TA4F)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

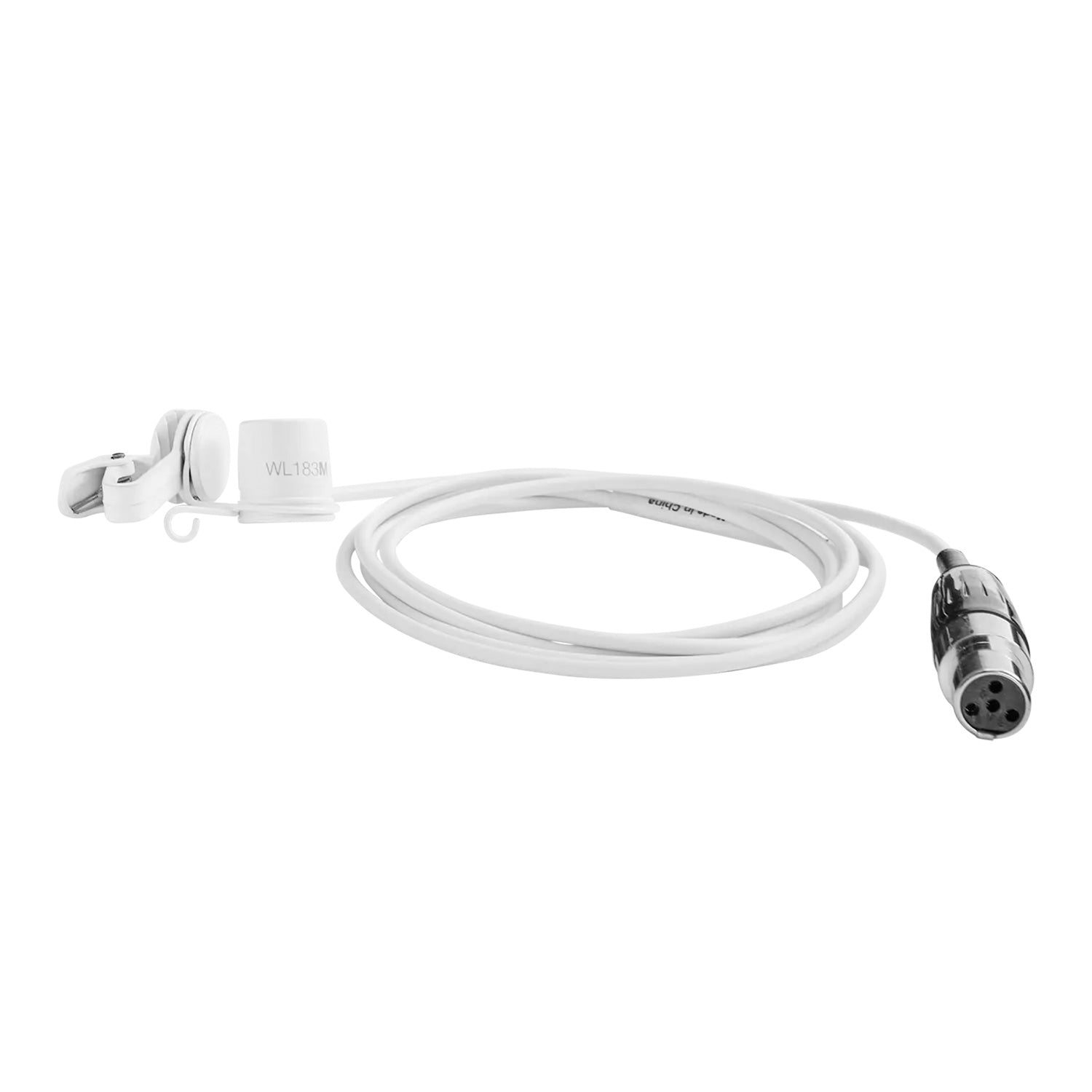

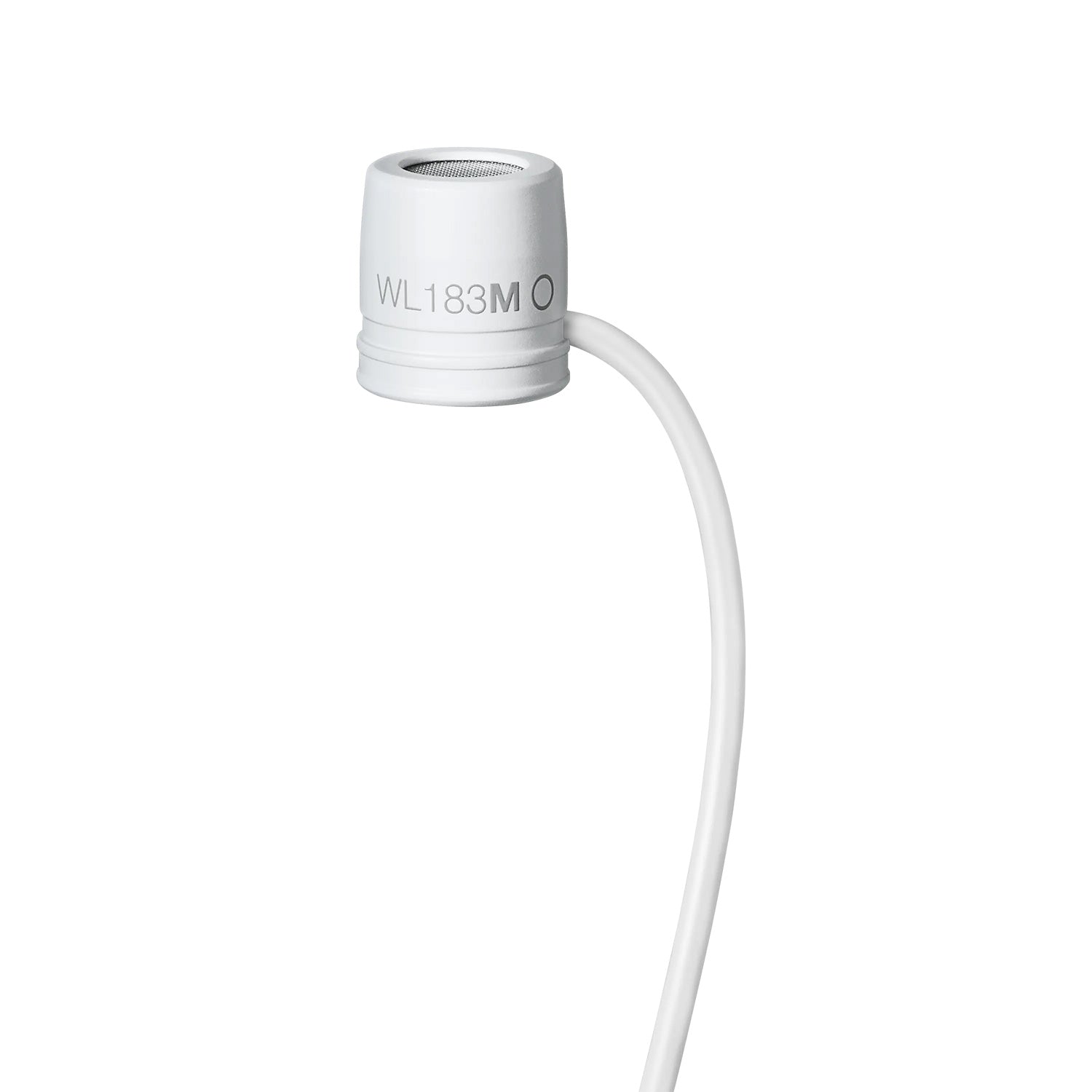

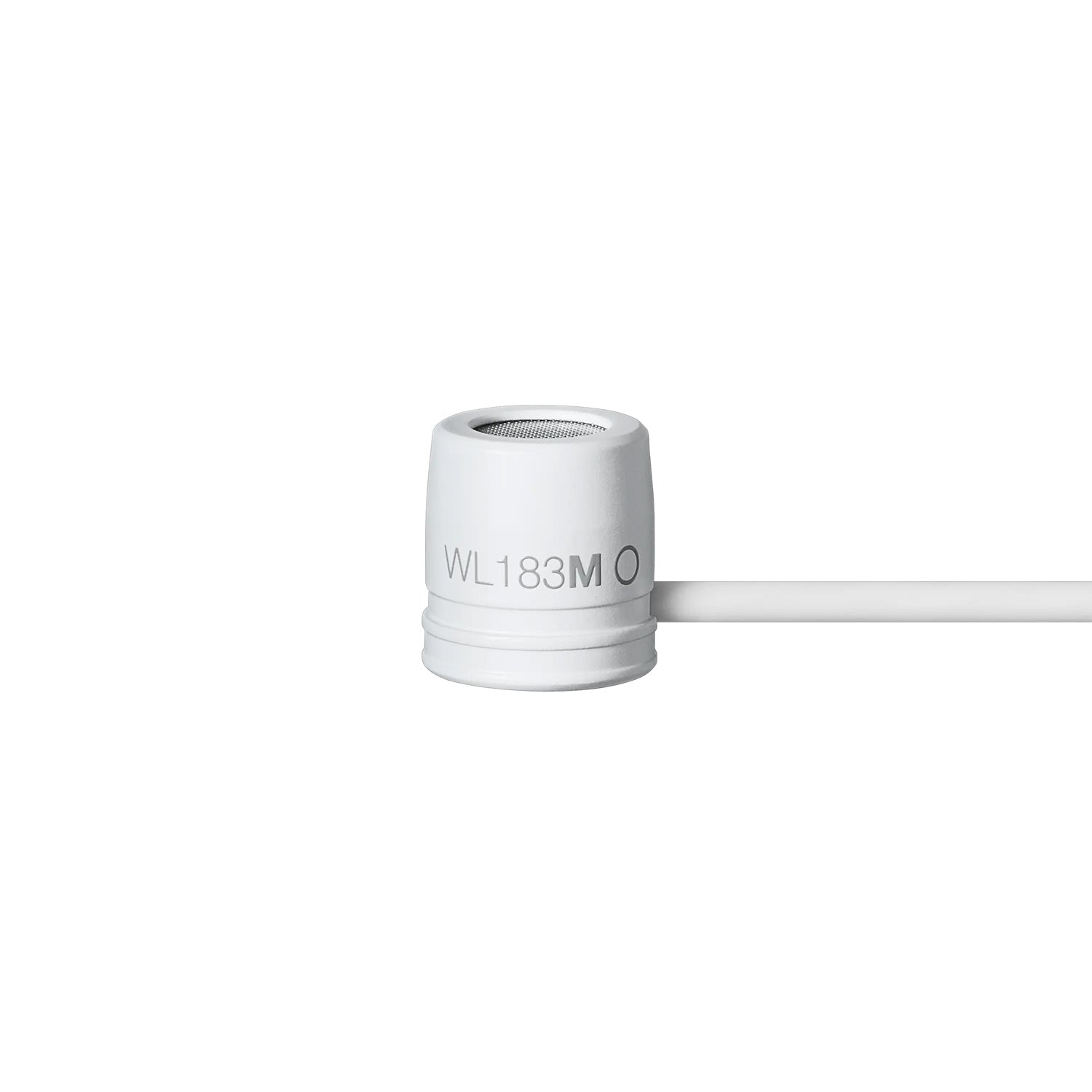

Shure WL183m are professional low-profile lavalier microphones for use with compatible wireless bodypack transmitters. 8 mm shorter than their predecessors, these lavaliers deliver full and accurate sound quality with an improved presence response that reproduces crystal clear vocals. For flexible placement on speakers, presenters, and performers, each lavalier is available in either black or white with LEMO or TA4F connector options, and the innovative tie clip can be rotated in 90° intervals for accurate positioning. They include a snap-fit windscreen, single tie clip, and zippered bag for storage and transport.
Features:
- Professional low-profile lavalier condenser microphones
- Omnidirectional polar pattern
- 8 mm shorter than original WL18X series
- Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to original WL18X series
- Available in either black or white colors to suit various situations
- Available in either TA4F or LEMO connector options

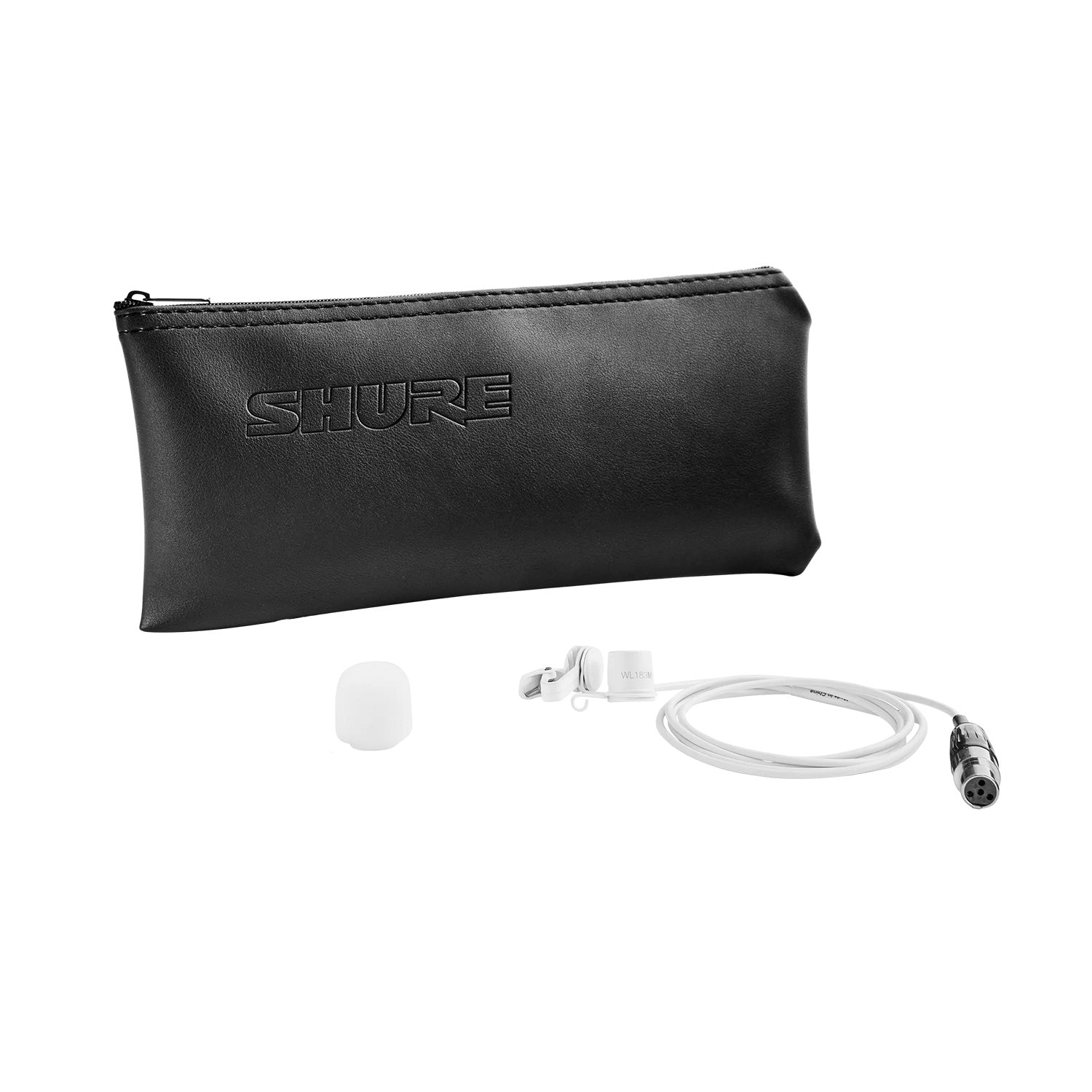

- Ships with lavalier, tie clip, snap-fit foam windscreen, and zippered storage bag
| Microphone Capsule | Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 70 Hz Ð 20 kHz |
| Sensitivity 1 Pa = 94 dB SPL |
-44.0 dBV/Pa (TA4F) -39.0 dBV/Pa (LEMO) |
| Self-Noise A-Weighted, Equivalent Acoustical |
20 dB SPL (TA4F) 22 dB SPL (LEMO) |
| Signal-to-Noise Ratio (Using RPM400 Preamp) |
74.1 dB (TA4F) 72.0 dB (LEMO) |
| Maximum SPL (1% THD) |
141 dB SPL (TA4F) 133.5 dB SPL (LEMO) |
| Dynamic Range | 121 DB (TA4F) 111.5 dB (LEMO) |
| Microphone Current Draw | 140-240 _A |
| Bias Voltage Recommended Operating Voltage |
5 VDC Bias |
| Polarity | Positive pressure produces positive voltage on pin 3 with respect to pin 1 |
| Housing | Aluminum Alloy |
| Cable Diameter | 2.2 mm |
| Cable Length | 48.5" (1.23 m) |
| Net Weight w/Cable | 20.0 g (.71 oz) |
| Capsule Dimensions (L x D) | 13.55 mm x 12.74 mm |
| Furnished Accessories | Single Tie Clip Snap-fit Windscreen Zippered Storage Bag |
Shure WL183m are professional low-profile lavalier microphones for use with compatible wireless bodypack transmitters. 8 mm shorter than their predecessors, these lavaliers deliver full and accurate sound quality with an improved presence response that reproduces crystal clear vocals. For flexible placement on speakers, presenters, and performers, each lavalier is available in either black or white with LEMO or TA4F connector options, and the innovative tie clip can be rotated in 90° intervals for accurate positioning. They include a snap-fit windscreen, single tie clip, and zippered bag for storage and transport.
Features:
- Professional low-profile lavalier condenser microphones
- Omnidirectional polar pattern
- 8 mm shorter than original WL18X series
- Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to original WL18X series
- Available in either black or white colors to suit various situations
- Available in either TA4F or LEMO connector options
- Ships with lavalier, tie clip, snap-fit foam windscreen, and zippered storage bag
| Microphone Capsule | Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 70 Hz Ð 20 kHz |
| Sensitivity 1 Pa = 94 dB SPL |
-44.0 dBV/Pa (TA4F) -39.0 dBV/Pa (LEMO) |
| Self-Noise A-Weighted, Equivalent Acoustical |
20 dB SPL (TA4F) 22 dB SPL (LEMO) |
| Signal-to-Noise Ratio (Using RPM400 Preamp) |
74.1 dB (TA4F) 72.0 dB (LEMO) |
| Maximum SPL (1% THD) |
141 dB SPL (TA4F) 133.5 dB SPL (LEMO) |
| Dynamic Range | 121 DB (TA4F) 111.5 dB (LEMO) |
| Microphone Current Draw | 140-240 _A |
| Bias Voltage Recommended Operating Voltage |
5 VDC Bias |
| Polarity | Positive pressure produces positive voltage on pin 3 with respect to pin 1 |
| Housing | Aluminum Alloy |
| Cable Diameter | 2.2 mm |
| Cable Length | 48.5" (1.23 m) |
| Net Weight w/Cable | 20.0 g (.71 oz) |
| Capsule Dimensions (L x D) | 13.55 mm x 12.74 mm |
| Furnished Accessories | Single Tie Clip Snap-fit Windscreen Zippered Storage Bag |
