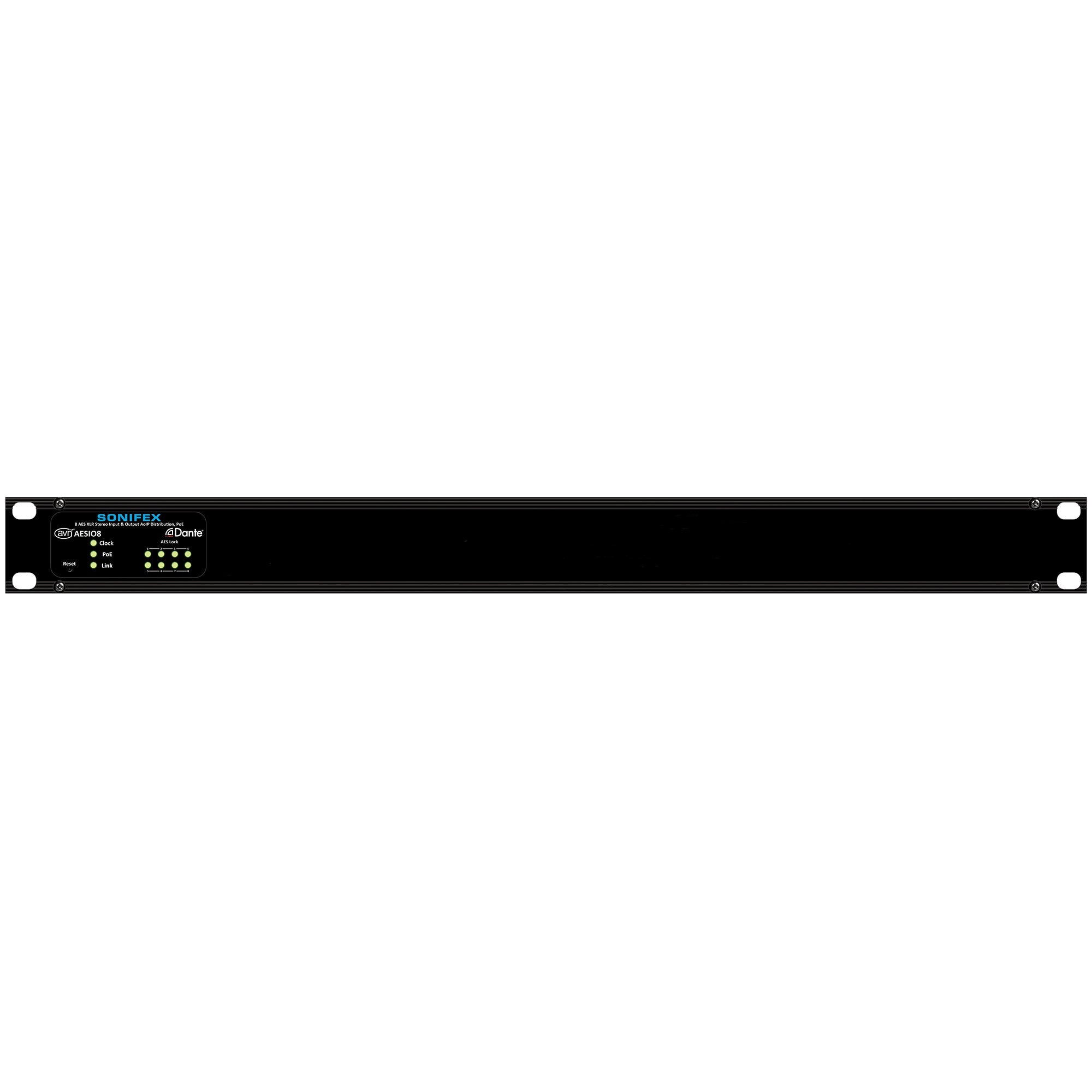

Sonifex AVN-AESIO8 8 AES3 Input, 8 AES3 Output Dante Interface, PoE


  • Dale #:

    SONF-AVNAESIO8
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AVN-AESIO8 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante sys... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AVN-AESIO8 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. A valid input signal is confirmed by front panel AES3 lock LEDs for each input. All outputs follow the Dante system sample rate.

Features:

  • 8 x balanced digital stereo AES3 inputs on XLR, supporting input rates of 32kHz - 192kHz.
  • Sample rate conversion on physical inputs to Dante system sample rate.
  • 8 x balanced digital stereo AES3 outputs on XLR, output rate matches Dante system sample rate.
  • 1 x RJ45 Dante connector (1Gb/s Ethernet Port).
  • PoE, Link, and Clock LED status indicators.
  • AES3 Lock LED status indicators for each input.
  • Configuration using Dante Controller.
  • AES67 operation & Dante Domain Manager compliant.
  • Powered by PoE.
  • 1U 19" rack-mount form factor.

This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up done via the standard Dante Controller software and power via PoE (Power Over Ethernet).

All digital AES3 inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link and Clock.

(The AVN-AESIO8R is available with dual redundant Ethernet ports).

More +

Product Specs

Network and AoIP
AoIP StandardDante
Number of Channels16 receive, 16 transmit
Number of Streams16 receive, 16 transmit
Sample Rate44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
FormatLinear PCM, 16, 24 or 32 bit
AES67 SupportYes
Connectivity1 x RJ45
Speed1Gbps or 100Mbps
Dante Domain Manager ReadyYes
AES3 Input Specifications
Input Impedance110? balanced
Support Input Rates32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (sample rate converted to Dante system sample rate).
Signal LevelAES3-2009 compliant
Bit DepthUp to 24bits
AES3 Output Specifications
Output Impedance110? balanced
Support Output Rates44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (set as per Dante system sample rate).
Signal LevelAES3-2009 compliant
Bit Depth24 bits
Balanced Line Input XLR PinoutPinFunction
1Chassis Ground
2Input Positive
3Input Negative
Balanced Line Output XLR PinoutPinFunction
1Chassis Ground
2Output Positive
3Output Negative
PoE Power
Standard802.3af
Class0
PD Power Range0.44 W to 12.94 W
Typical PSE Power Usage6 W
Max PSE Power Usage15.4 W
Physical Specification
Dimensions (Raw)48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19” (W) x 4.3” (D) x 1.7” (H)
WeightNett- 1.1kg Gross- 1.6kg
Nett- 2.4lbs Gross- 3.5lbs
