Sonifex AVN-AO16 16 Output Dante Interface, PoE
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AVN-AO16 audio converter and interface converts up to sixteen analogue outputs from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).
Features:
- 16 x balanced analogue outputs on XLR.
- Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
- 1 x RJ45 Dante connector (1 Gb/s Ethernet Port).
- PoE, Link, and Clock LED status indicators.
- Configuration using Dante Controller.
- AES67 operation & Dante Domain Manager compliant.
- Powered by PoE.
- 1U 19" rack-mount form factor.

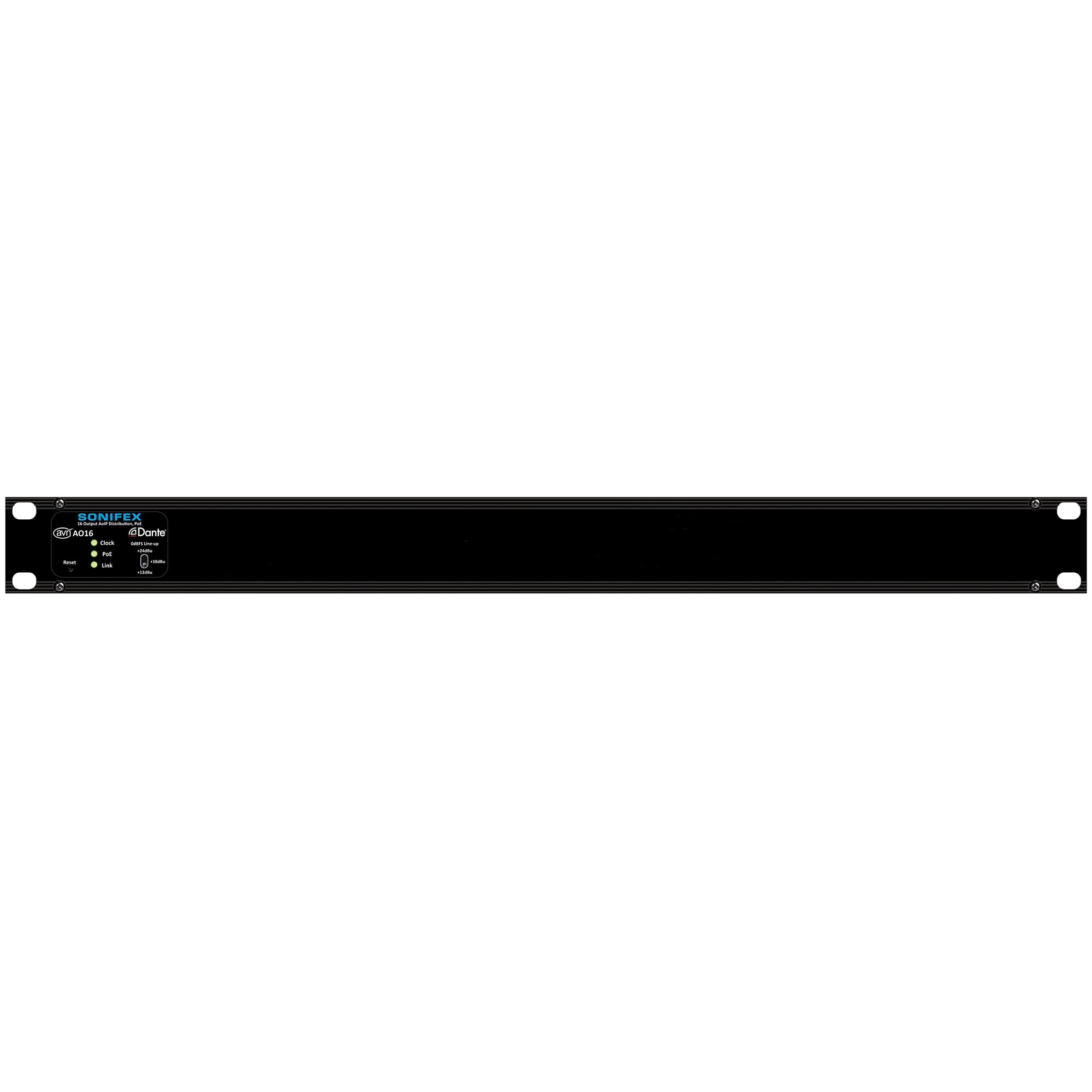

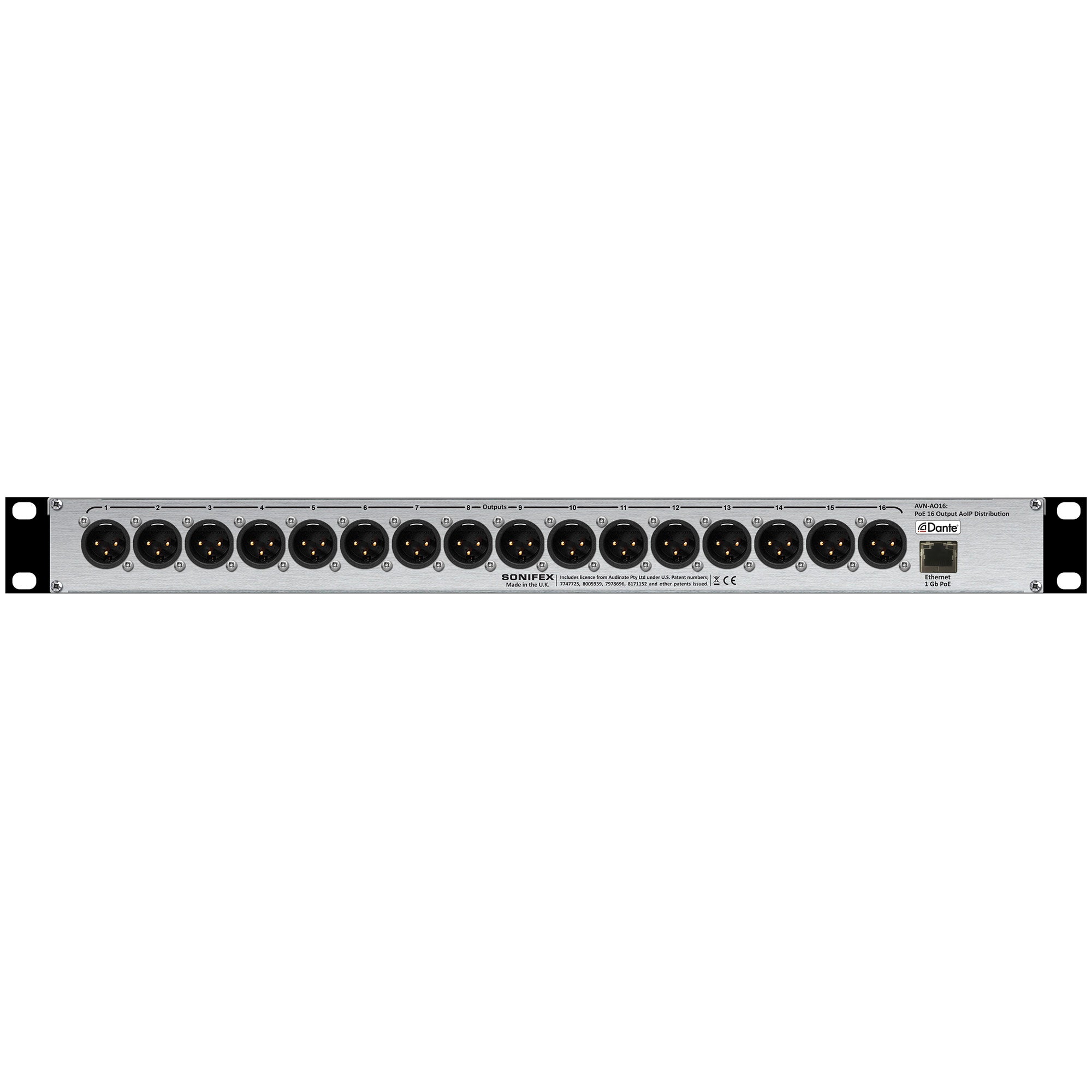

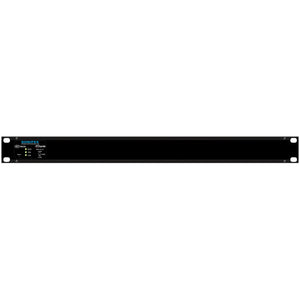

All analogue outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.
(The AVN-AO16R is available with dual redundant Ethernet ports).
| Network and AoIP | ||
| AoIP Standard | Dante | |
| Number of Channels | 16 receive | |
| Number of Streams | 16 receive | |
| Sample Rate | 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz | |
| Format | Linear PCM, 16, 24 or 32 bit | |
| AES67 Support | Yes | |
| Connectivity | 1 x RJ45 | |
| Speed | 1Gbps or 100Mbps | |
| Dante Domain Manager Ready | Yes | |
| Audio Output Performance Specifications | ||
| Parameter | Line Output | |
| Input Impedance | <50? balanced | |
| 0dBFS line-up | User Selectable +12dBu/+18dBu/+24dBu balanced | |
| Frequency Response | 20Hz to 20kHz, +0/-0.2dB | |
| THD+N | <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW | |
| Noise | -107dBFS, 20kHz BW | |
| Crosstalk | <100dB | |
| Balanced Line Output XLR Pinout | Pin | Function |
| 1 | Chassis Ground/Screen | |
| 2 | Output Phase/Positive | |
| 3 | Output Non-Phase/Negative | |
| PoE Power | ||
| Standard | 802.3af | |
| Class | 0 | |
| PD Power Range | 0.44 W to 12.94 W | |
| Typical PSE Power Usage | 76 W | |
| Max PSE Power Usage | 15.4 W | |
| Physical Specification | ||
| Dimensions (Raw) | 48cm (W) x 11cm (D) x 4.3cm (H)(1U) 19Ó (W) x 4.3Ó (D) x 1.7Ó (H) | |
| Weight | Nett- 1.1kg Gross- 1.6kg Nett- 2.4lbs Gross- 3.5lbs | |
